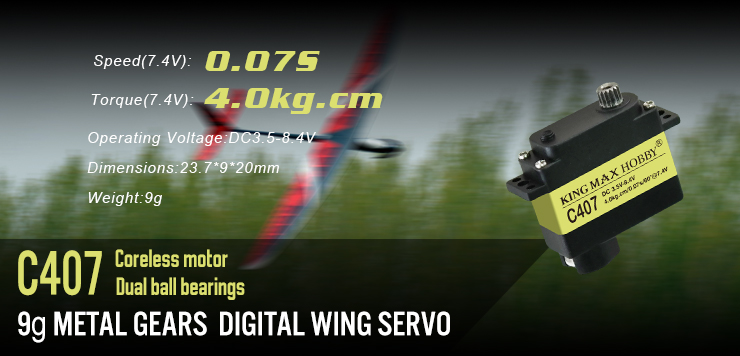

FEATURE:
— High performance digital mini servo
— High-precision metal gear
— High quality coreless motor
— Dual ball bearings
— Super long life
SPECIFICATIONS:
Operating Speed(3.5V):0.15sec/60degrees
Operating Speed(5.0V):0.10sec/60degrees
Operating Speed(6.0V):0.08sec/60degrees
Operating Speed(7.4V):0.07sec/60degrees
Operating Speed(8.4V):0.06sec/60degrees
Stall torque(7.4V):4.0kg.cm(52.78oz/in)
Rated working torque(3.5V):0.6kg.cm(8.33oz/in)
Rated working torque(5.0V):1.0kg.cm(13.89oz/in)
Rated working torque(6.0V):1.2kg.cm(16.66oz/in)
Rated working torque(7.4V):1.4kg.cm(19.44oz/in)
Rated working torque(8.4V):1.7kg.cm(23.61oz/in)

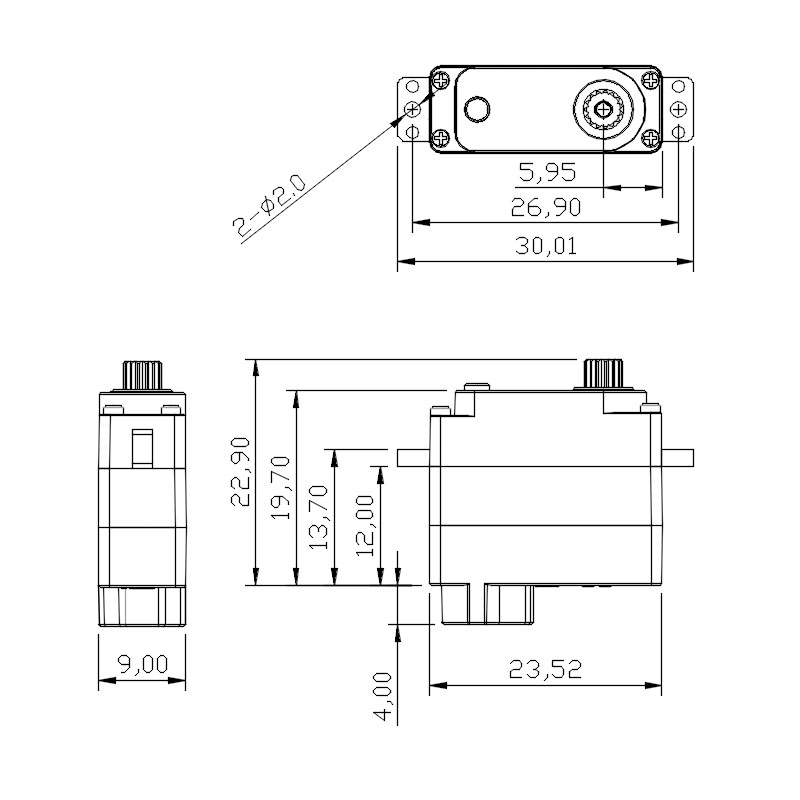

Dimensions(L*W*H):23.7*9*20mm/0.92X0.35X0.78in
Weight:9g(0.31oz)
Connector Wire Length:JR120mm(4.23in)
Optional Accessories:

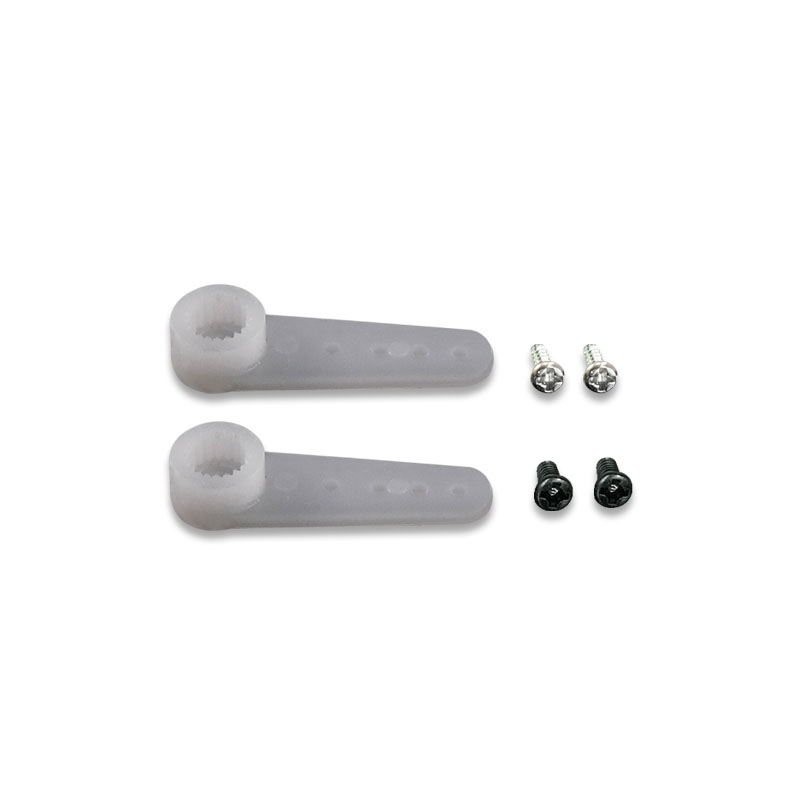

C407-001:Offered accessories
C407-002:1set of gearset, including gears, shafts(not include motor gear)
