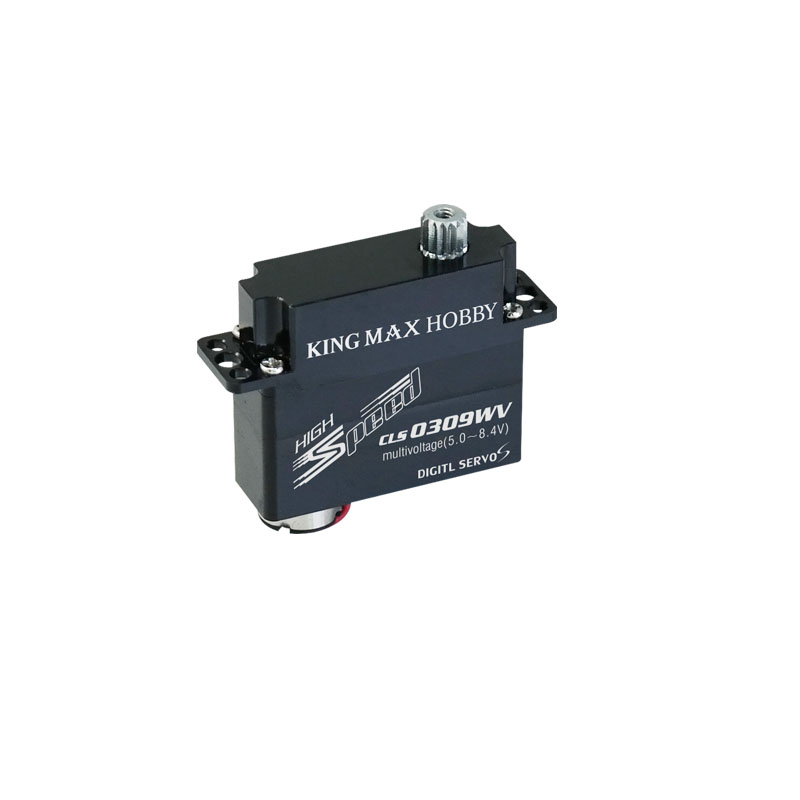

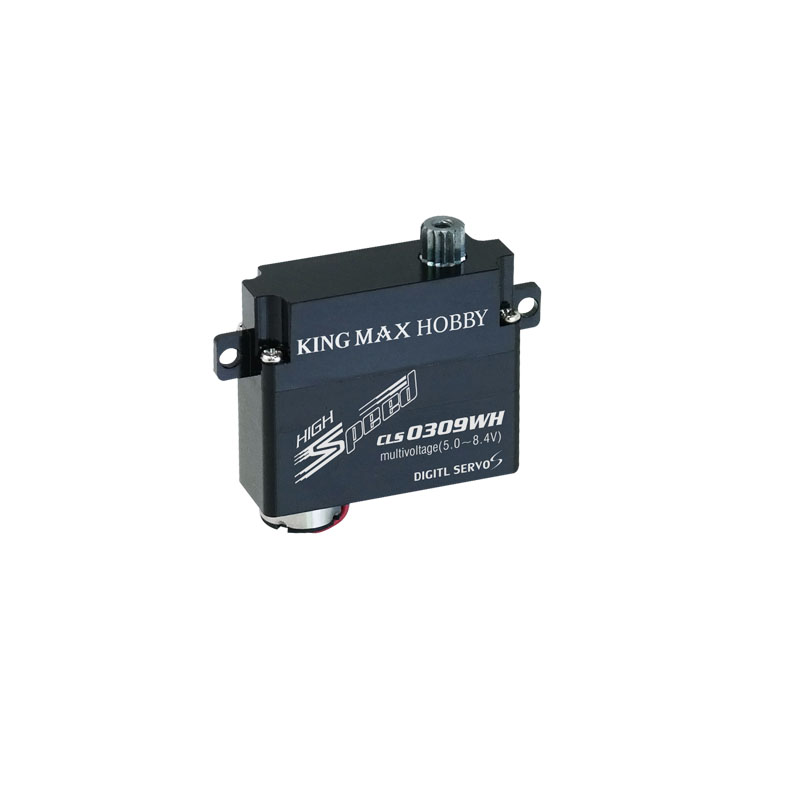

KingMax CLS0309W–8.6g 4.5kg,digital metal gears micro wing servos

FEATURE:

— High performance,micro digital wing servo

— High precision matal gears(copper+titanium)

— High quality coreless motor

— Full CNC aluminium hulls and structure

— 8mm ultra-thin thickness

— Dual ball bearings

SPECIFICATIONS:

Operating Speed(3.5V):0.16sec/60degrees

Operating Speed(5.0V):0.10sec/60degrees

Operating Speed(6.0V):0.08sec/60degrees

Operating Speed(7.4V):0.07sec/60degrees

Operating Speed(8.4V):0.06sec/60degrees

Stall Torque(3.5V):2.0kg.cm(27.78oz/in)

Stall Torque(5.0V):3.0kg.cm(41.67oz/in)

Stall Torque(6.0V):4.0kg.cm(55.56oz/in)

Stall Torque(7.4V):4.5kg.cm(62.50oz/in)

Stall Torque(8.4V):5.0kg.cm(69.45oz/in)

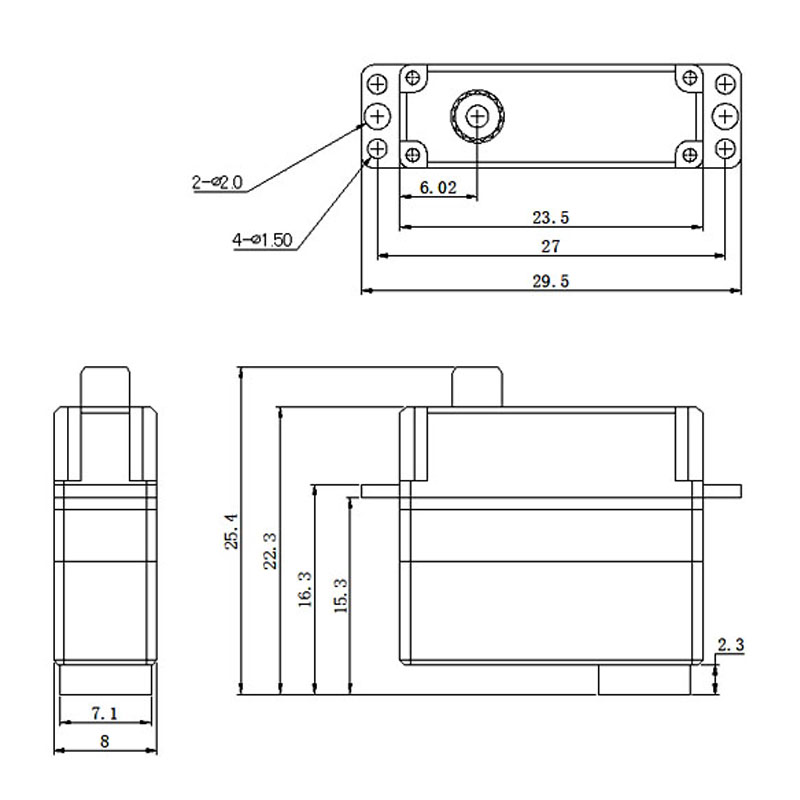

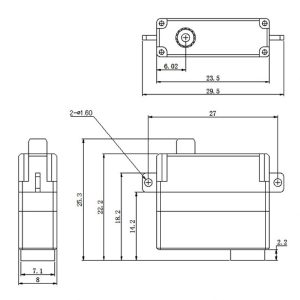

Size:23.5x8x20mm(0.92×0.31×0.78in)

Weight:8.6g(0.30oz)

Connector Wire Length: 120mm(4.68in)

Optional Accessories:

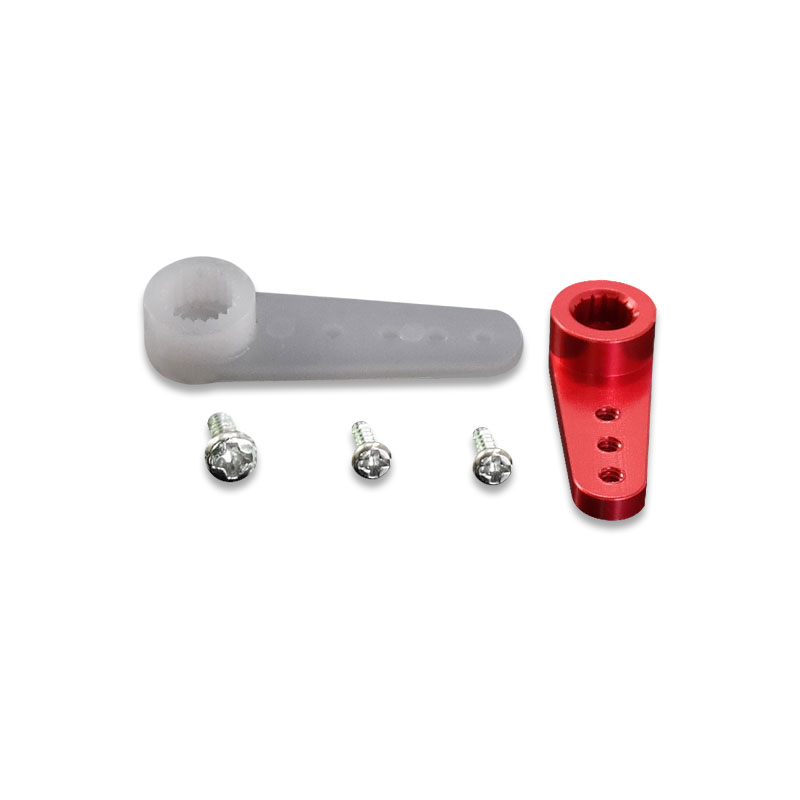

CLS0309W-001:Offered accessories

CLS0309W-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
