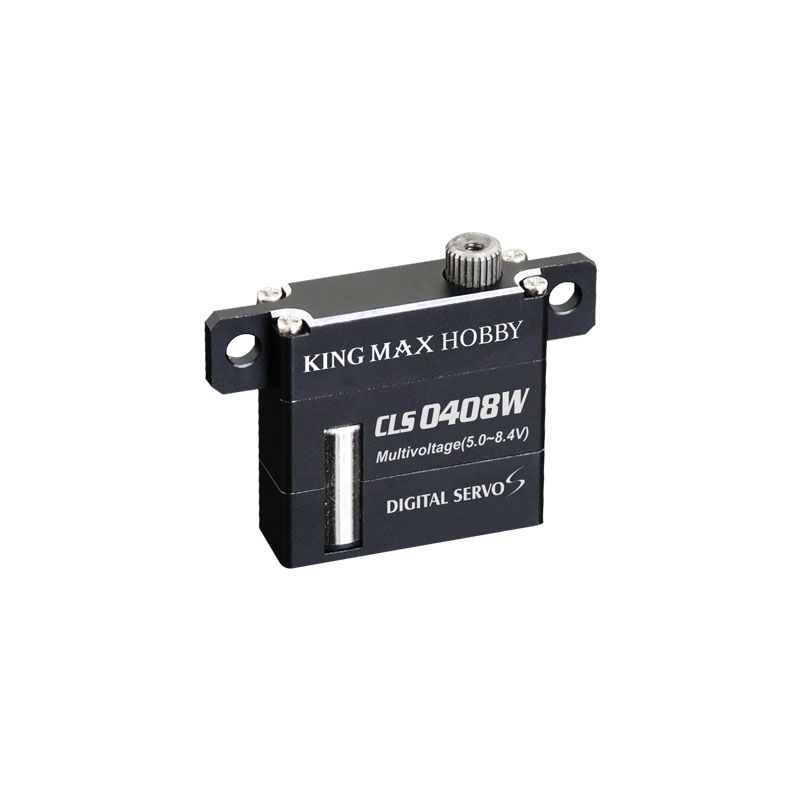

KingMax CLS0408W–16g 4.0kg.cm,digital,metal gears wing servos

FEATURE:

— High performance, digital multivoltage wing servo

— High-precision metal gears with hard anodizing

— Full CNC aluminium hulls and structure

— High quality coreless motor

–8mm ultra-thin thickness

— Dual ball bearings

SPECIFICATIONS:

Operating Speed (5.0V): 0.13sec/60 degrees

Operating Speed (6.0V): 0.10sec/60 degrees

Operating Speed (7.4V): 0.08sec/60 degrees

Operating Speed (8.4V): 0.07sec/60 degrees

Stall Torque (5.0V): 2.8kg.cm (38.89oz/in)

Stall Torque (6.0V): 3.2kg.cm (44.44oz/in)

Stall Torque (7.4V): 4.0kg.cm (55.56oz/in)

Stall Torque (8.4V): 4.5kg.cm (62.50oz/in)

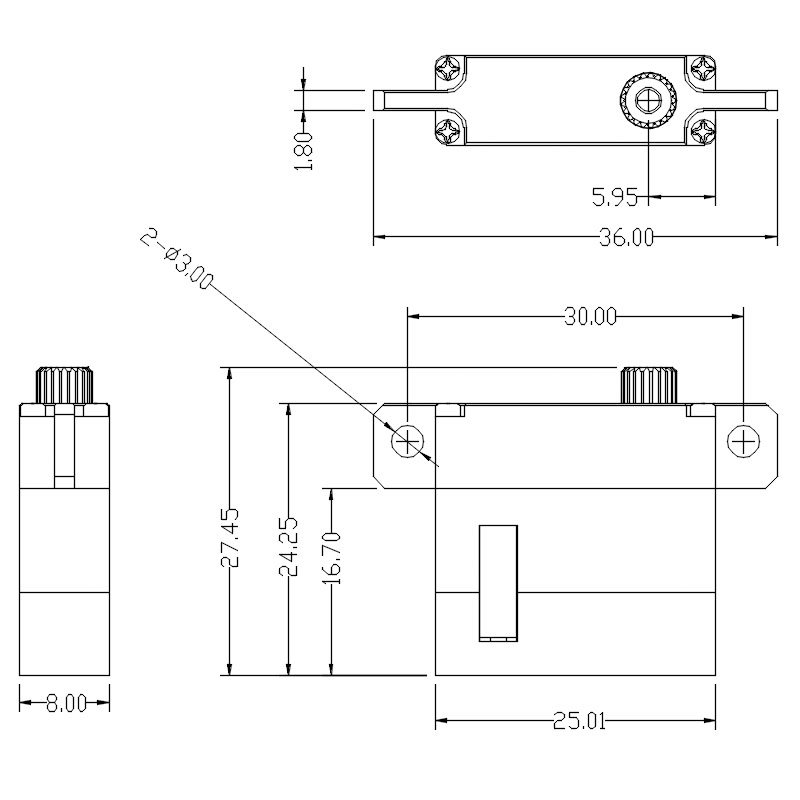

Dimensions: 25X8X24.8mm/0.97X0.31X0.96in

Weight: 16.7g(0.58oz)

Connector Wire Length: JR300 mm (11.81in)

Packing Detail:

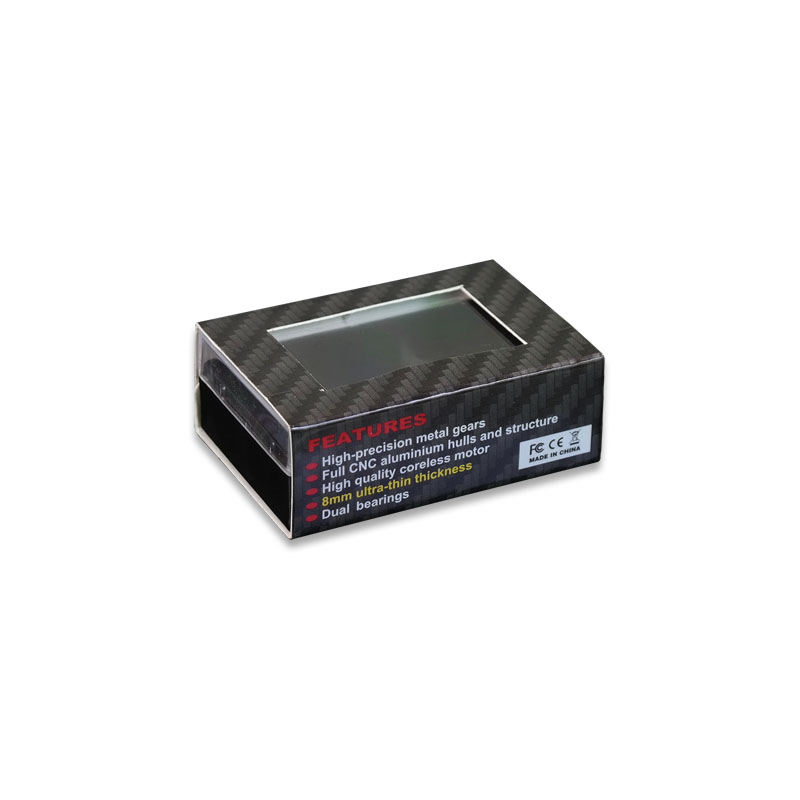

Transparent plastic box size: 83.5mmx63.5mmx37.5mm   weight: 62.5g

Carton box   size: 43×26.5×20.5cm   100sets/1CTN   Gross weight:6.2kg

Optional Accessories:

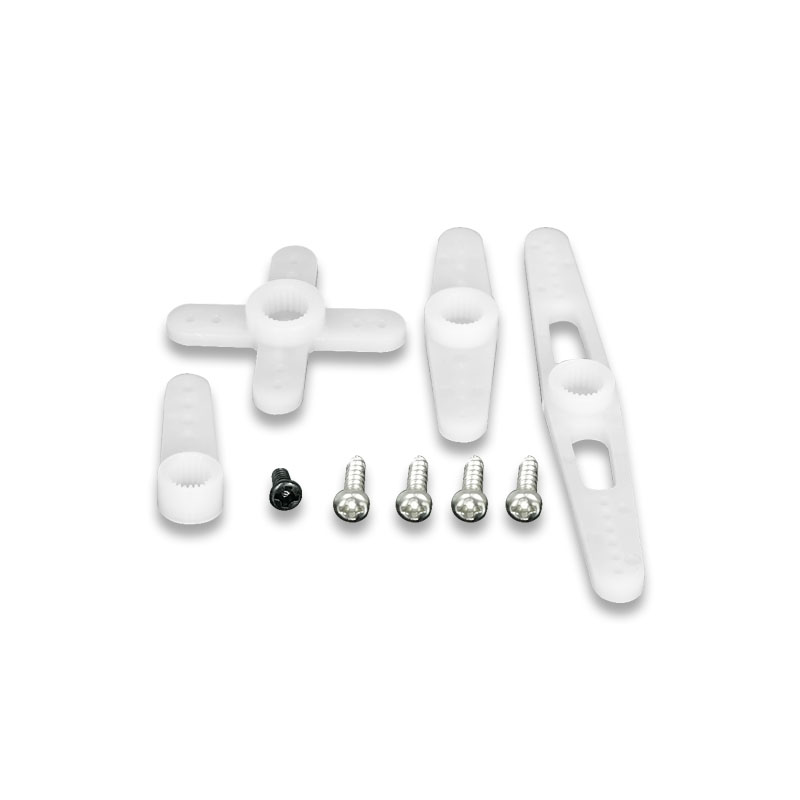

CLS0408W-001:Offered accessories

CLS0408W-002:1set of gearset(need to pay), including gears, shafts and 2 ball bearings(not include motor gear)
