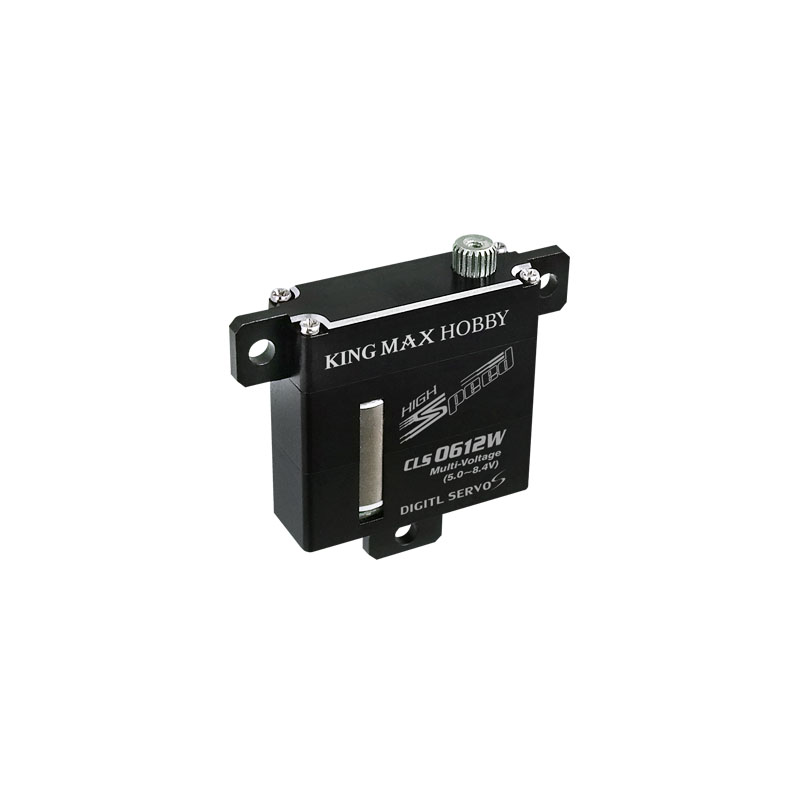

KingMax CLS0612W–23g 7kg.cm,digital wing servos

FEATURE:

— High performance, digital high voltage wing servo

— High-precision metal gears with hard anodizing

— Full CNC aluminium hulls and structure

— High quality coreless motor

— Dual ball bearings

SPECIFICATIONS:

Operating Speed (5.0V): 0.14sec/60 degrees

Operating Speed (6.0V): 0.12sec/60 degrees

Operating Speed (7.4V): 0.10sec/60 degrees

Operating Speed (8.4V): 0.09sec/60 degrees

Stall Torque (5.0V): 5.4kg.cm (75.01oz/in)

Stall Torque (6.0V): 6.2kg.cm (86.12oz/in)

Stall Torque (7.4V): 7.5kg.cm (104.18oz/in)

Stall Torque (8.4V): 8.5kg.cm (118.07oz/in)

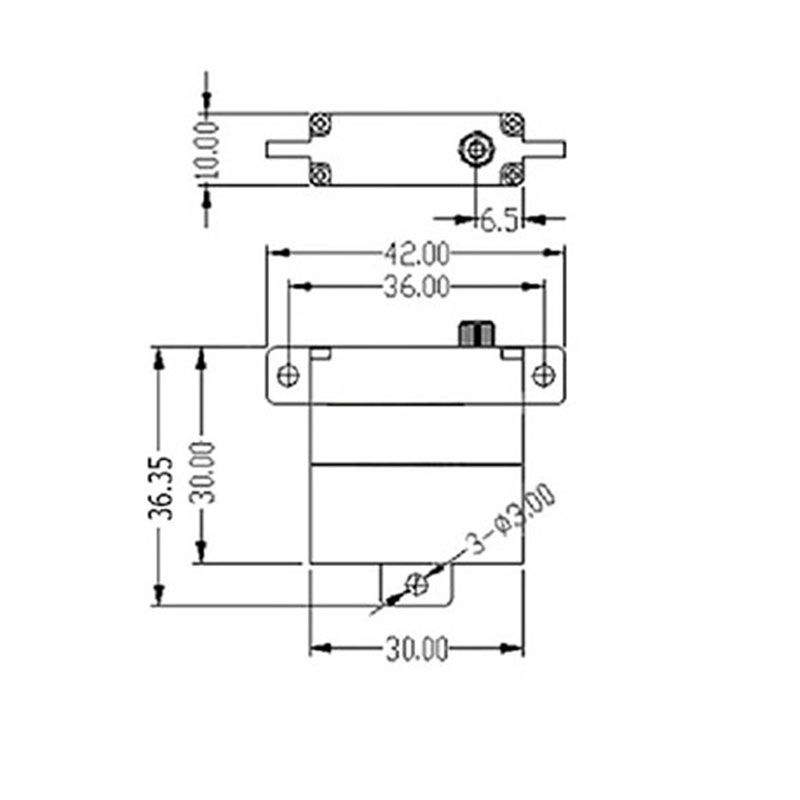

Dimensions: 30X10X30mm /1.17X0.39X1.17in

Weight: 23g (0.81oz)

Connector Wire Length: JR220 mm (8.58in)

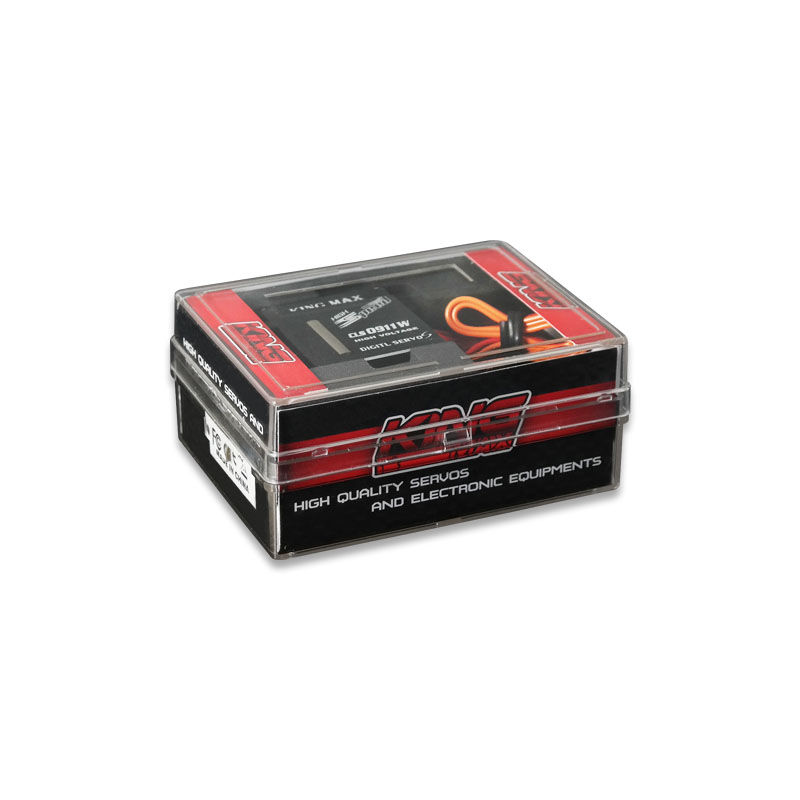

Packing Detail:

Transparent plastic box size: 83.5mmx63.5mmx37.5mm   weight: 69.8g

Carton box   size: 43×26.5×20.5cm   100sets/1CTN   Gross weight:7.43kg

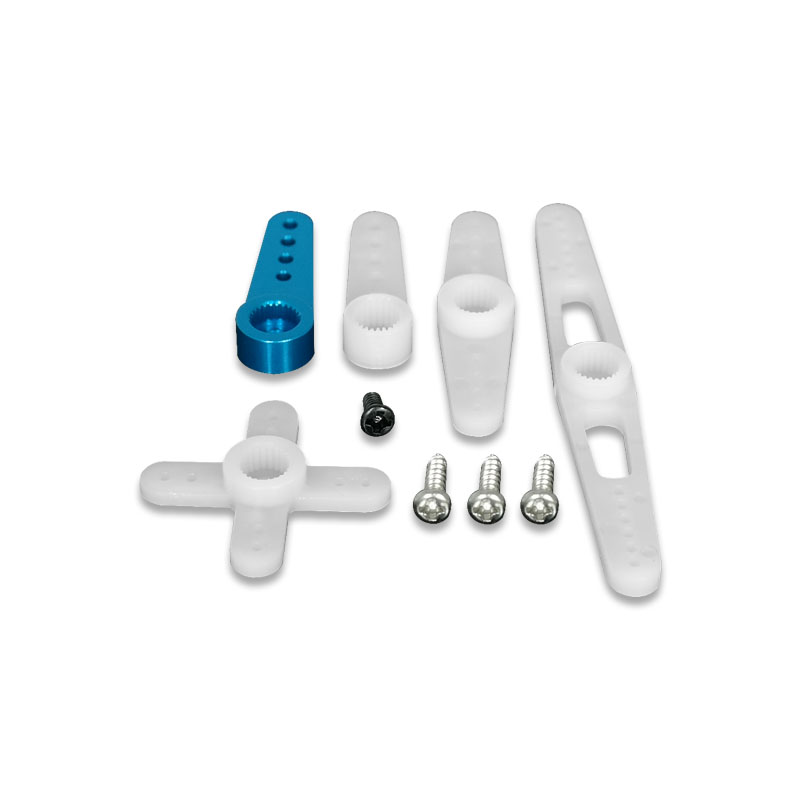

Optional Accessories:

CLS0612W-001:Offered accessories

CLS0612W-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
