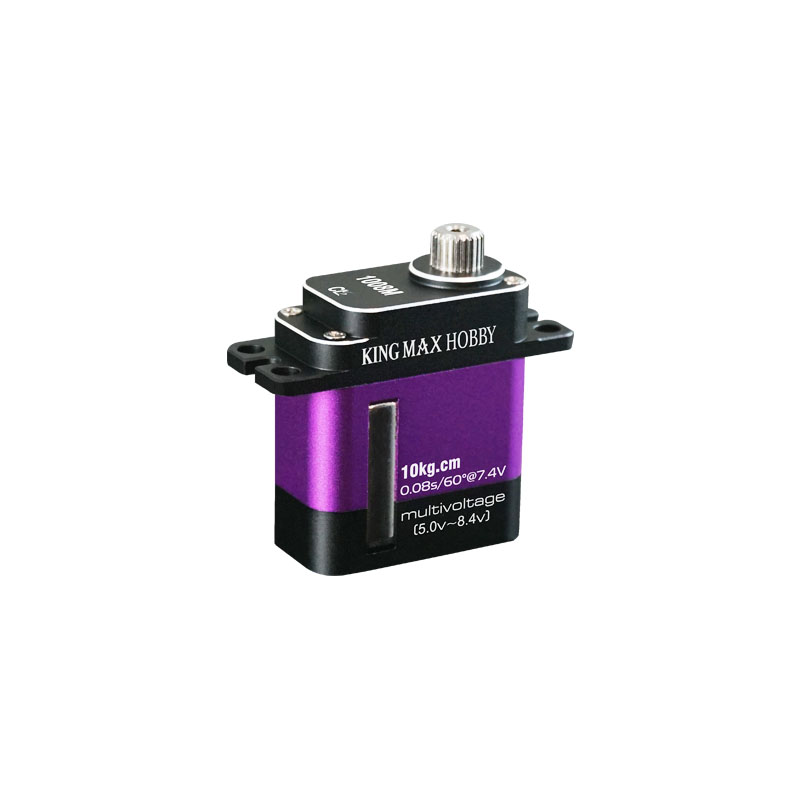

FEATURE:
— Programmable high performance matal gears mini digital servo
— Full CNC aluminium hulls and structure

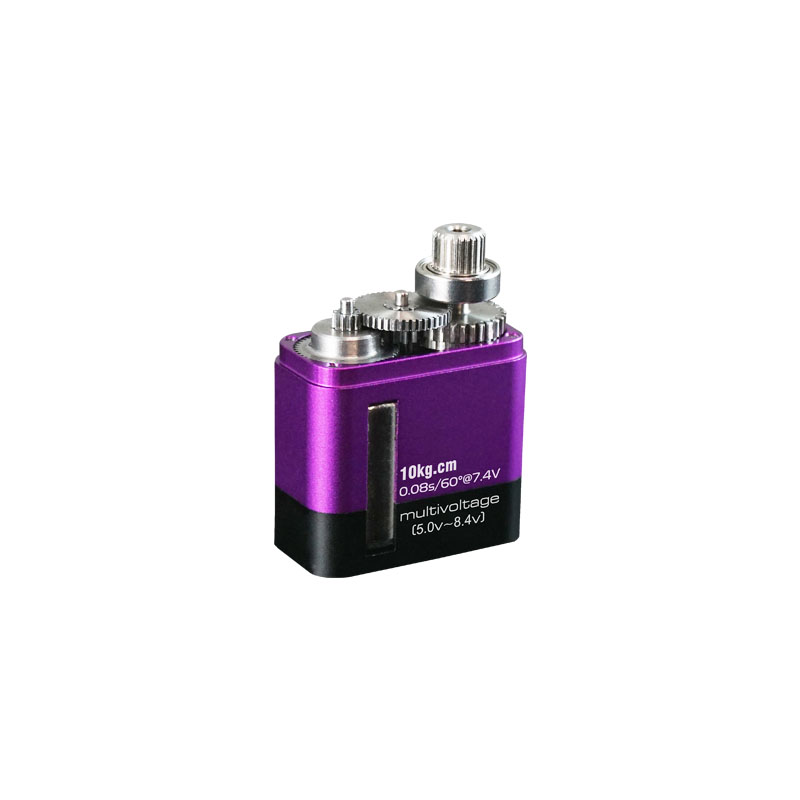

— High-precision steel gears
— High quality coreless motor
— Dual ball bearings
SPECIFICATIONS:
Operating Speed(5.0V):0.11sec/60degrees
Operating Speed(6.0V):0.10sec/60degrees
Operating Speed(7.4V):0.08sec/60degrees
Operating Speed(8.4V):0.07sec/60degrees
Stall torque(7.4V):10.0kg.cm(138.90oz/in)
Maximum working torque(7.4V):5.0kg.cm(69.45oz/in)
Rated working torque(5.0V):3.0kg.cm(41.67oz/in)
Rated working torque(6.0V):3.5kg.cm(48.61oz/in)
Rated working torque(7.4V):3.8kg.cm(52.78oz/in)
Rated working torque(8.4V):4.7kg.cm(65.28oz/in)

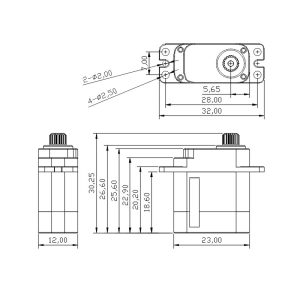

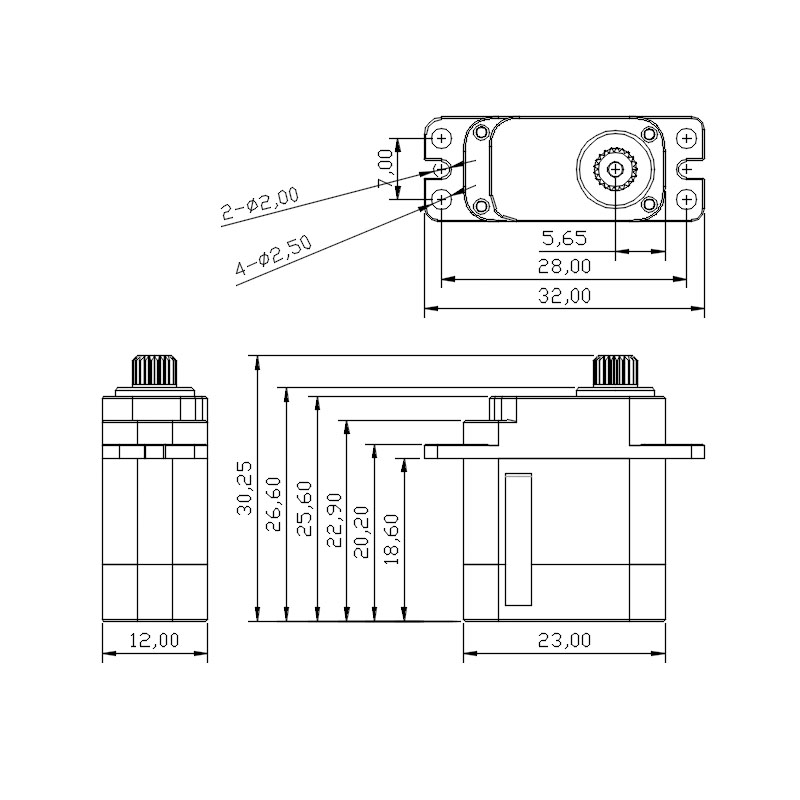

Dimensions:23*12*25.6mm/0.89X0.46X0.99in
Weight:21g(0.74oz)
Connector Wire Length:JR320mm(12.48in)

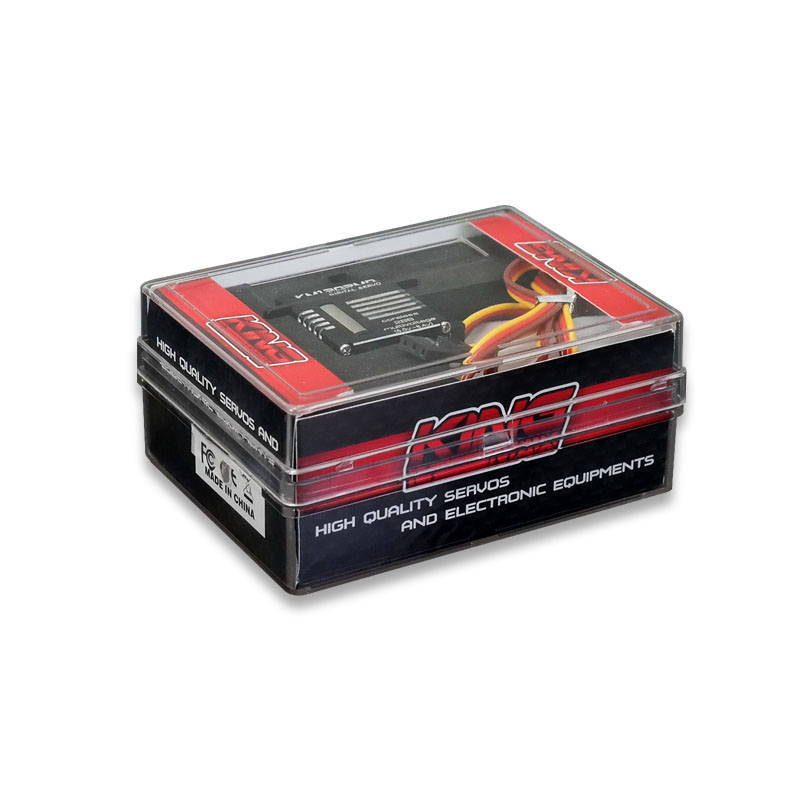

Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 60.3g
Carton box size: 43×26.5×20.5cm 100sets/1CTN Gross weight:6.48kg
Optional Accessories:
CLS1008M-001:Offered accessories
CLS1008M-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
