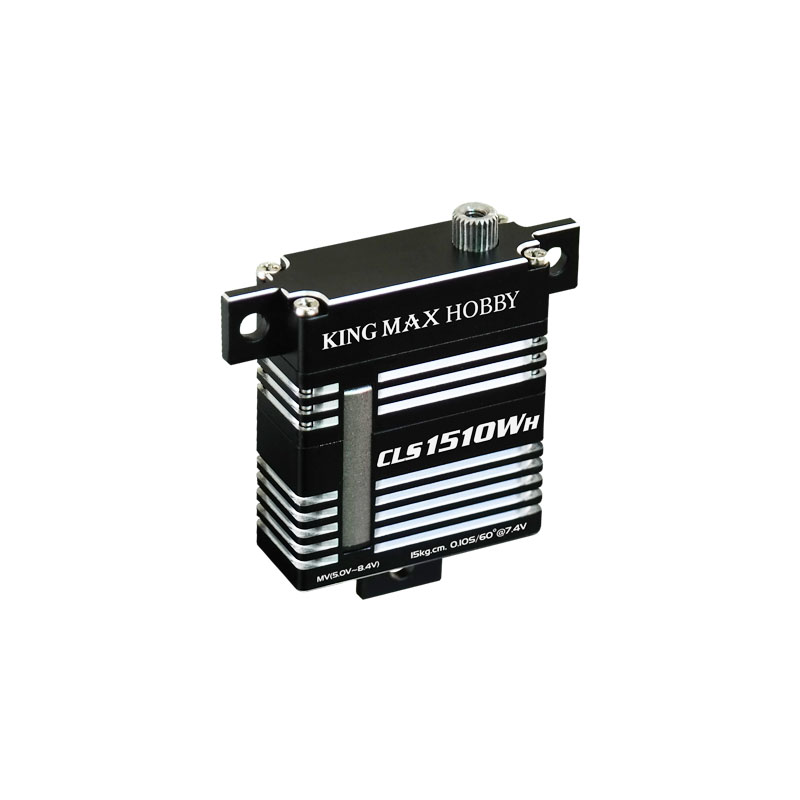

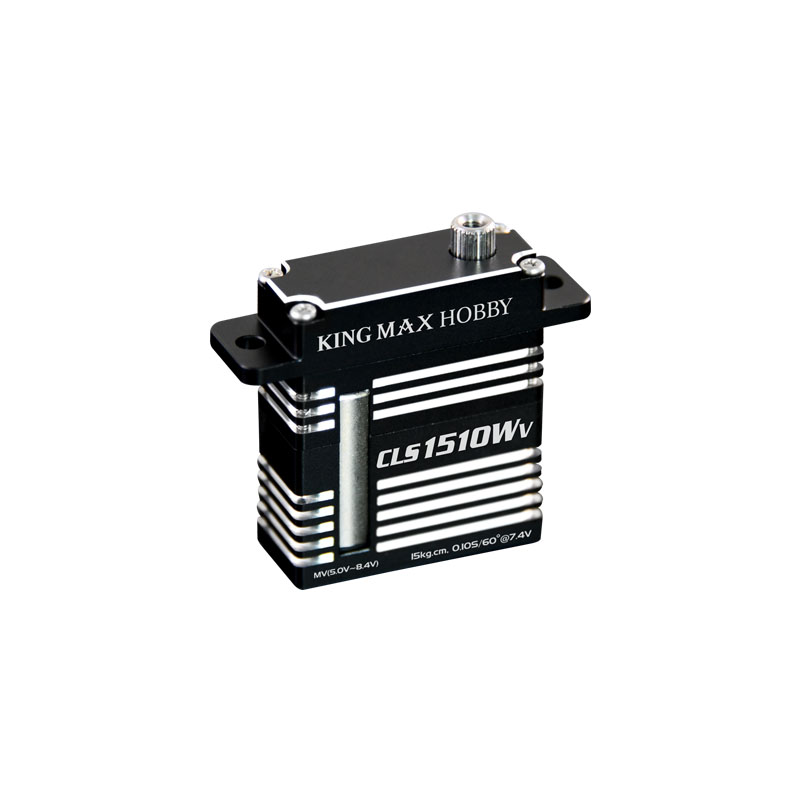

KingMax CLS1510W-33.5g 15.0kg.cm steel gears servos

Full CNC aluminium case, high precision steel gears, high quality digital wing servo

Dead band:2μs default

Working frequence:1520μs / 330hz

Operating Voltage:DC5.0~8.4 V Speed(5.0V):0.16sec/60degrees Speed(6.0V):0.16sec/60degrees Speed(7.4V):0.10sec/60degrees Speed(8.4V):0.09sec/60degrees

Stall torque(7.4V):15.0kg.cm(208.35oz/in)

Max working torque(7.4V):10.0kg.cm(138.9oz/in)

Rated torque(5.0V):4.30kg.cm(59.72oz/in)

Rated torque(6.0V):5.00kg.cm(69.45oz/in)

Rated torque(7.4V):5.60kg.cm(77.78oz/in)

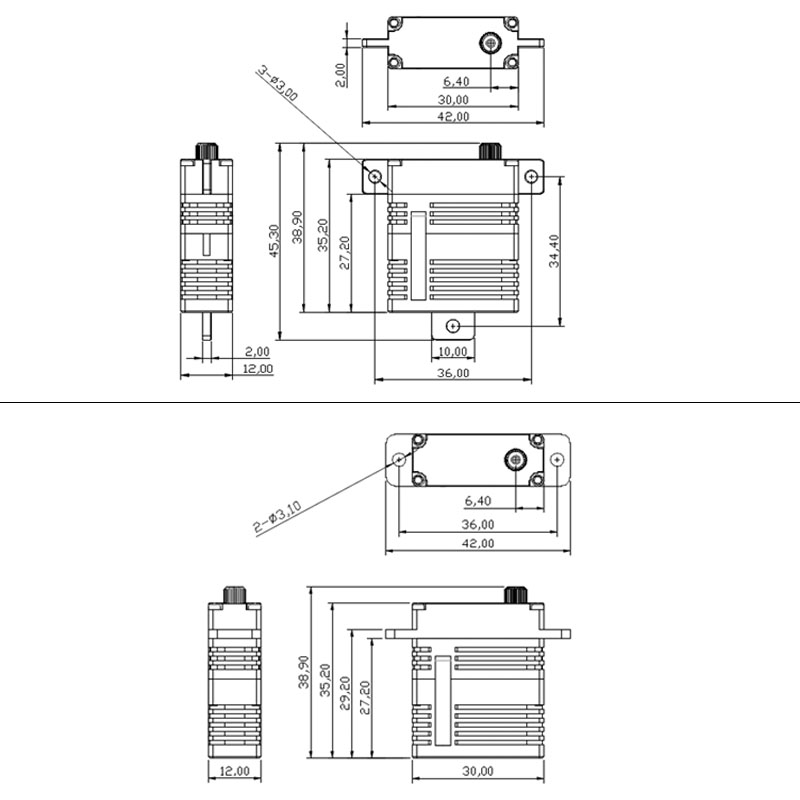

Rated torque(8.4V):6.00kg.cm(83.34oz/in) Dimensions:30*12*35mm/1.17X0.46X1.36in

Weight:33.5g(1.18oz)

Connector Wire Length:JR215mm(8.38in)
