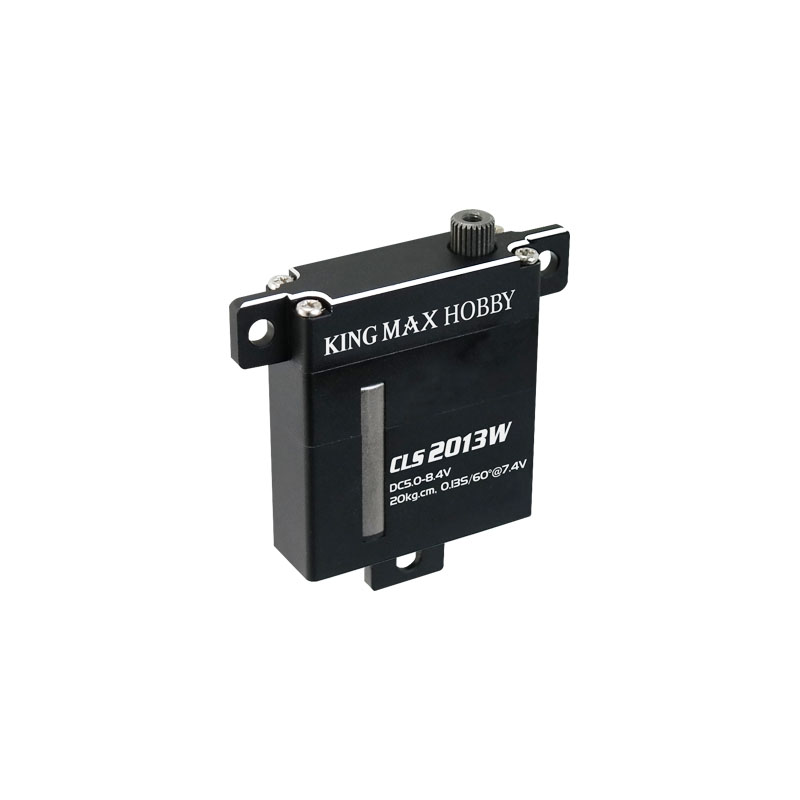

KingMax CLS2013W–28g 20kg.cm,digital,steel gears wing servos

FEATURE:

— High performance, digital high voltage wing servo

— Full CNC aluminium hulls and structure

— High quality coreless motor

— High-precision steel gear

— Dual ball bearings

— Super long life

SPECIFICATIONS:

Operating Speed(5.0V):0.19sec/60degrees

Operating Speed(6.0V):0.16sec/60degrees

Operating Speed(7.4V):0.13sec/60degrees

Operating Speed(8.4V):0.11sec/60degrees

Stall torque(7.4V):20.0kg.cm(277.80oz/in)

Maximum working torque(7.4V):13.0kg.cm(180.57oz/in)

Rated working torque(5.0V):5.70kg.cm(79.17oz/in)

Rated working torque(6.0V):7.80kg.cm(108.34oz/in)

Rated working torque(7.4V):8.80kg.cm(122.23oz/in)

Rated working torque(8.4V):10.8kg.cm(150.01oz/in)

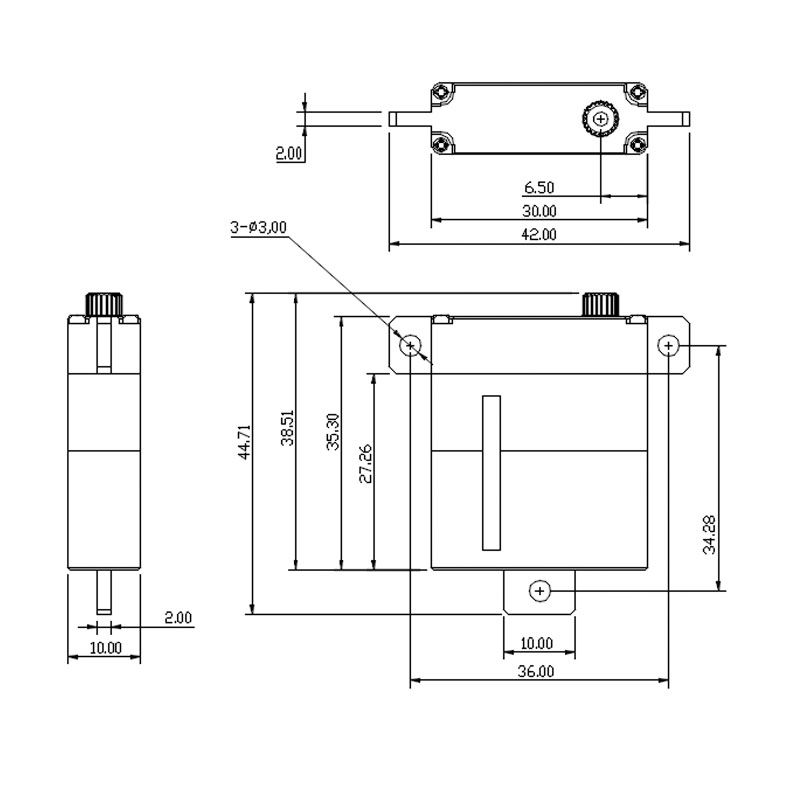

Dimensions(L*W*H):30*10*35.5mm/1.17X0.39X1.38in

Weight:28.2g(0.99oz)

Connector Wire Length:JR185mm(7.22in)

Packing Detail:

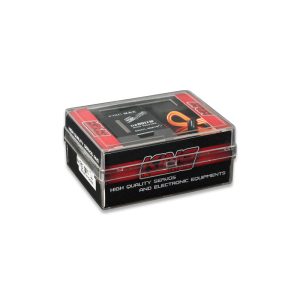

Transparent plastic box size: 83.5mmx63.5mmx37.5mm   weight: 71.6g

Carton box   size: 43×26.5×20.5cm   100sets/1CTN   Gross weight:7.6kg

Optional Accessories:

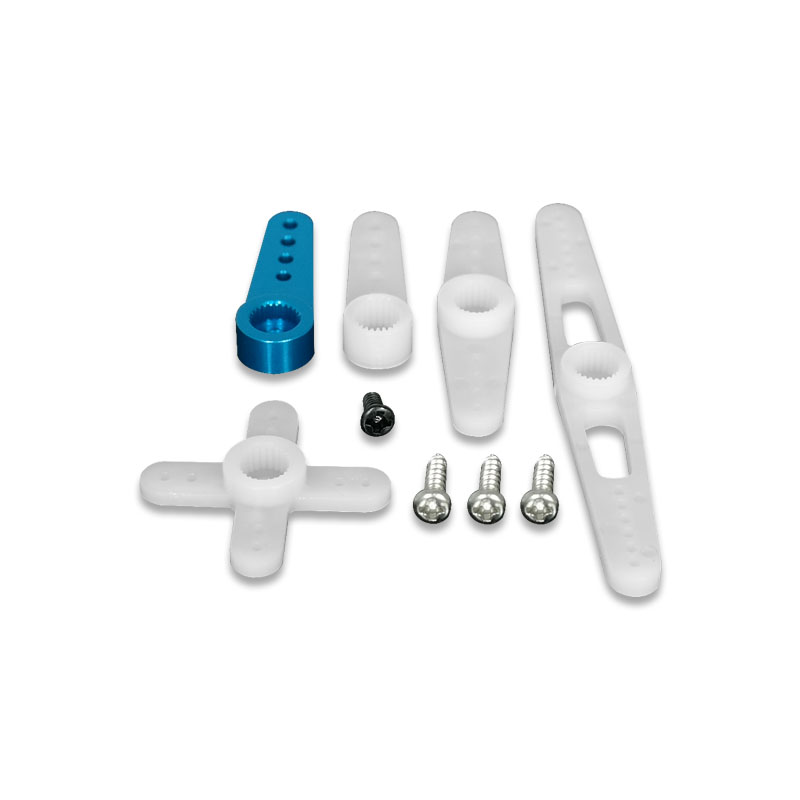

CLS2013W-001:Offered accessories

CLS2013W-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
