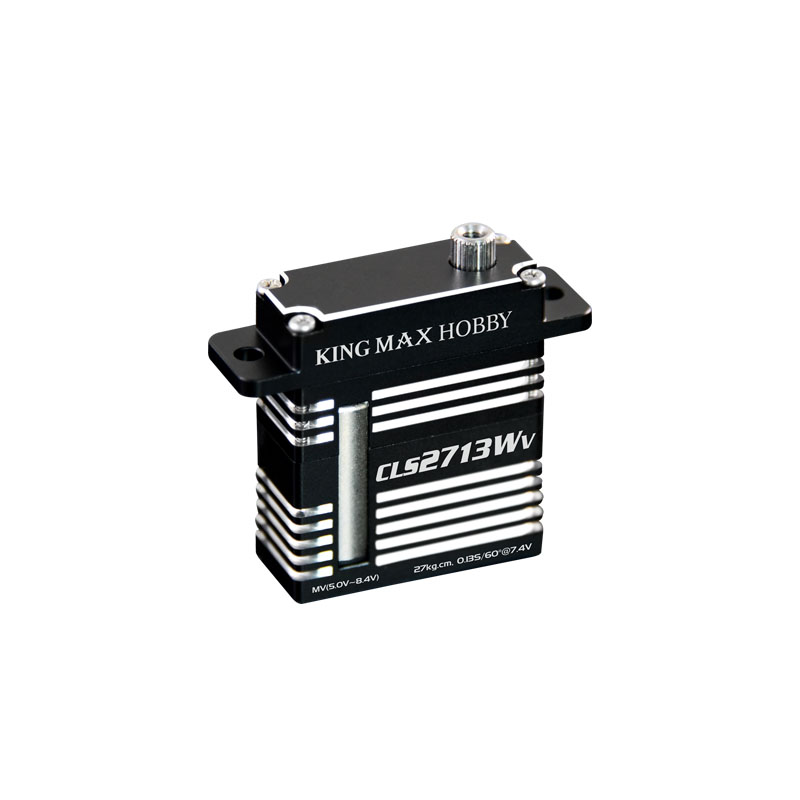

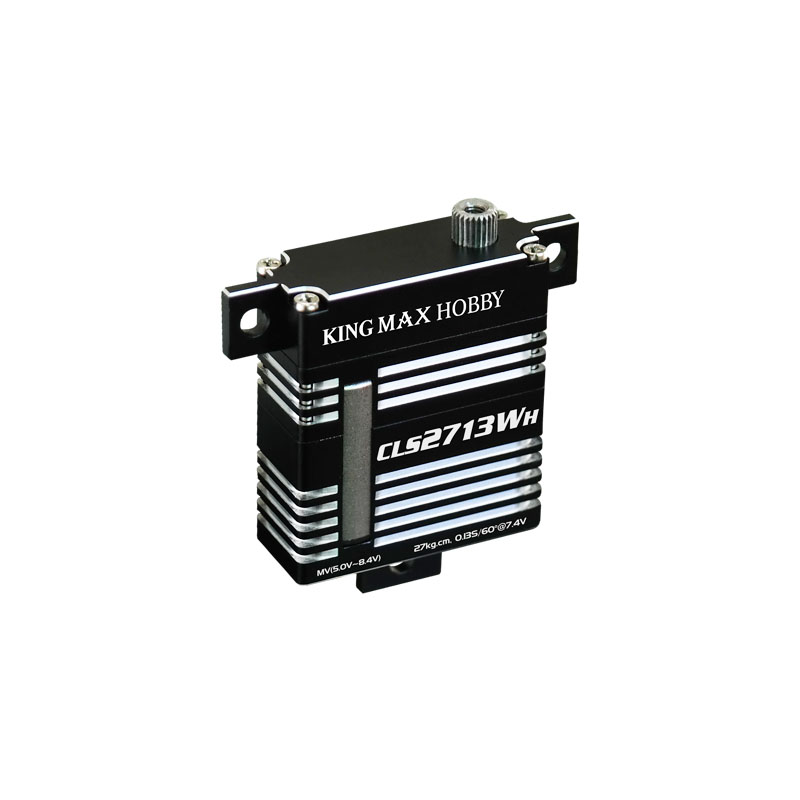

KingMax CLS2713W 34.3g 27kg.cm torque digital wing servos

FEATURE:

— High performance, digital high voltage wing servo

— High-precision steel gear

— Full CNC aluminium hulls and structure

— High quality coreless motor

— Dual ball bearings

SPECIFICATIONS:

Operating Speed(5.0V):0.19sec/60degrees

Operating Speed(6.0V):0.16sec/60degrees

Operating Speed(7.4V):0.13sec/60degrees

Operating Speed(8.4V):0.12sec/60degrees

Stall torque(7.4V):27.0kg.cm(375.03oz/in)

Maximum working torque(7.4V):15.0kg.cm(208.35oz/in)

Rated working torque(5.0V):7.80kg.cm(108.34oz/in)

Rated working torque(6.0V):10.5kg.cm(145.85oz/in)

Rated working torque(7.4V):12.0kg.cm(166.68oz/in)

Rated working torque(8.4V):13.0kg.cm(180.57oz/in)

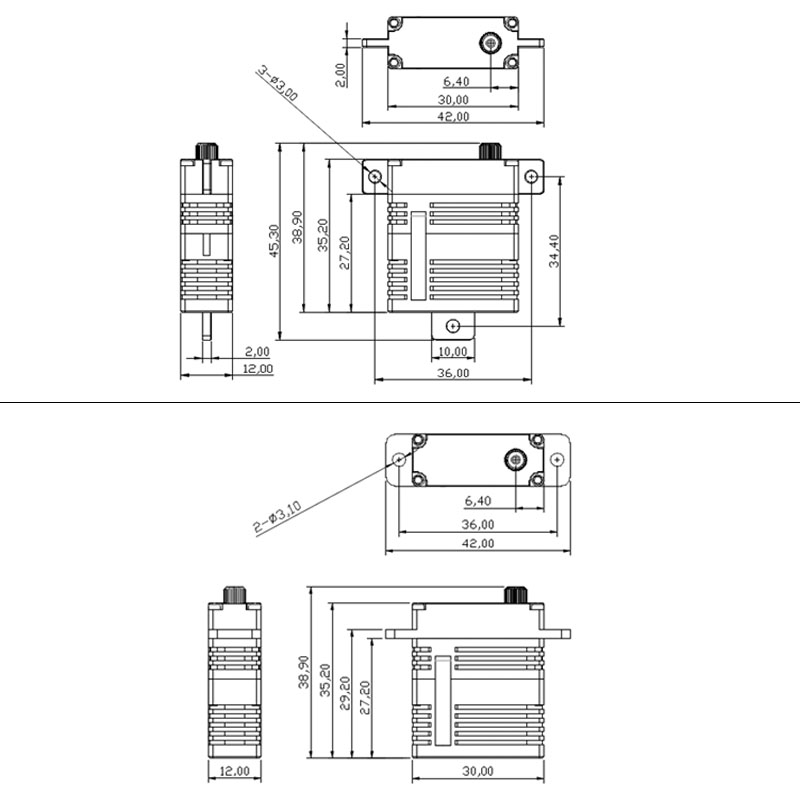

Dimensions(L*W*H):30*12*35mm/1.17X0.46X1.36in

Weight:34.3g(1.21oz)

Connector Wire Length:JR215mm(8.38in)

Packing Detail:

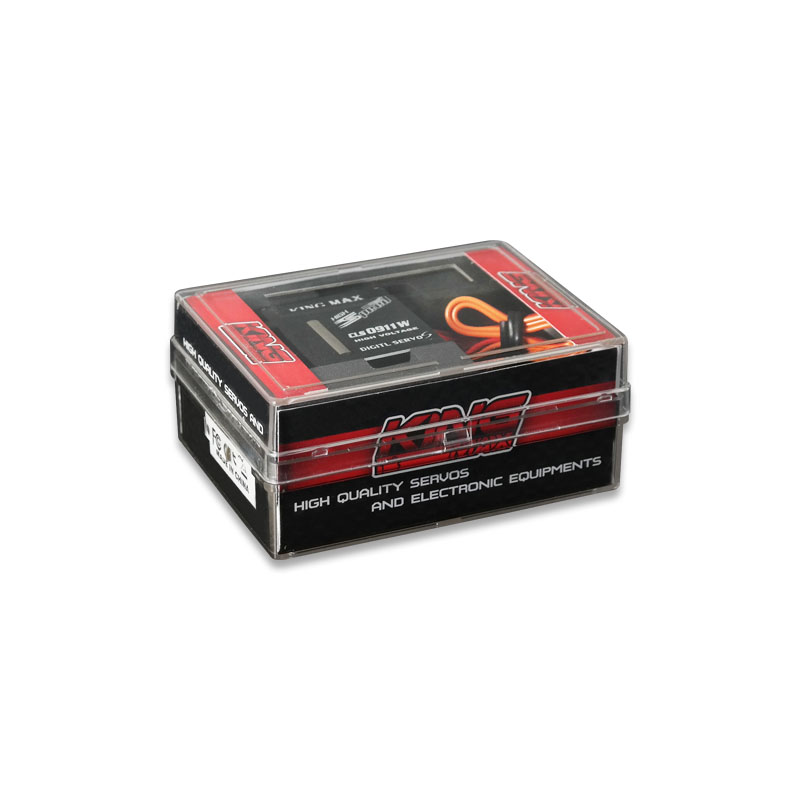

Transparent plastic box size: 83.5mmx63.5mmx37.5mm   weight: 79.4g

Carton box   size: 43×26.5×20.5cm   100sets/1CTN   Gross weight:8.4kg

Optional Accessories:

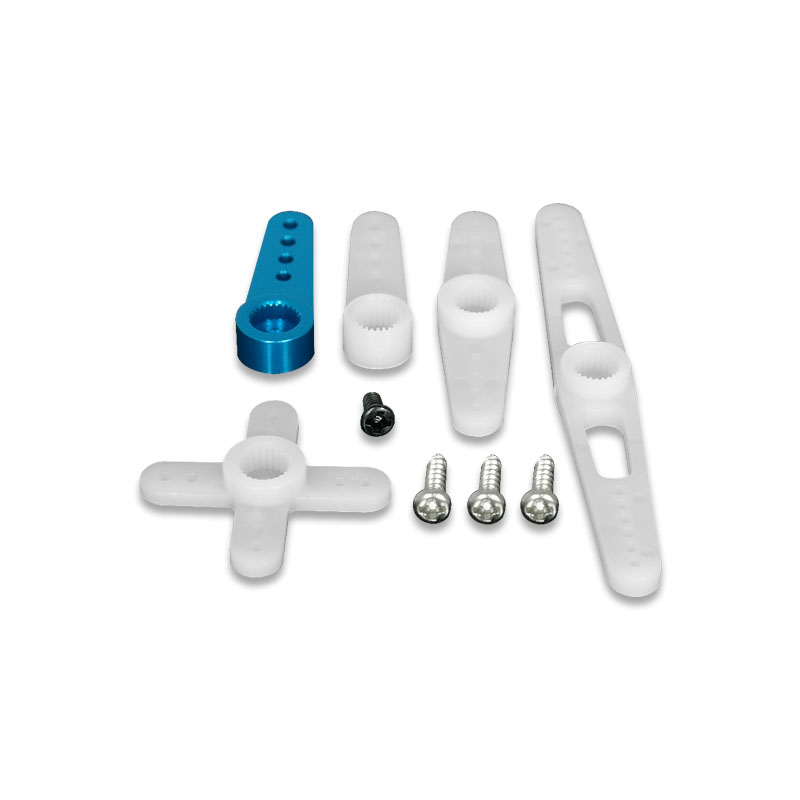

CLS2713WH-001:Offered accessories

CLS2713WH-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
