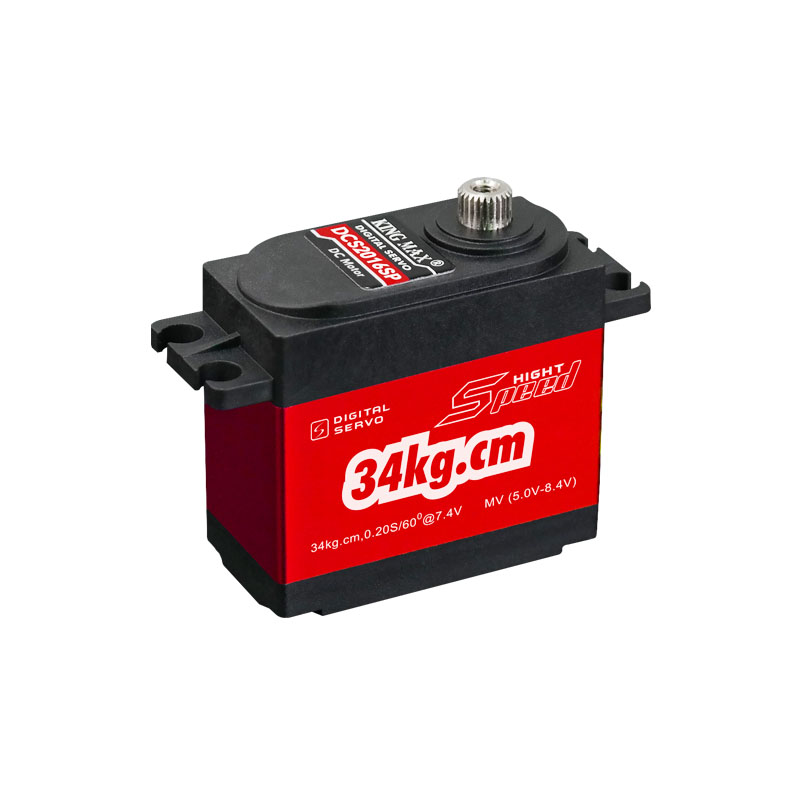

KingMax DCS2016SP–60g 34kg.cm,high voltage,standard servos

FEATURE:

-High performance, standard, Multivoltage digital servo

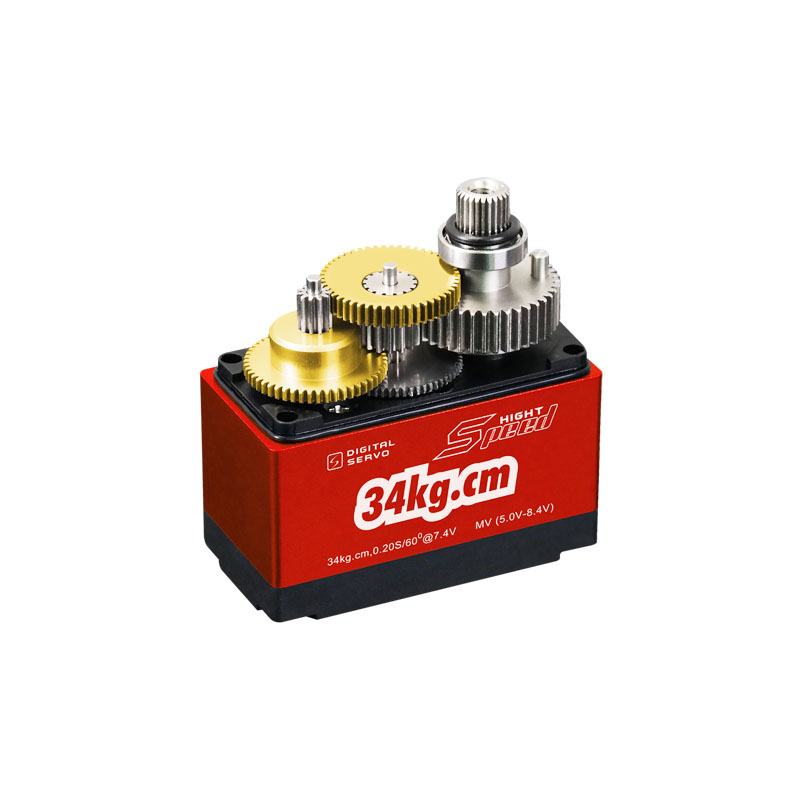

-High-precision 7075 aluminium gear

-Long-life potentiometer

-Middle CNC aluminium case

-High quality DC motor

-Dual ball bearing

-Waterproof

-Suit for entry-level car, buggy, crawler，robot，28-50CC helicopter etc

SPECIFICATIONS:

Operating Speed(5.0V):0.27sec/60degrees

Operating Speed(6.0V):0.23sec/60degrees

Operating Speed(7.4V):0.20sec/60degrees

Operating Speed(8.4V):0.19sec/60degrees

Stall torque(7.4V):34.0kg.cm(472.26oz/in)

Maximum working torque(7.4V):18.2kg.cm(252.79oz/in)

Rated working torque(5.0V):8.0kg.cm(111.12oz/in)

Rated working torque(6.0V):10.0kg.cm(138.90oz/in)

Rated working torque(7.4V):12.0kg.cm(166.68oz/in)

Rated working torque(8.4V):14.0kg.cm(194.46oz/in)

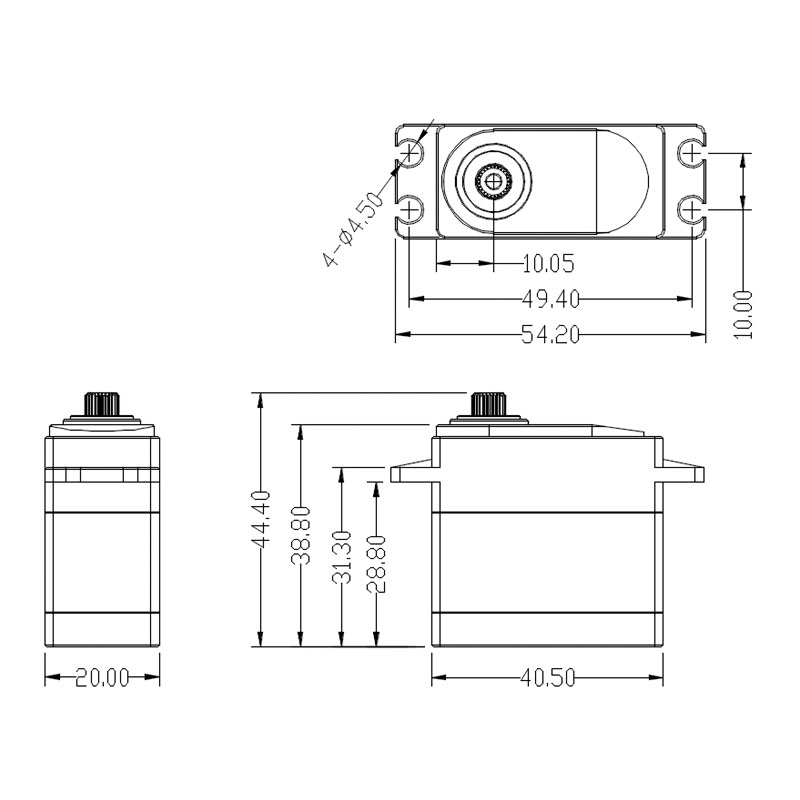

Size：40.7×20.4×39.5mm (1.60×0.80×1.55in)

Weight:60g (2.12oz)

Connector Wire Length: 250mm(9.84in)

Packing Detail:

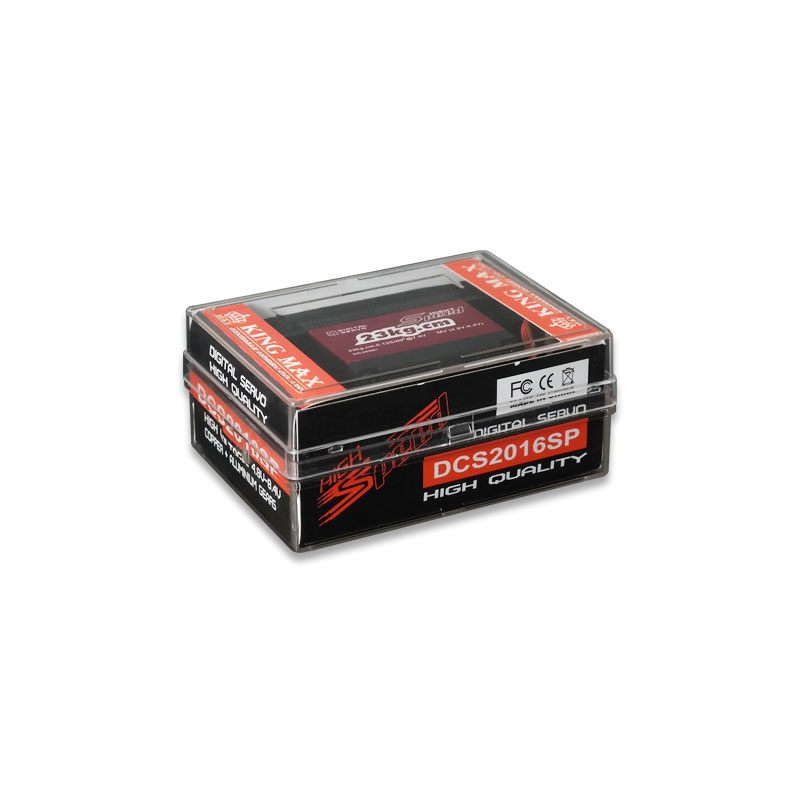

Transparent plastic box size: 83.5mmx63.5mmx37.5mm   weight: 109g
Carton box   size: 43×26.5×20.5cm   100sets/1CTN   Gross weight:11.35kg

Optional Accessories:

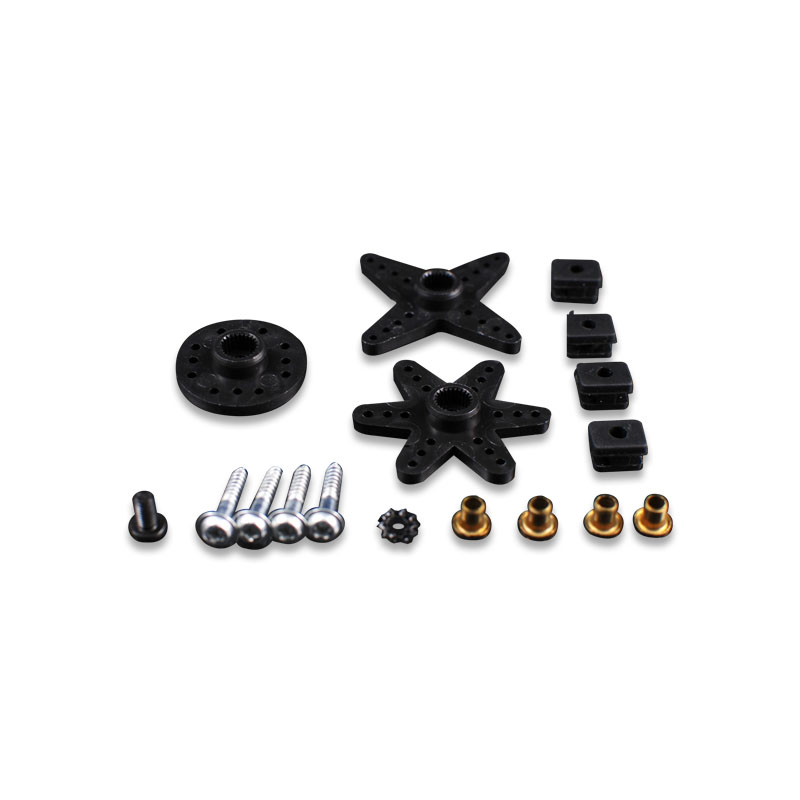

DCS2016SP-001:Offered accessories

DCS2016SP-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
