FEATURE:
— High performance digital mini servo
— High-precision steel gear
— High quality coreless motor
— Full CNC aluminium hulls and structure
— Dual ball bearings
— Super long life
SPECIFICATIONS:
Operating Speed(5.0V):0.12sec/60degrees
Operating Speed(6.0V):0.10sec/60degrees
Operating Speed(7.4V):0.08sec/60degrees
Operating Speed(8.4V):0.07sec/60degrees
Stall torque(7.4V):10.00kg.cm(138.90oz/in)
Maximum working torque(7.4V):6.60kg.cm(91.67oz/in)
Rated working torque(5.0V):3.00kg.cm(41.67oz/in)
Rated working torque(6.0V):3.30kg.cm(45.83oz/in)
Rated working torque(7.4V):4.20kg.cm(58.33oz/in)
Rated working torque(8.4V):4.80kg.cm(66.67oz/in)

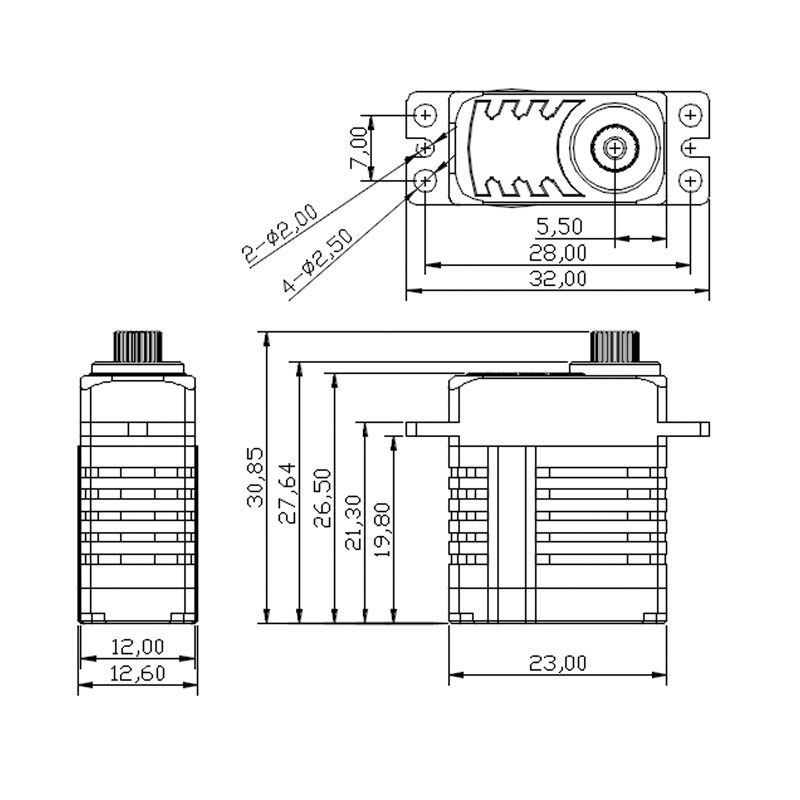

Dimensions:23*12*26.5mm/0.89X0.46X1.03in
Weight:20g(0.71oz)
Connector Wire Length:JR185mm(7.21in)
Packing Detail:
Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 63.5g
Carton box size: 43×26.5×20.5cm 100sets/1CTN Gross weight:7kg
Optional Accessories:

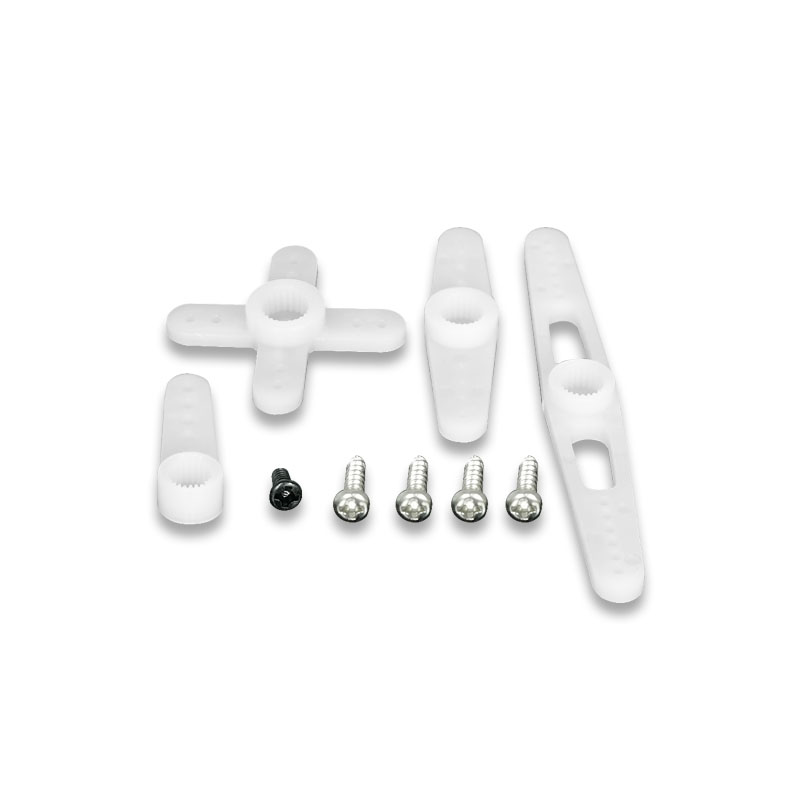

S10M-001:Offered accessories

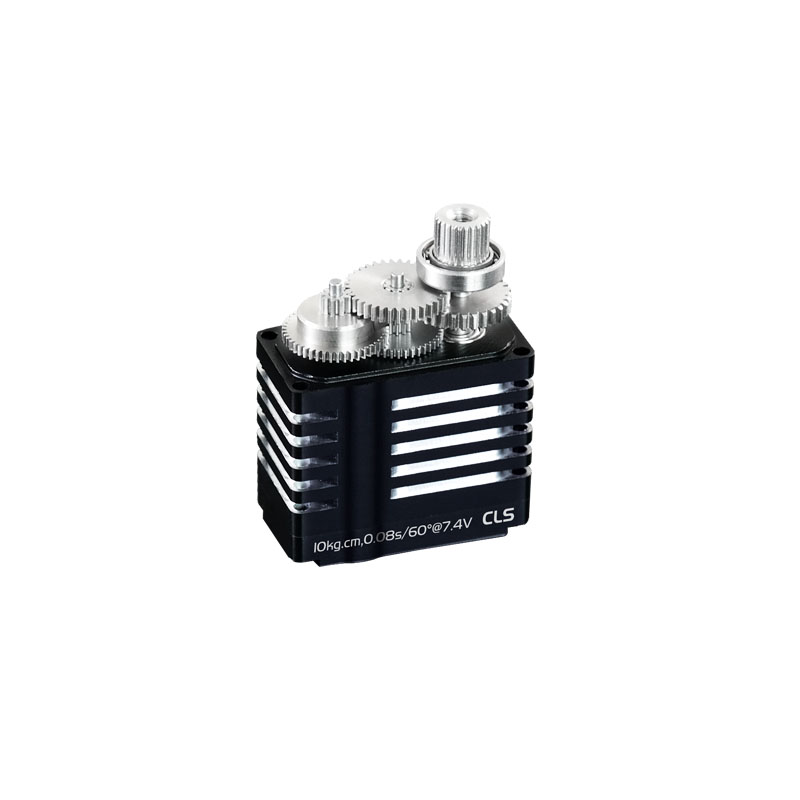

S10M-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
