FEATURE:
— High performance, digital standard servo
— High-precision steel gears
— Full CNC aluminium hulls and structure
— High quality brushless motor
— Dual ball bearings
— Super long life
— Waterproof
SPECIFICATIONS:
Operating Speed(7.4V):0.15sec/60degrees
Operating Speed(8.4V):0.13sec/60degrees
Operating Speed(12.0V):0.09sec/60degrees
Stall torque(12.0V):65kg.cm(902.85oz/in)
Maximum working torque(12V):50kg.cm(694.50oz/in)
Rated working torque(7.4V):27.0kg.cm(361.14oz/in)
Rated working torque(8.4V):29.0kg.cm(444.48oz/in)
Rated working torque(12.0V):33.0kg.cm(486.15oz/in

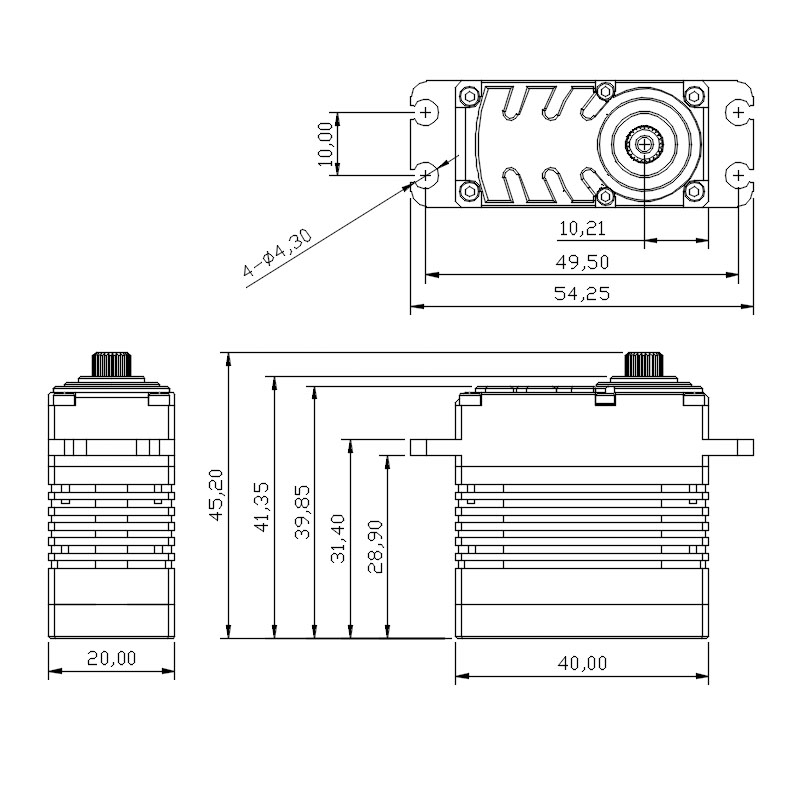

Dimensions:40*20*39.8mm/1.56X0.78X1.55in
Weight:91g(3.21oz)
Connector Wire Length:JR300mm(11.7in)
Packing Detail:

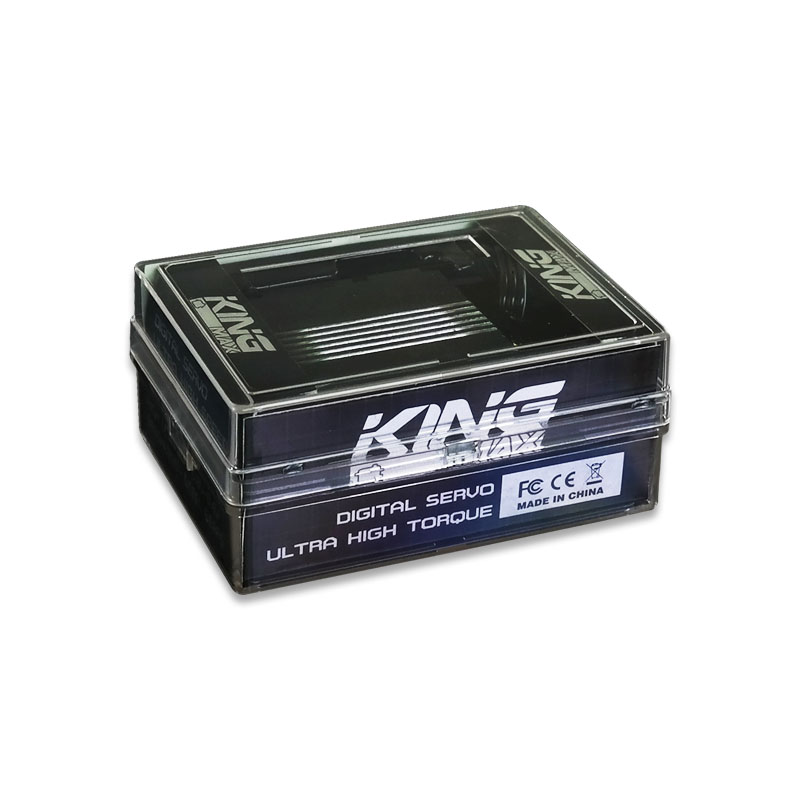

Transparent plastic box size: 83.5mmx63.5mmx37.5mm weight: 141g
Carton box size: 43×26.5×20.5cm 100sets/1CTN Gross weight:14.75kg
Optional Accessories:

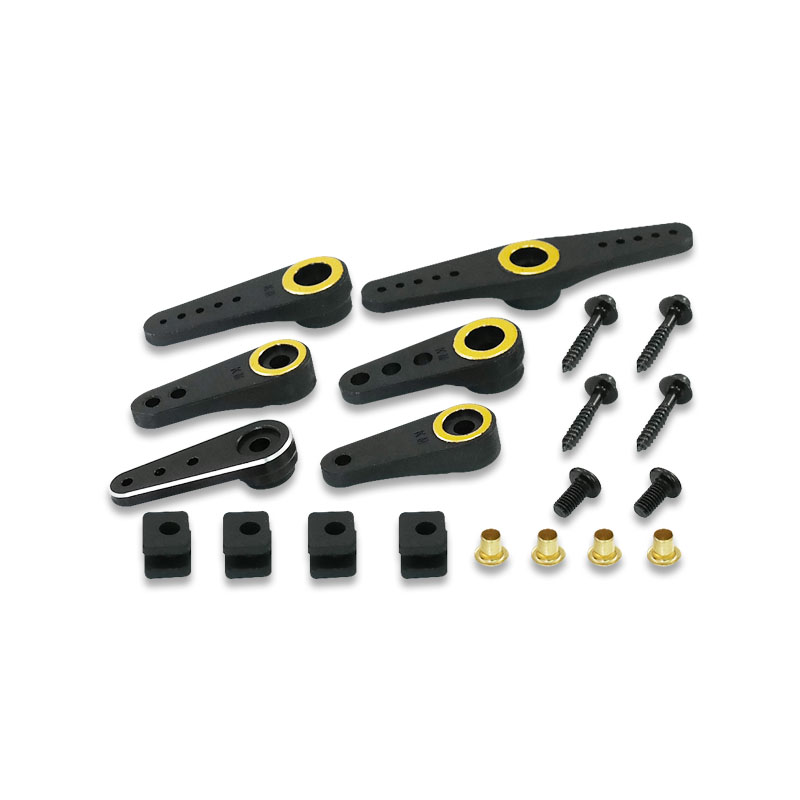

S65S12-001:Offered accessories

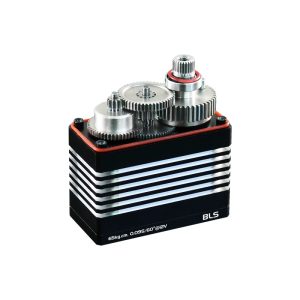

S65S12-002:1set of gearset, including gears, shafts and 2 ball bearings(not include motor gear)
