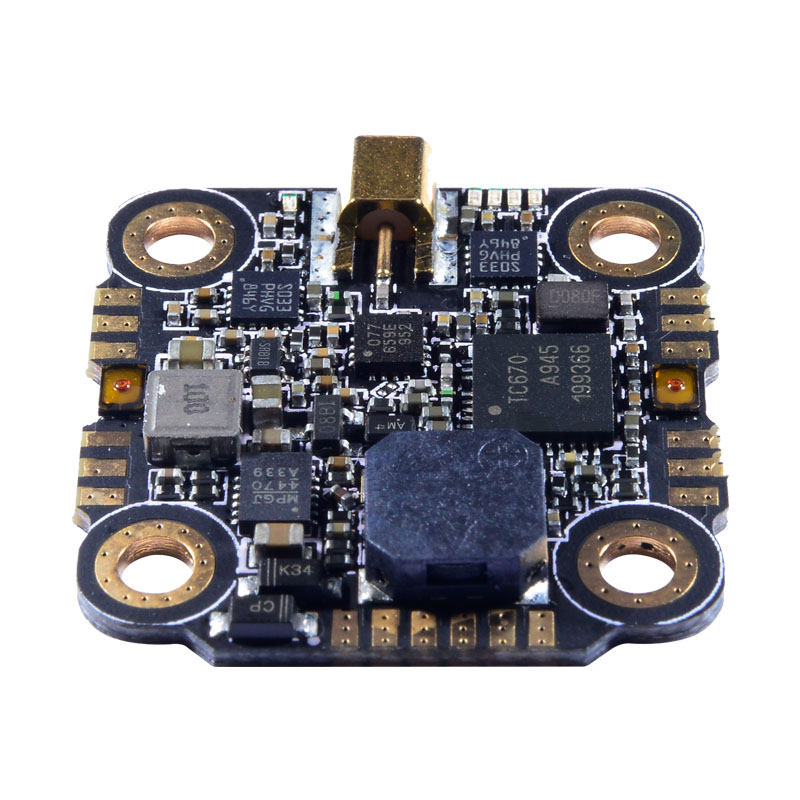

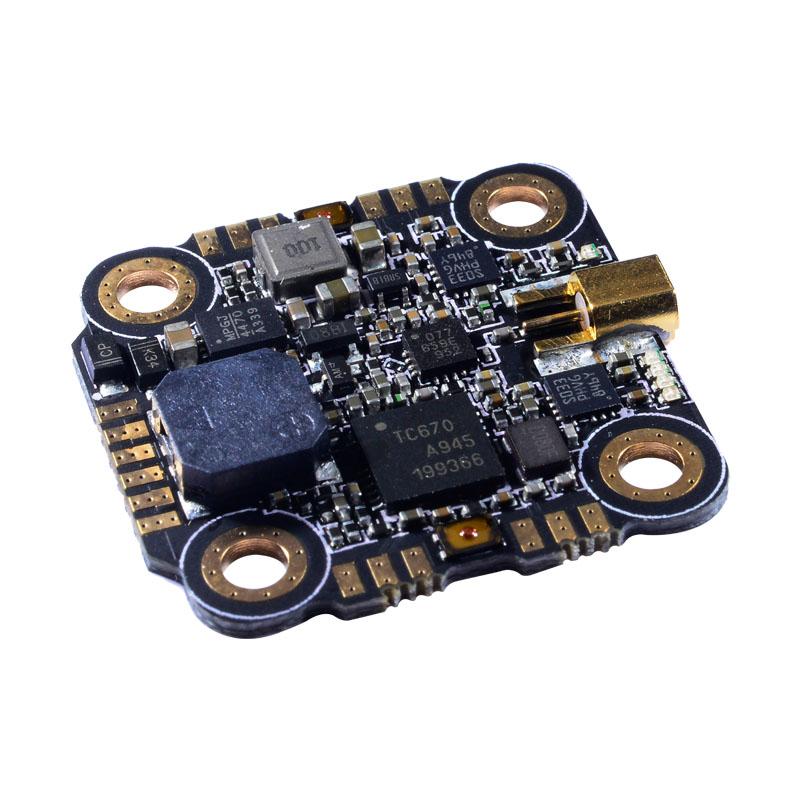

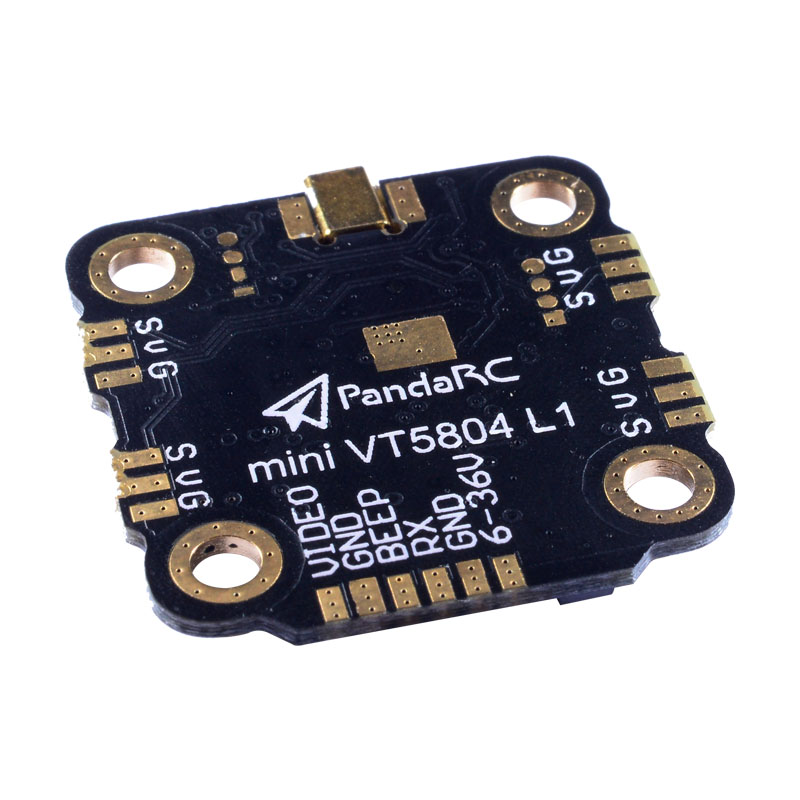

PandaRC MINI L1

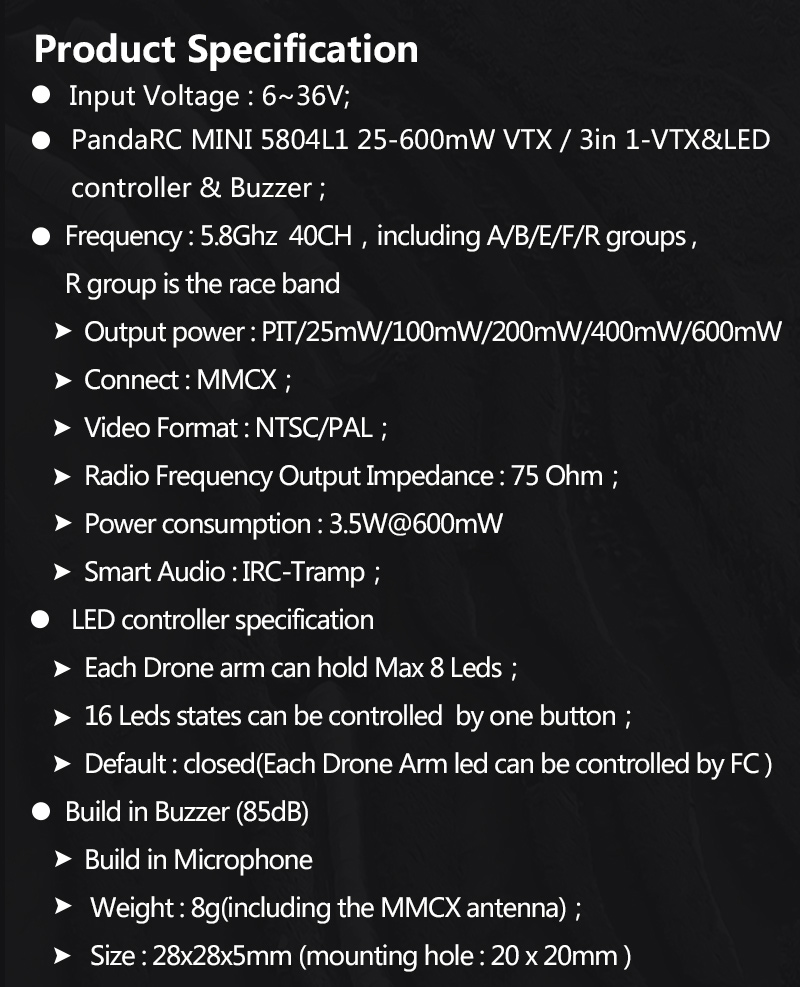

● Product name: MINI L1
● Input voltage: 6-36V;

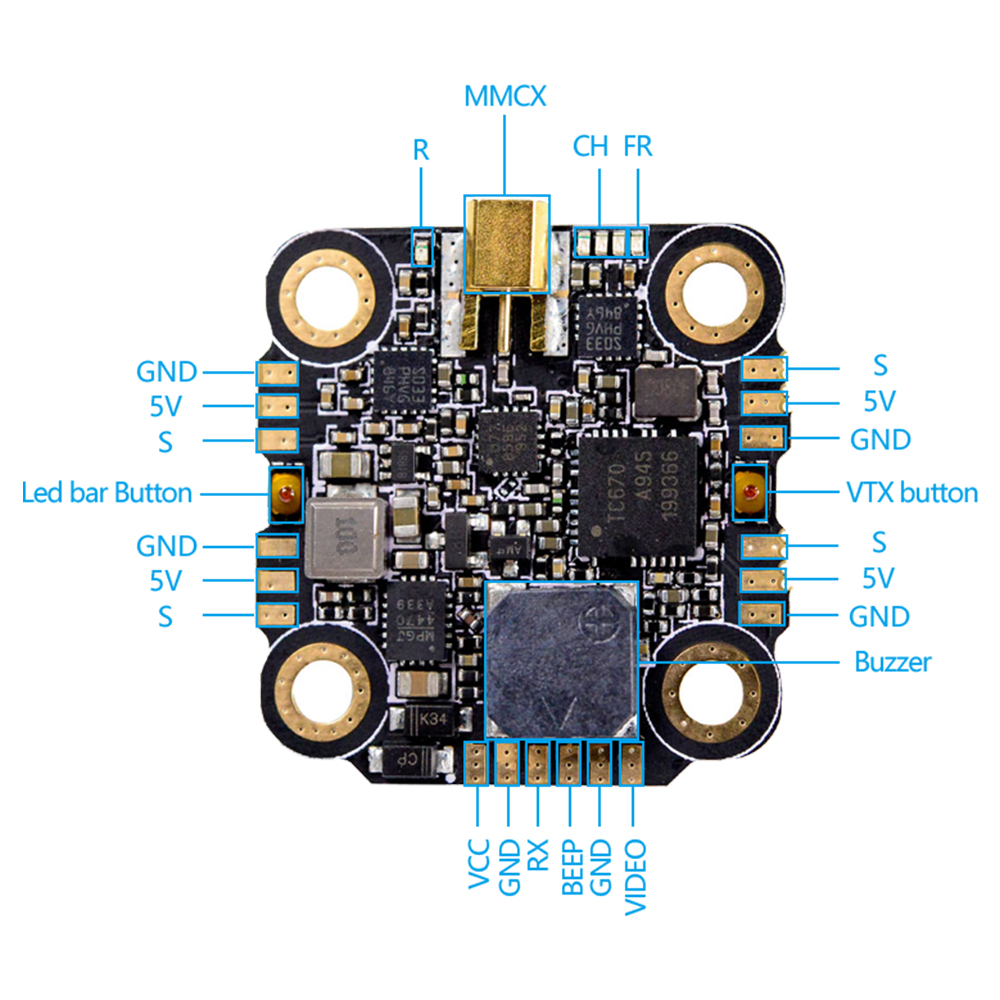

● 3-in-1 video transmission includes VTX&LED controller&BUZZER;

☆VTX parameters:

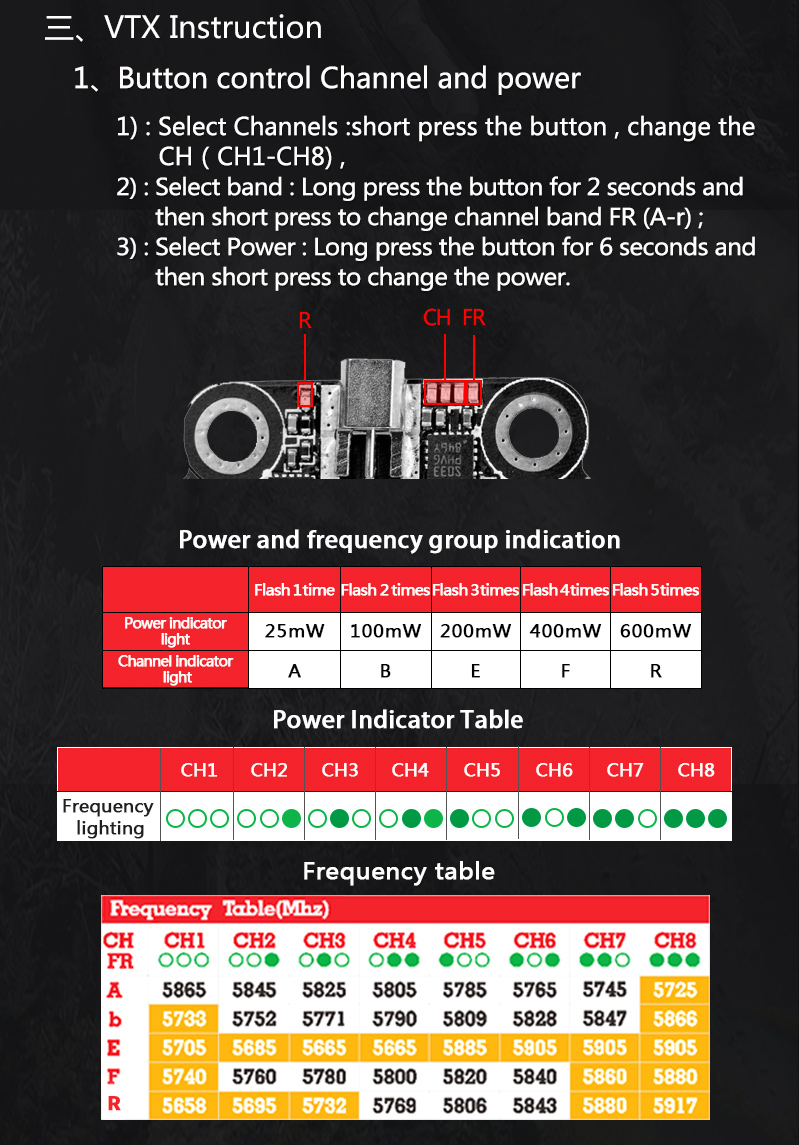

● Standard 40 channels, including A/B/E/F/R groups, of which R group is the competition frequency group;
● Output power 0mw (PIT mode) 25-100-200-400-600mw
● RF connector interface is MMCX;
● Video input format: NTSC/PAL;
● Video input impedance: 75 0hm;
● VTX power consumption: maximum 3.5W @600mw;

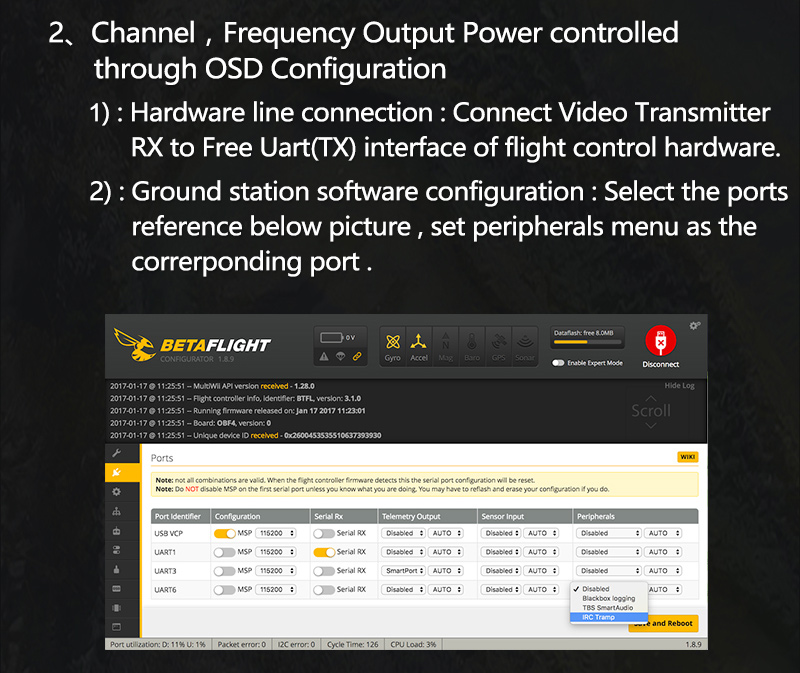

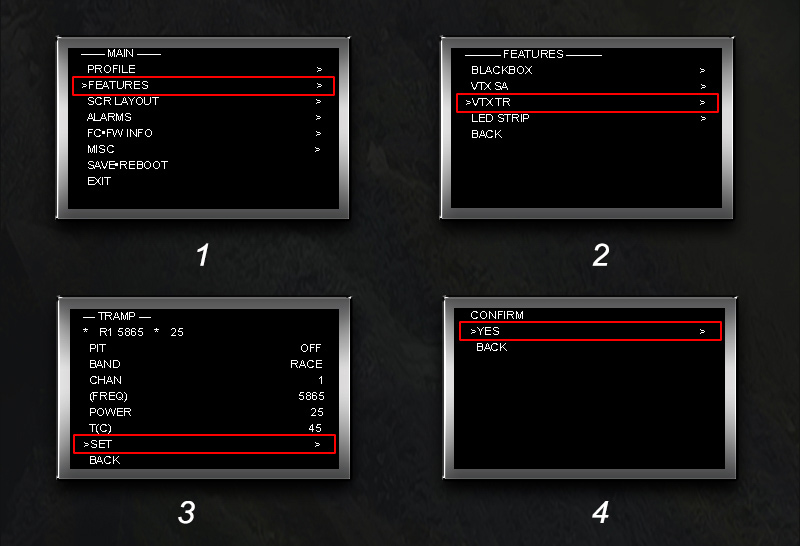

● Support IRC serial port protocol to set VTX parameters;

☆LED Controller parameters:

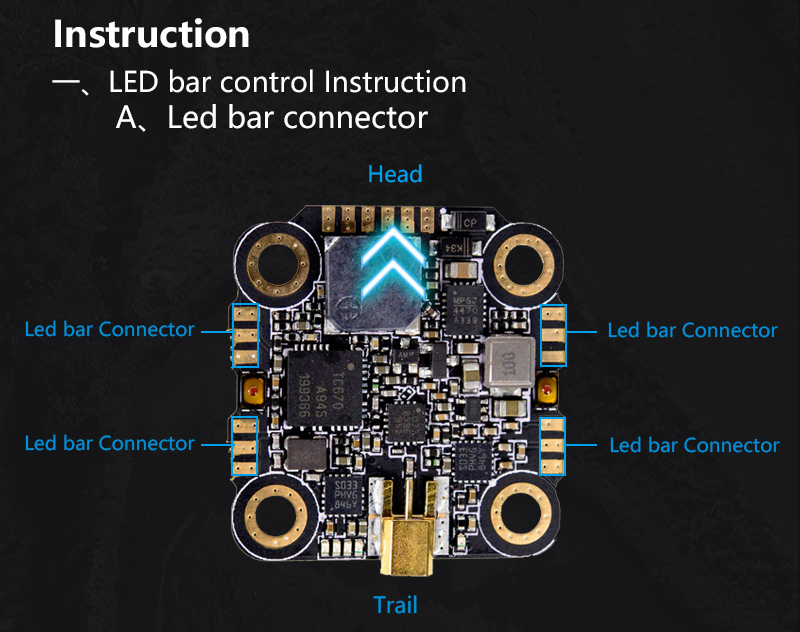

● Each channel supports up to 8 WS2812 lamp beads;

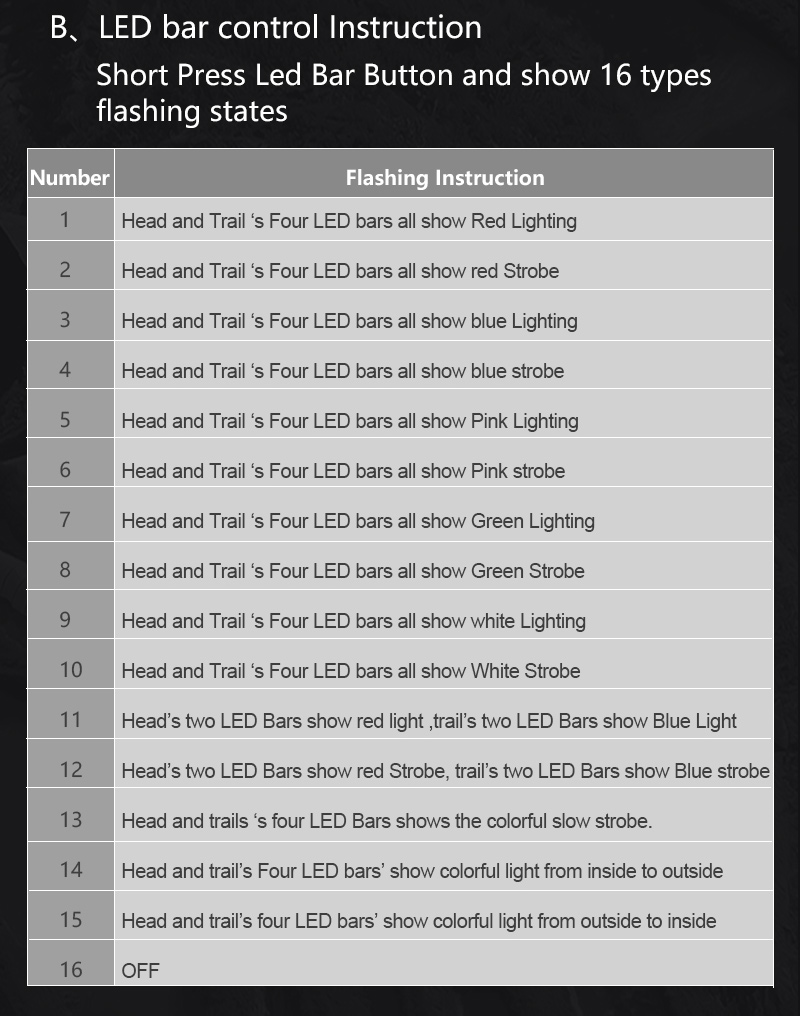

● One-click switch of 16 light states, default off state (each street light can be connected to the flight controller for control);

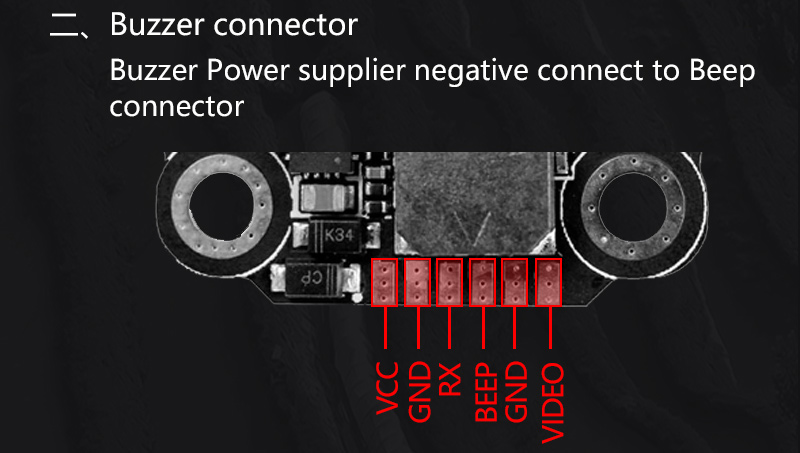

☆BUZZER parameters:
● Built-in 85dB active buzzer;

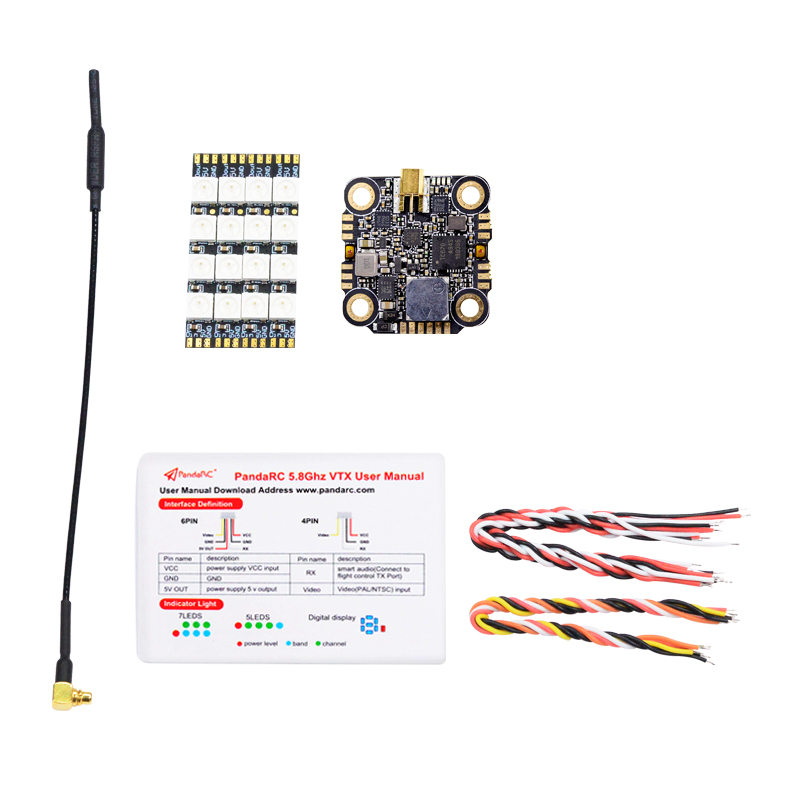

● Weight: 8g (including MMCX antenna);

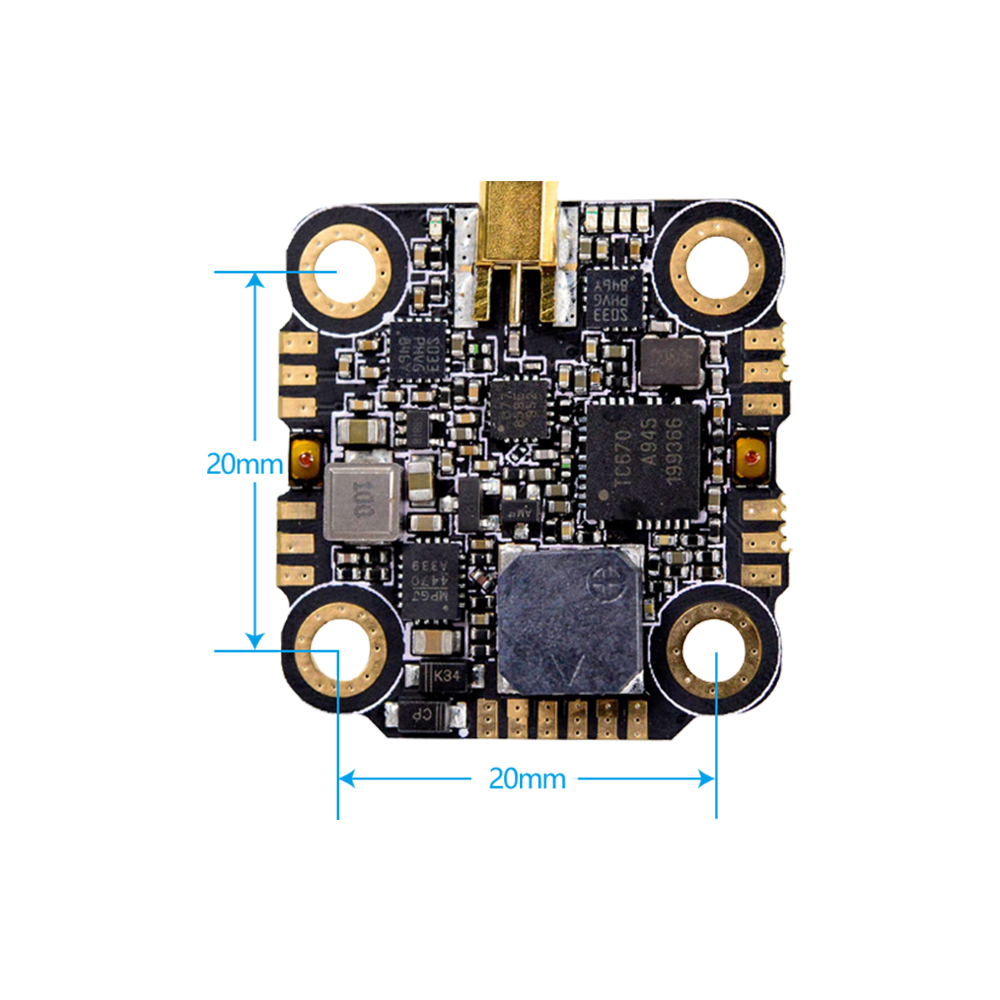

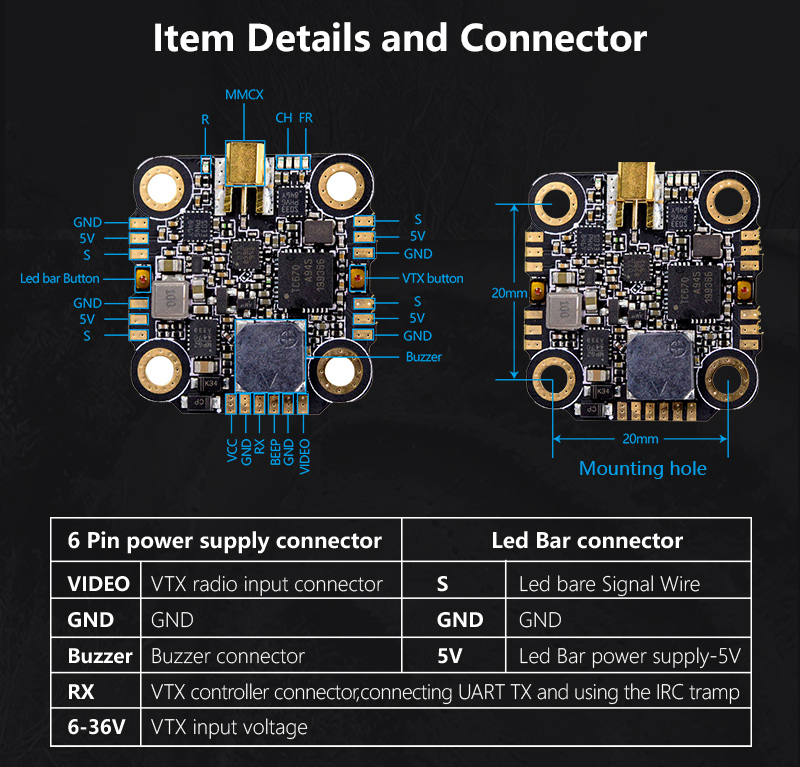

● Size: 28*28*5mm (installation hole distance 20*20mm, installation hole diameter 3mm)
