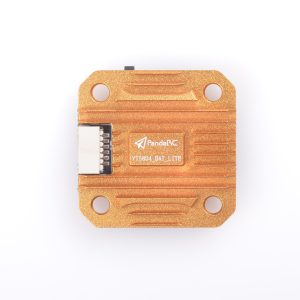

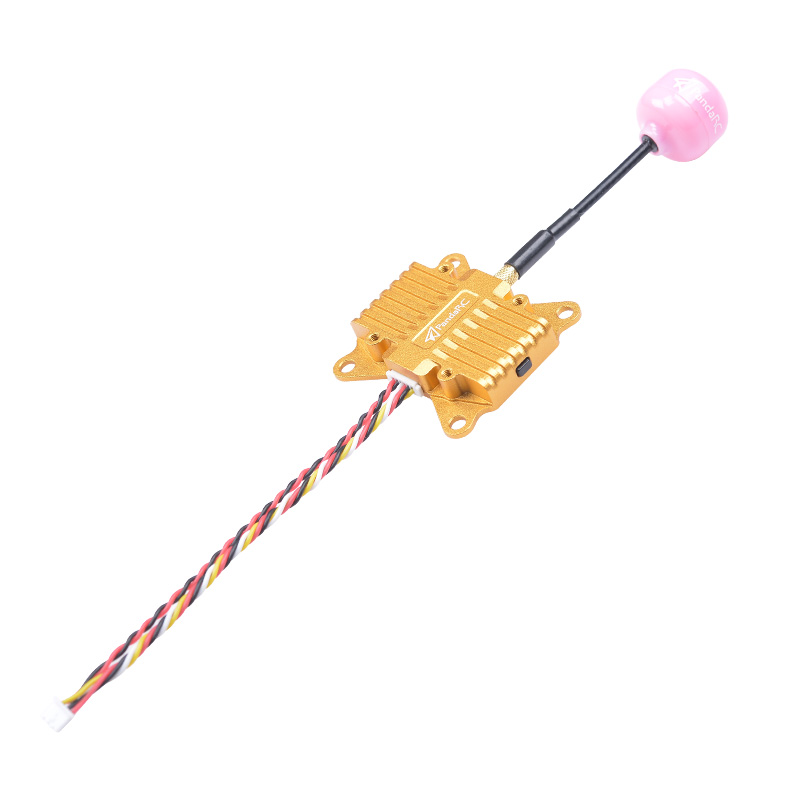

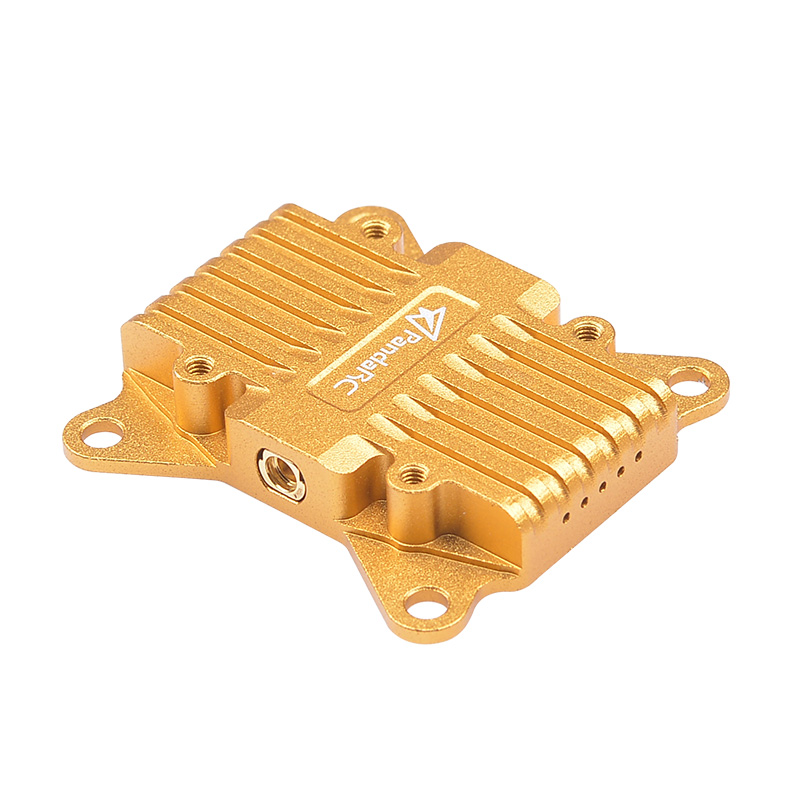

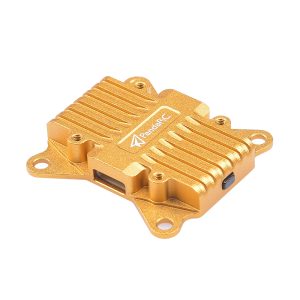

PandaRC VT5804 BAT

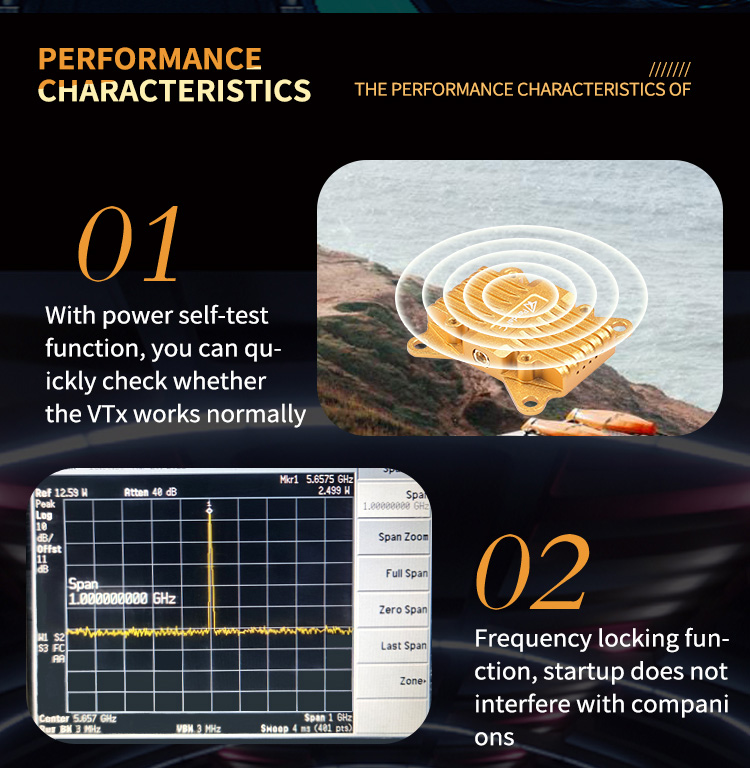

2.5W Output power | No interference when starting | Seamless switching environment | Power self-check

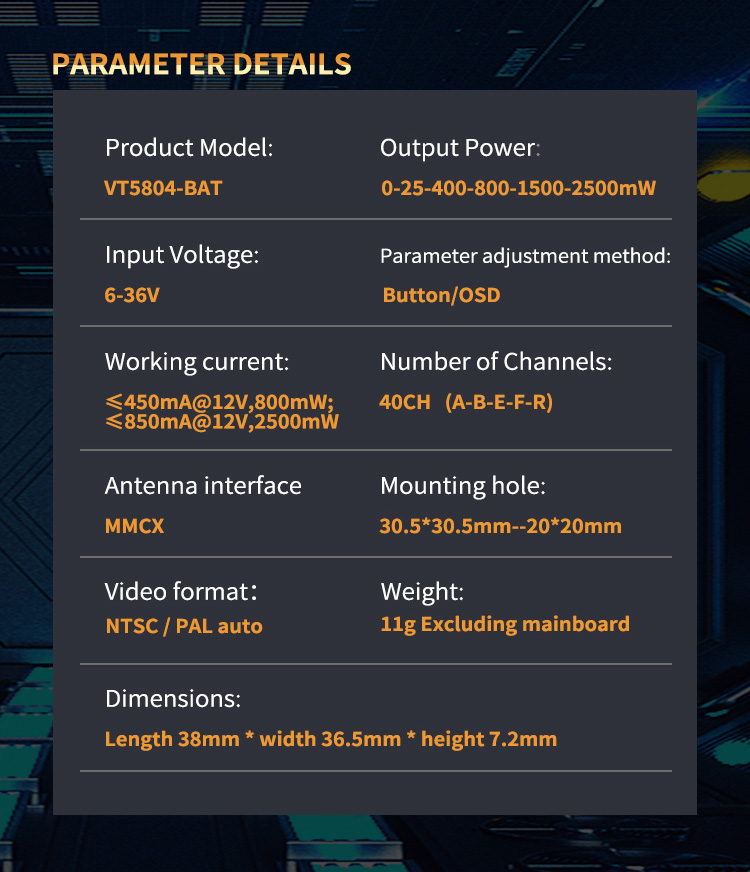

● Output power: 0-25-400-800-1500-2500mw
● Input voltage: 6-36V

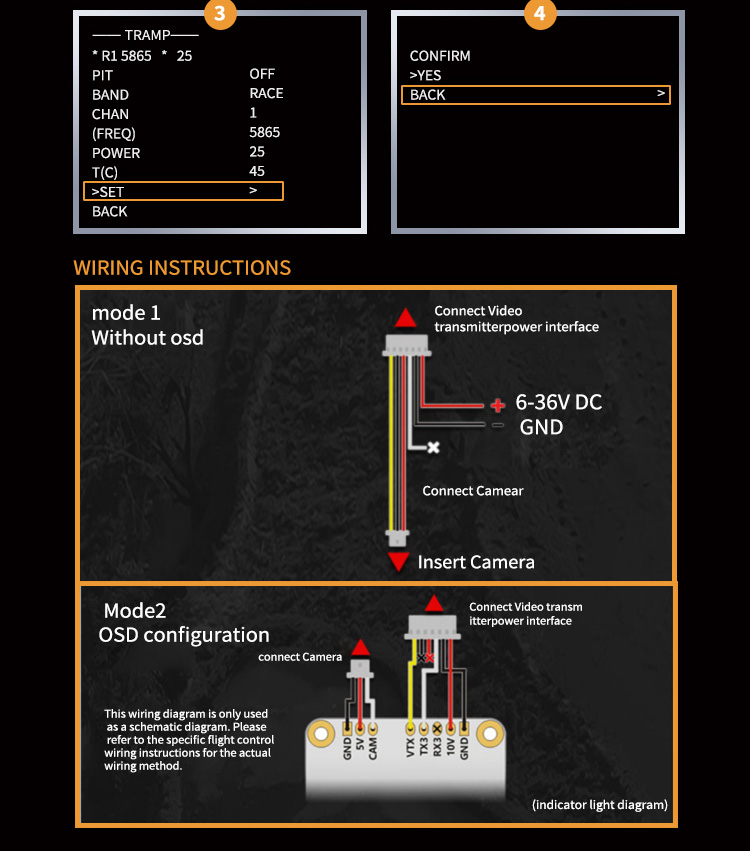

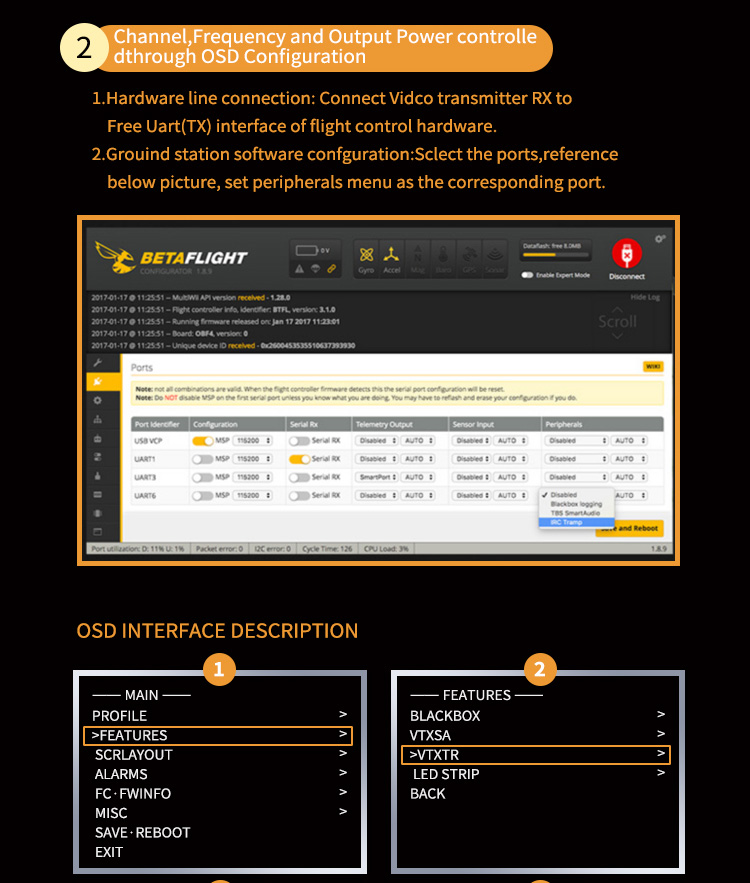

● Parameter adjustment mode: key / OSD
● Working current: 450mA@12V ,800mW； 850mA@12V ,2500mW
● Output frequency point: 48ch (A-B-E-F-R-L)

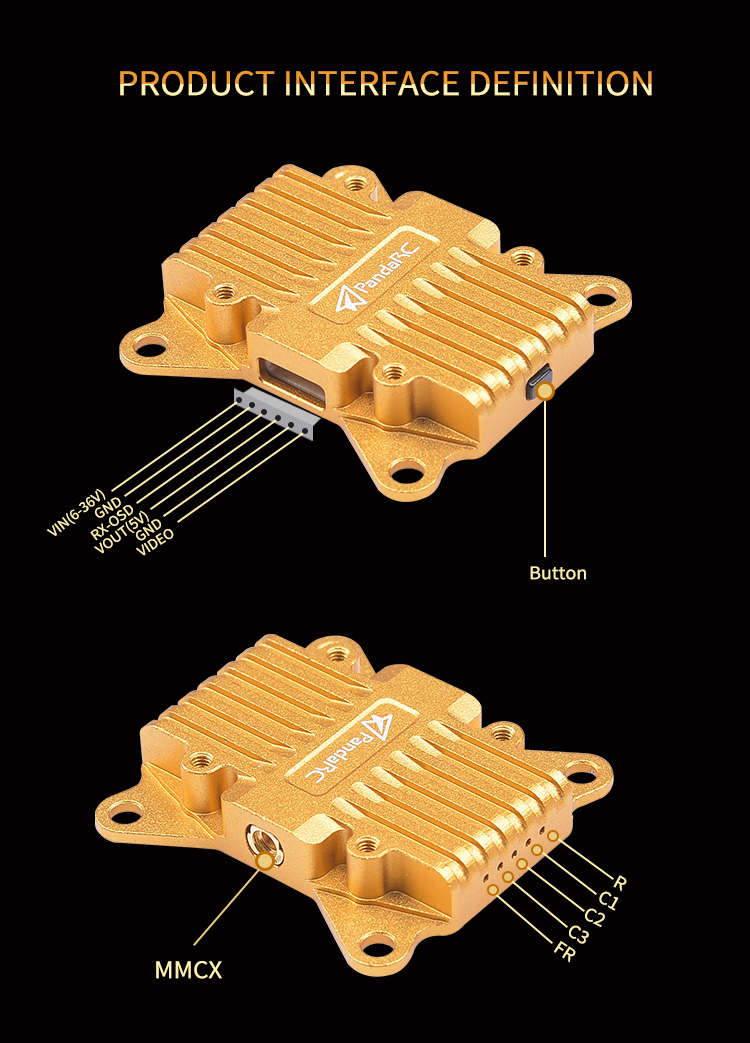

● Antenna interface: MMCX

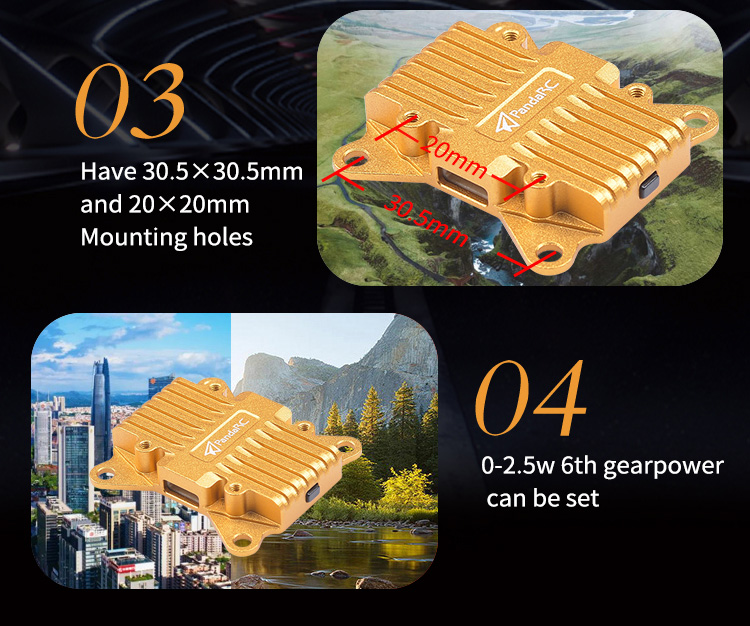

● Installation hole position: 30.5 * 30.5mm — 20 * 20MM
● Video format: NTSC / PAL automatic detection
● Weight: 11g (excluding antenna and power cord)

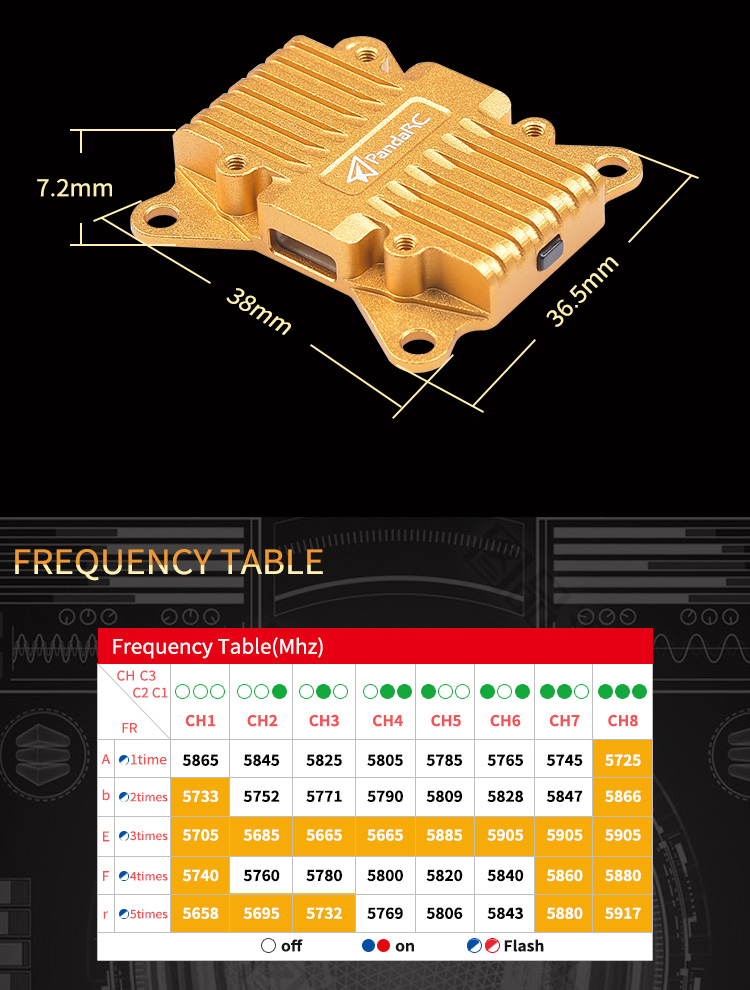

● Overall dimension: 38mm * 36.5mm * 7.2mm
