Specs
Overall
| Max Transmission Range | 15 km |
| (Unobstructed, free of interference) | |
| Channels | 13 physical channels |
| 16 communication channels | |
| Datalink Compatible Flight Controllers | PX4 / Ardupilot Open-source Flight Controllers: |
| SIYI N7, etc. | |
| Video Stream Compatible Android App | SIYI Original App: |
| SIYI FPV | |
| Open-source GCS: | |
| QGroundControl | |
| Mission Planner | |
| Video Stream Compatible Windows GCS | Open-source GCS: |
| QGroundControl | |
| Mission Planner (H264 only) |

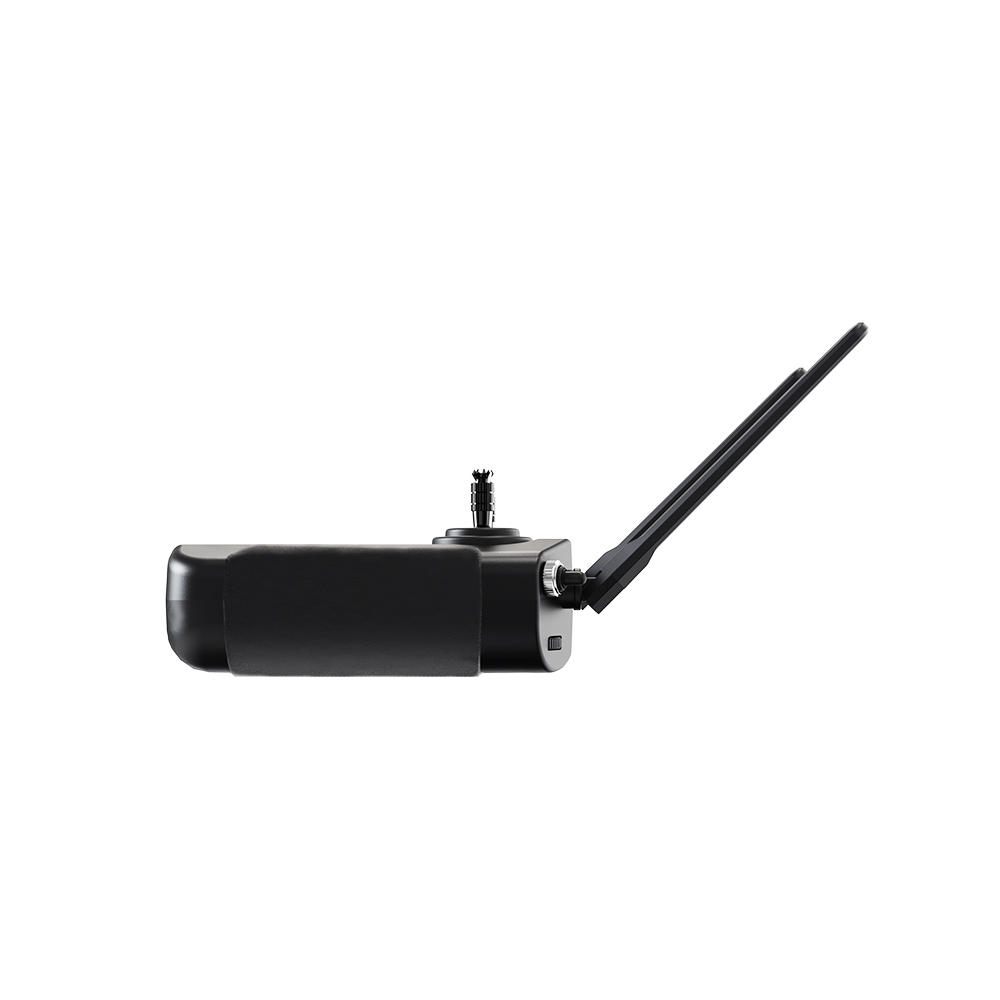

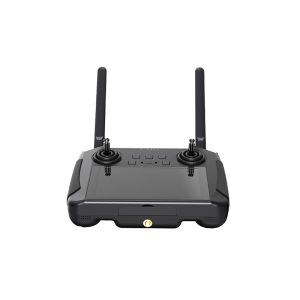

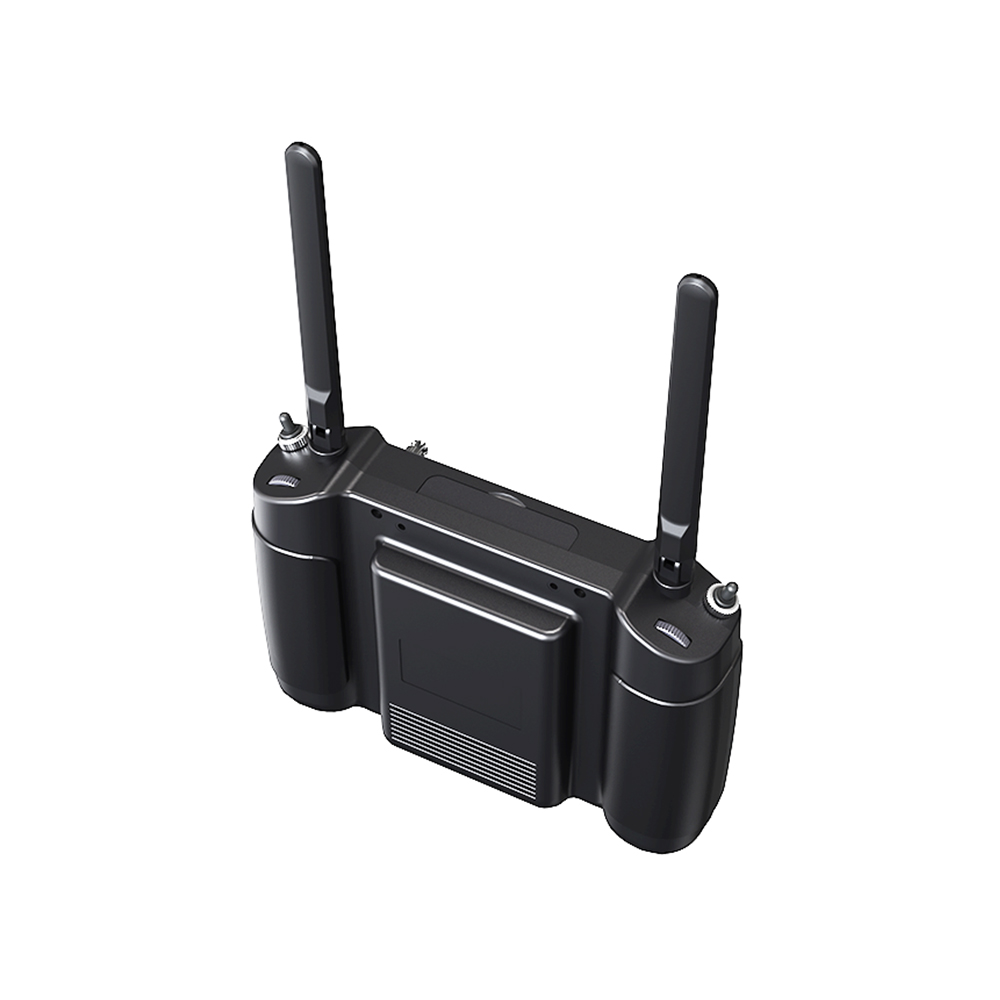

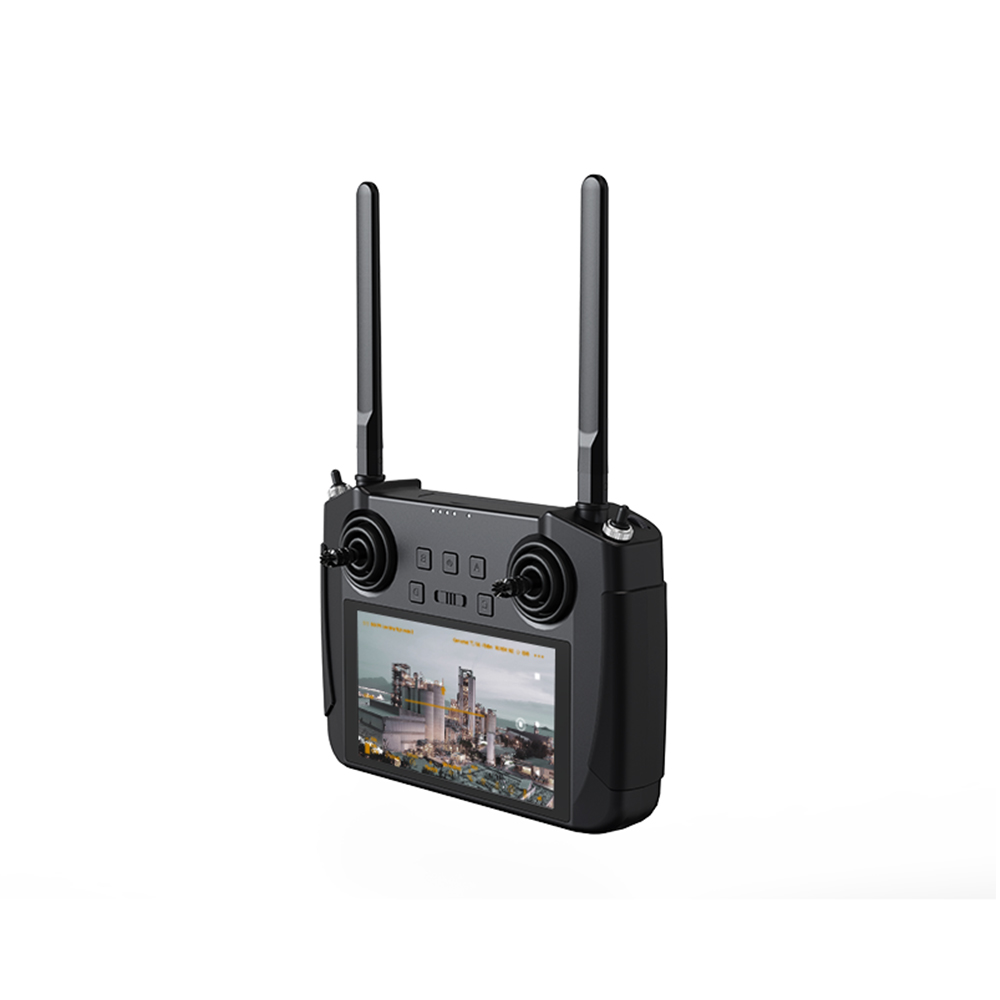

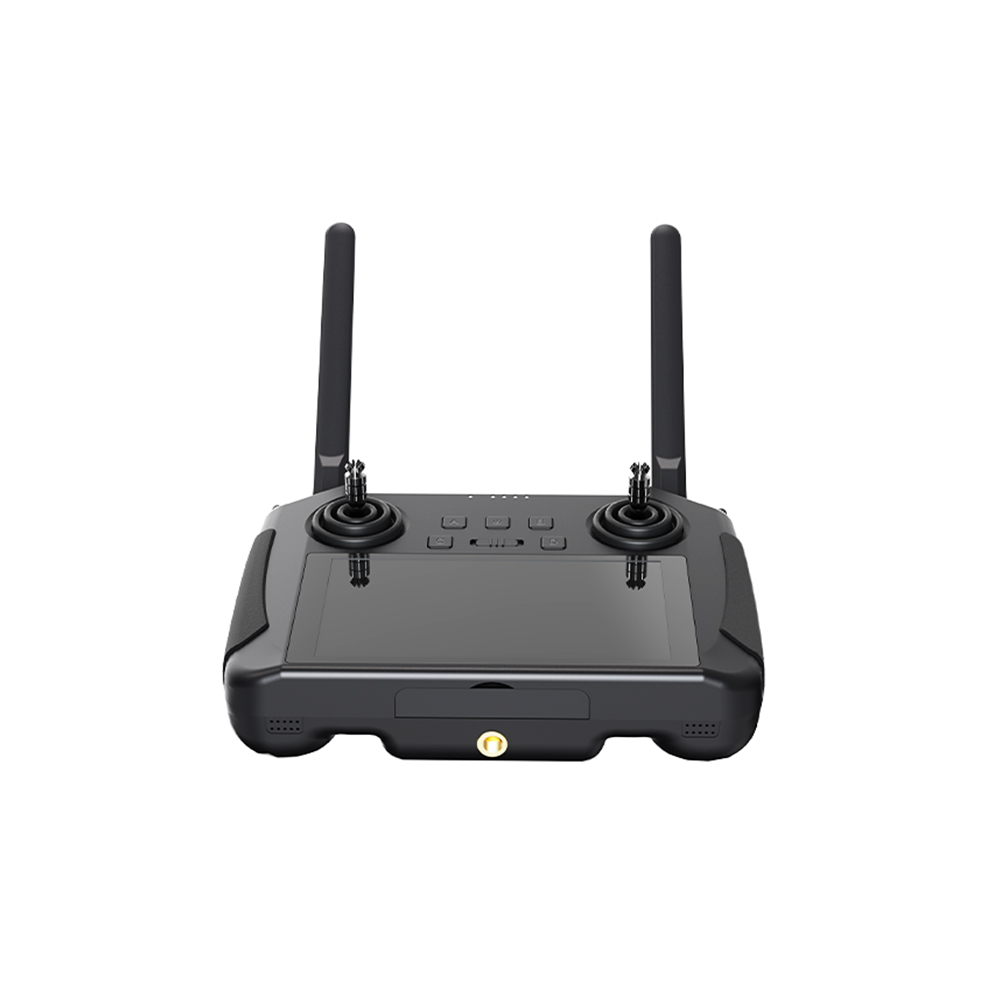

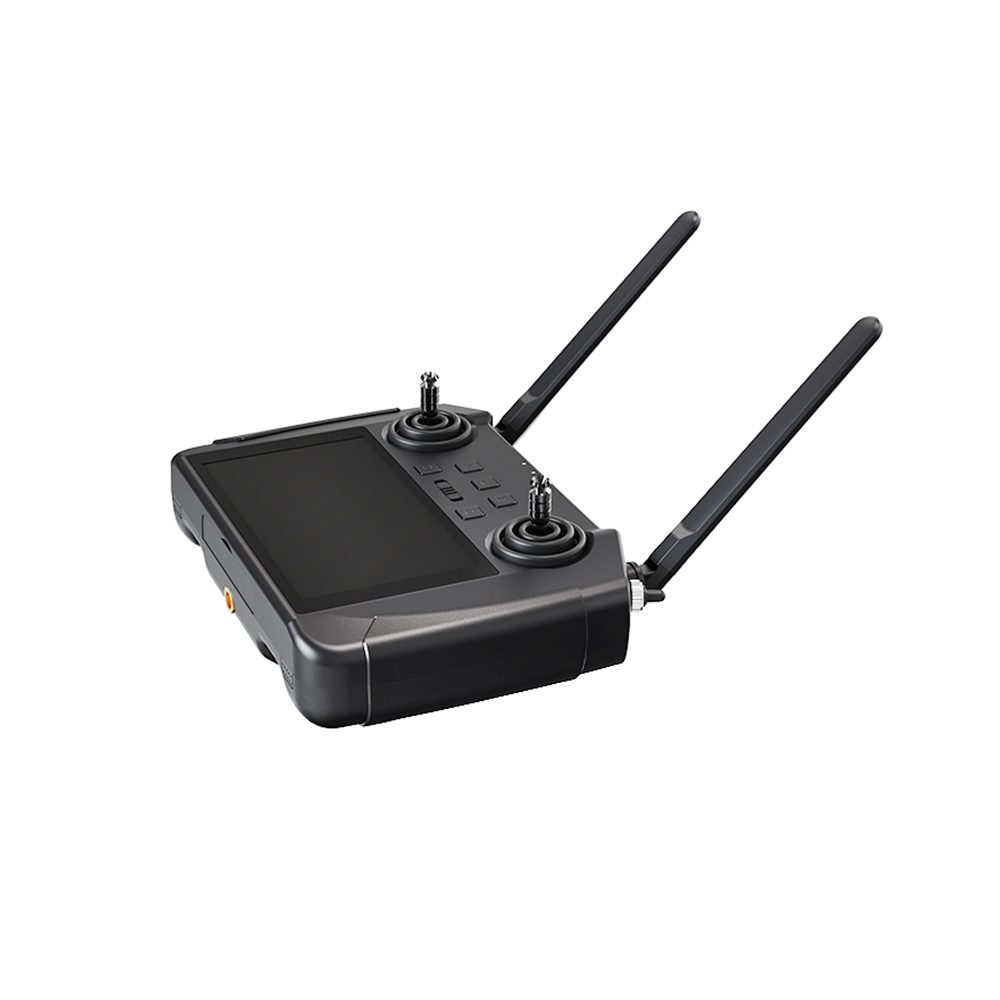

Ground Unit (Remote Controller)

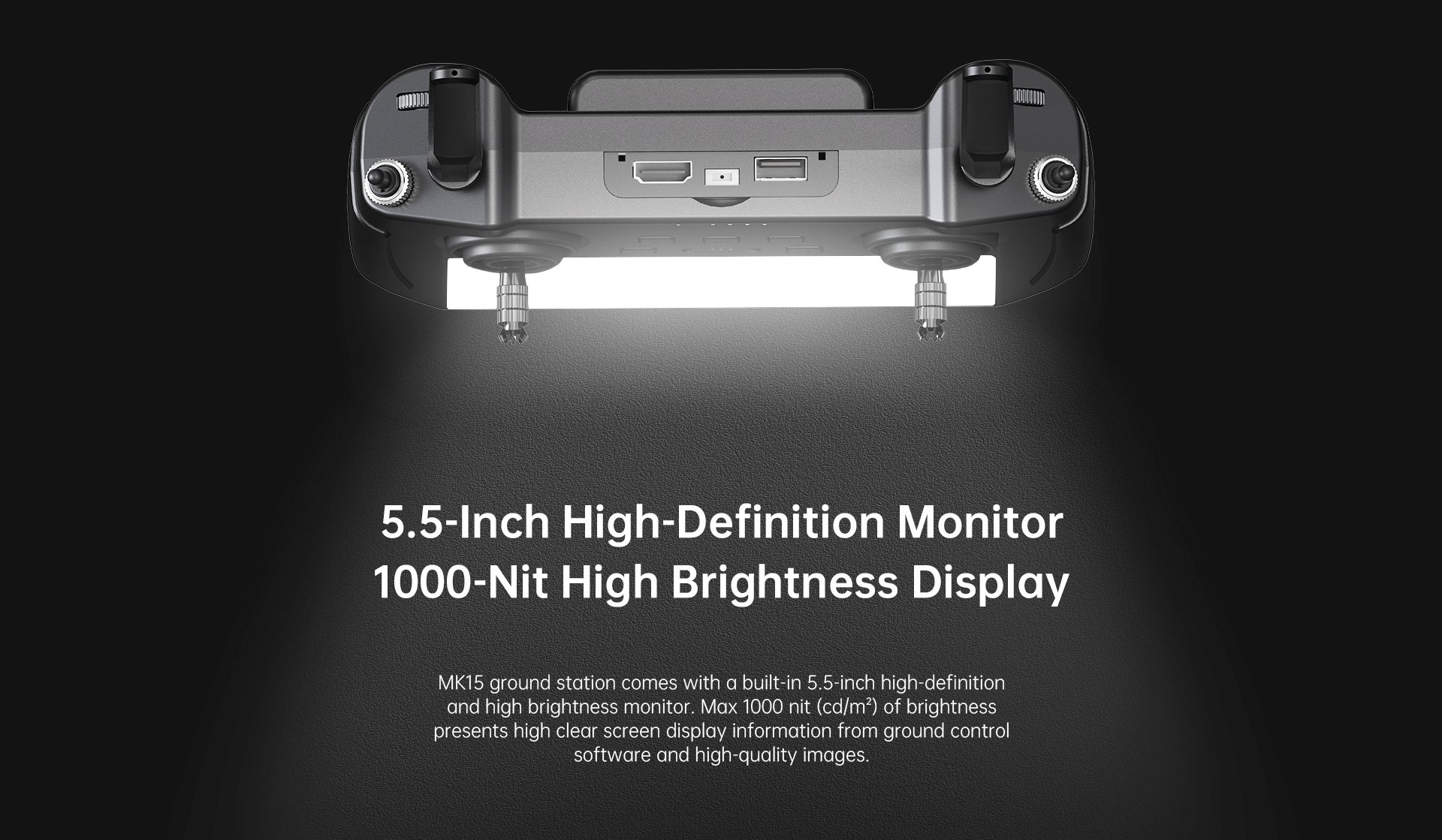

| Monitor | 5.5-inch High Definition and High Brightness LCD Touchscreen |
| System | Android 9.0 OS |
| 2G RAM, 16G ROM | |
| Battery Capacity & Type | 10200 mAh 7.4V 2S Li-ion, 75.48 Wh |
| Fast Charging Protocol | PD 20W |
| Charging Tme | 5 hours (PD 20W) |
| Battery Life | 13 hours |
| Antenna Gain | Omni Antenna: 5 dBi |
| Long Range Antenna: 11 dBi (included in enterprise edition) | |
| Lollipop Antenna: 5 dBi (optional) | |

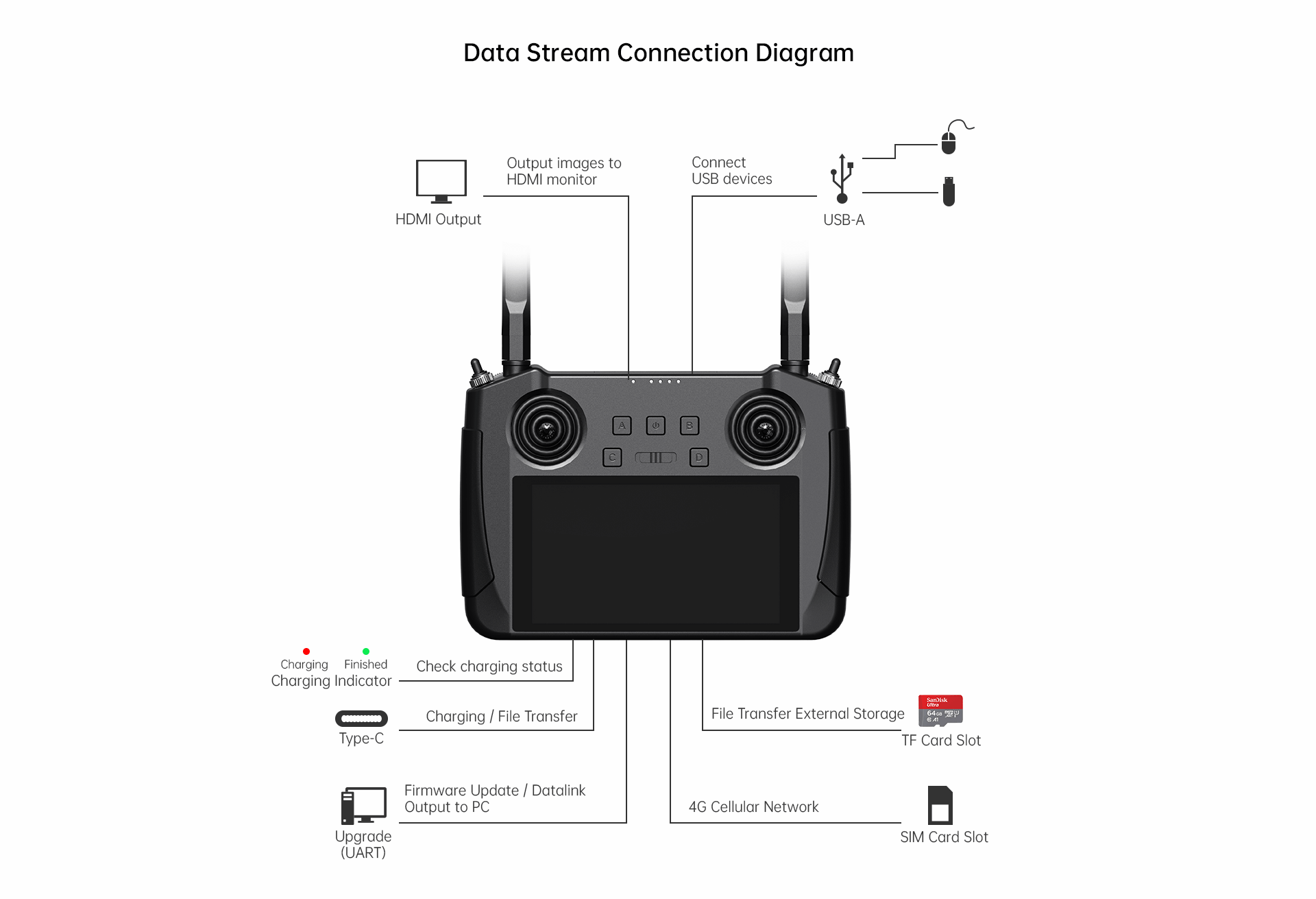

| Interface & Ports | Video Output: Standard HDMI *Enterprise edition only |
| External Device (Mouse, USB Disk): USB-A | |
| Charging: Type-C Firmware | |
| Upgrade: Upgrade Port (Bottom GH1.25 4Pin) | |
| File Transfer: Type-C / USB-A | |
| Mobile Network: SIM Card Slot | |
| External Storage: TF Card Slot | |
| Tripod Mount: 1/4-inch Standard Screw Hole | |
| Dimensions (Antenna Overlapped) | 189 x 138 x 41 mm |
| Weight (Antenna Overlapped) | 850 g |
| Waterproof Level | IP53 |
| Working Temperature | -10℃ ~ 50℃ |

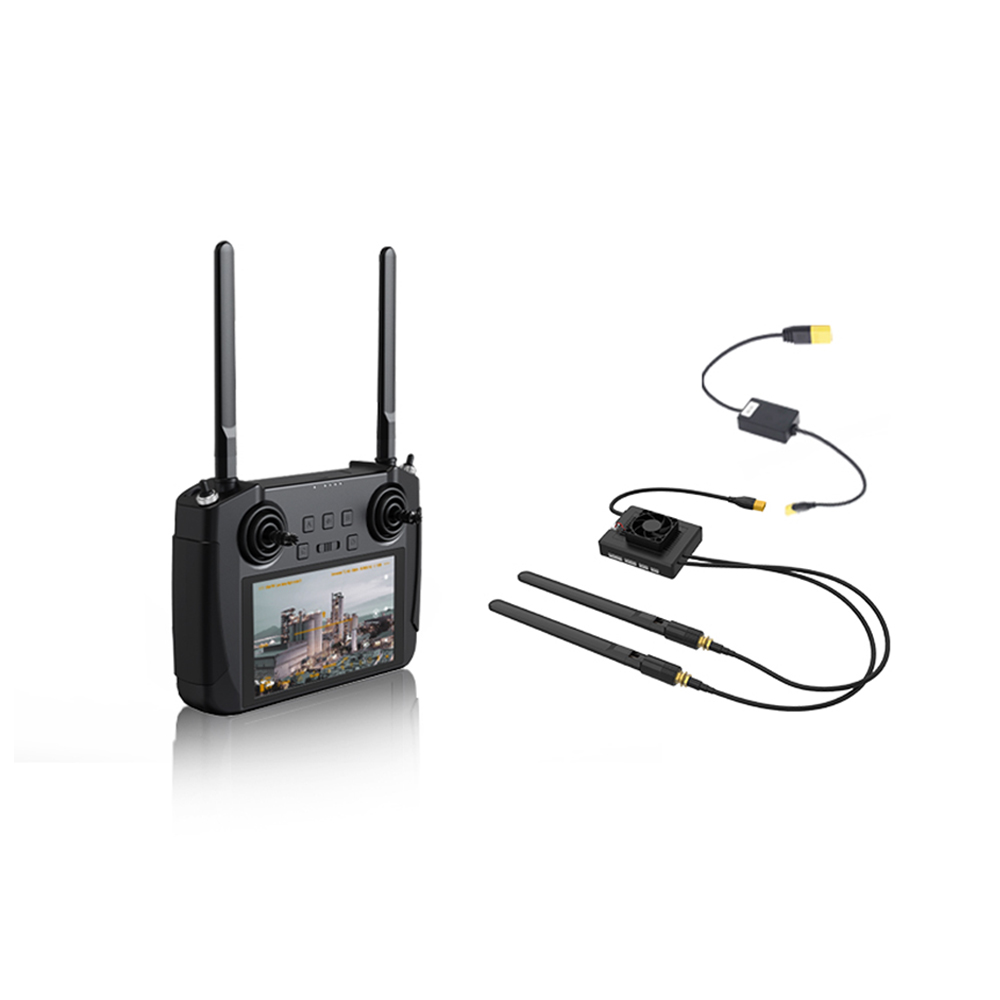

Air Unit
| Signal Output | 16 channels of SBUS |
| 5 channels of PWM | |

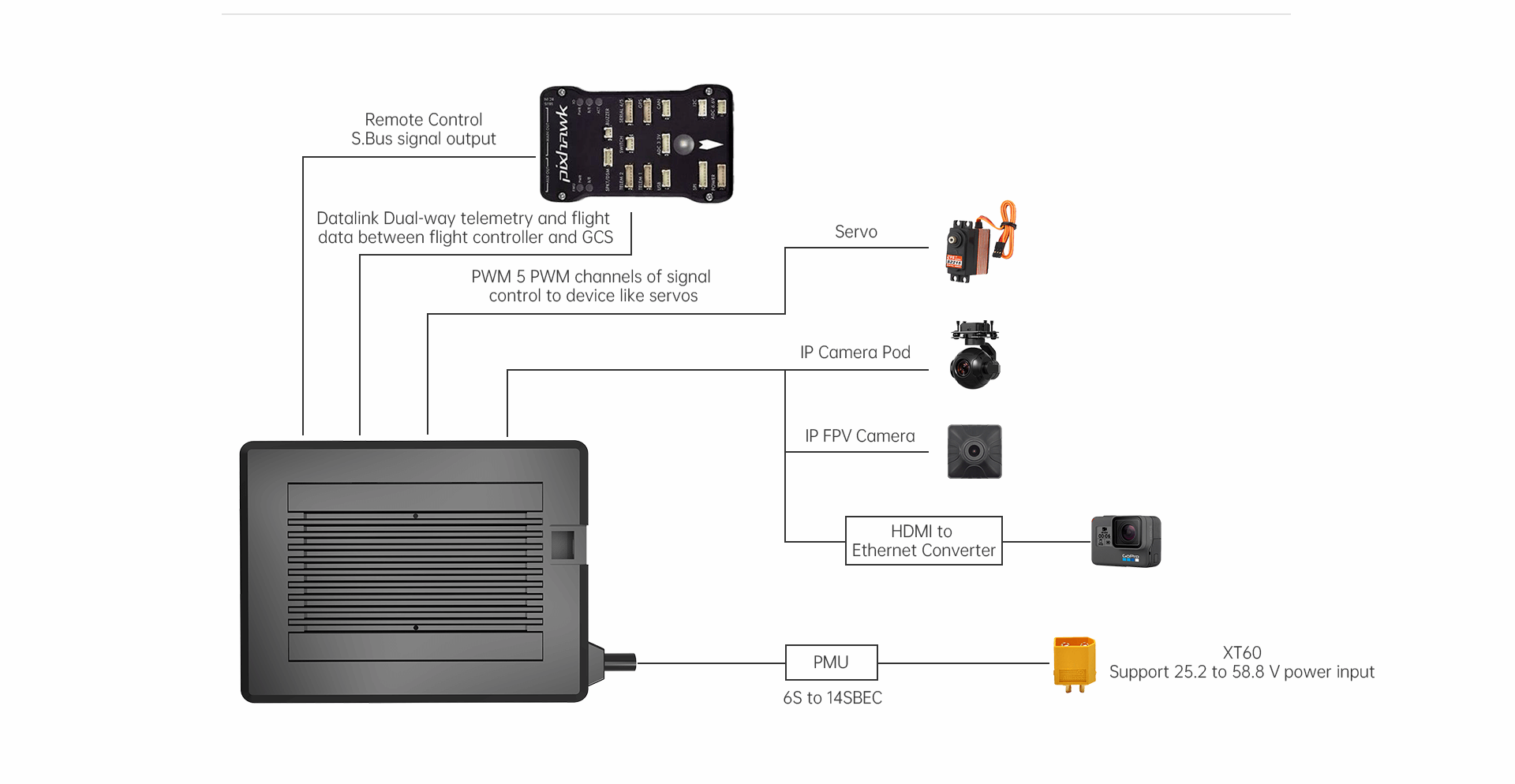

| Interface & Ports | S.Bus RC Signal Output: RC (GH1.25 3-Pin) |
| Datalink (to FC): UART (GH1.25 4-Pin) | |
| PWM Channel 1 to 5: PWM (GH1.25 6-Pin) | |
| Video Input / Network Communication: LAN (GH1.25 8-Pin) | |
| Firmware Upgrade: Type-C | |
| Antenna Gain | Omni Antenna: 5 dBi |
| Lollipop Antenna: 5 dBi (optional) | |
| Working Voltage | MK15 Air Unit (included in MK15 agriculture edition): |
| 4S ~ 18S / 16.8 ~ 75.6 V | |
| (Early manufacturing lots support only 6S to 14S, please carefully confirm) | |
| HM30 Air Unit (included in MK15 enterprise edition and MK32): | |
| 3S ~ 6S / 12.6 ~ 25.2 V | |
| (Early manufacturing lots of MK15 enterprise edition came with MK15 air unit) | |
| (Early manufacturing lots of HM30 air unit support only 3S to 4S, please carefully confirm) | |
| 4S to 18S Power Module (included in MK15 enterprise edition and MK32): | |
| 16.8 ~ 75.6 V | |
| Power Consumption | MK15 Air Unit (included in agriculture edition): |
| – Average: 3.2 W | |
| – Summit: 12 W | |
| HM30 Air Unit: | |
| – Average: 2.8 W | |
| – Summit: 12 W | |
| HM30 Air Unit + 4S to 18S Power Module: | |
| – Average: 3.2 W | |
| – Summit: 12 W | |
| Dimensions (Antenna excluded) | 70 x 55 x 16 mm (fan included) |
| Weight (Antenna excluded) | MK15 Air Unit (included in agriculture edition): |
| 100 g | |
| HM30 Air Unit: | |
| 74 g | |
| HM30 Air Unit + 4S to 18S Power Module: | |
| 109 g | |
| Working Temperature | -10℃ ~ 50℃ |

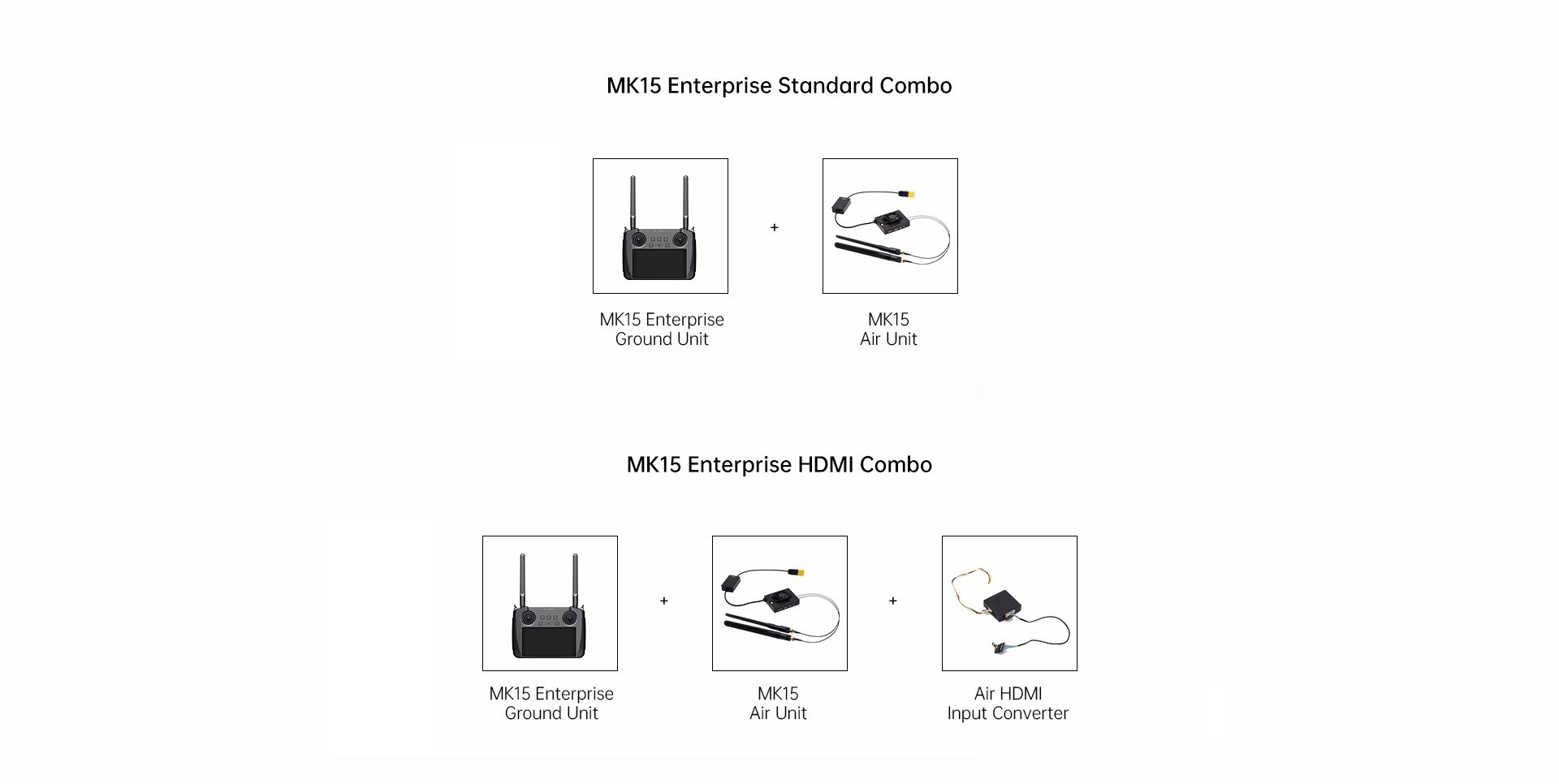

Air Unit HDMI Input Converter (Optional, packed with MK32 / MK15 HDMI combo)
| Video Input | Micro HDMI |
| Video Output | Ethernet |
| Working Voltage | 12 V |
| Power Consumption | 3 W |
| Video Recording Resolution | 1080p (1920 × 1080) @ 30 fps |
| 720p (1080 × 720) @ 30 fps | |
| Video Storage Birate | 12 Mbps (H265 codec) |
| File Storage Format | FAT32 |
| Video Recording Format | H265 |
| Supported TF / SD Card Type | MicroSD Class10, Less than 32GB |
| Dimensions | 42*41*11 mm |
| Weight | 26 g |
| Working Temperature | -10℃ ~ 50℃ |

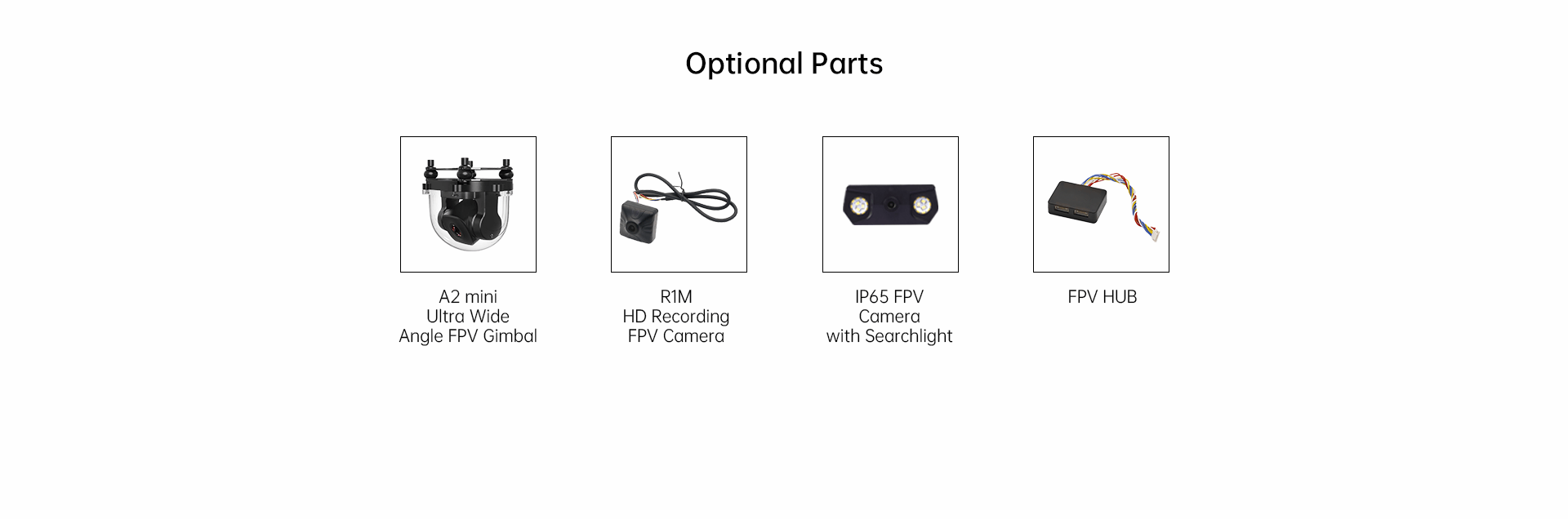

R1M Recording FPV Camera (Optional, packed with both HM30 combos)
| Video Output Port | Ethernet |
| Image Sensor | 1/2.9 Inch, 2 MP |
| FOV | Diagonal: 90° |
| Horizontal: 80° | |
| Working Voltage | 12 V |
| Power Consumption | 2.5 W |
| Video Recording Resolution | 1080p (1920*1080) @ 30 fps |
| 720p (1280*720) @ 30 fps | |
| Recording Bitrate | 12 Mbps |
| Video Recording Format | MP4 |
| Supported TF / SD Card Type | MicroSD Class10 |
| Less than 32GB | |
| File Storage Format | FAT32 |
| Dimensions | 42 x 42 x 25 mm |
| Weight | 23 g |
| Working Temperature | -10℃ ~ 50℃ |
