Specs
Overall

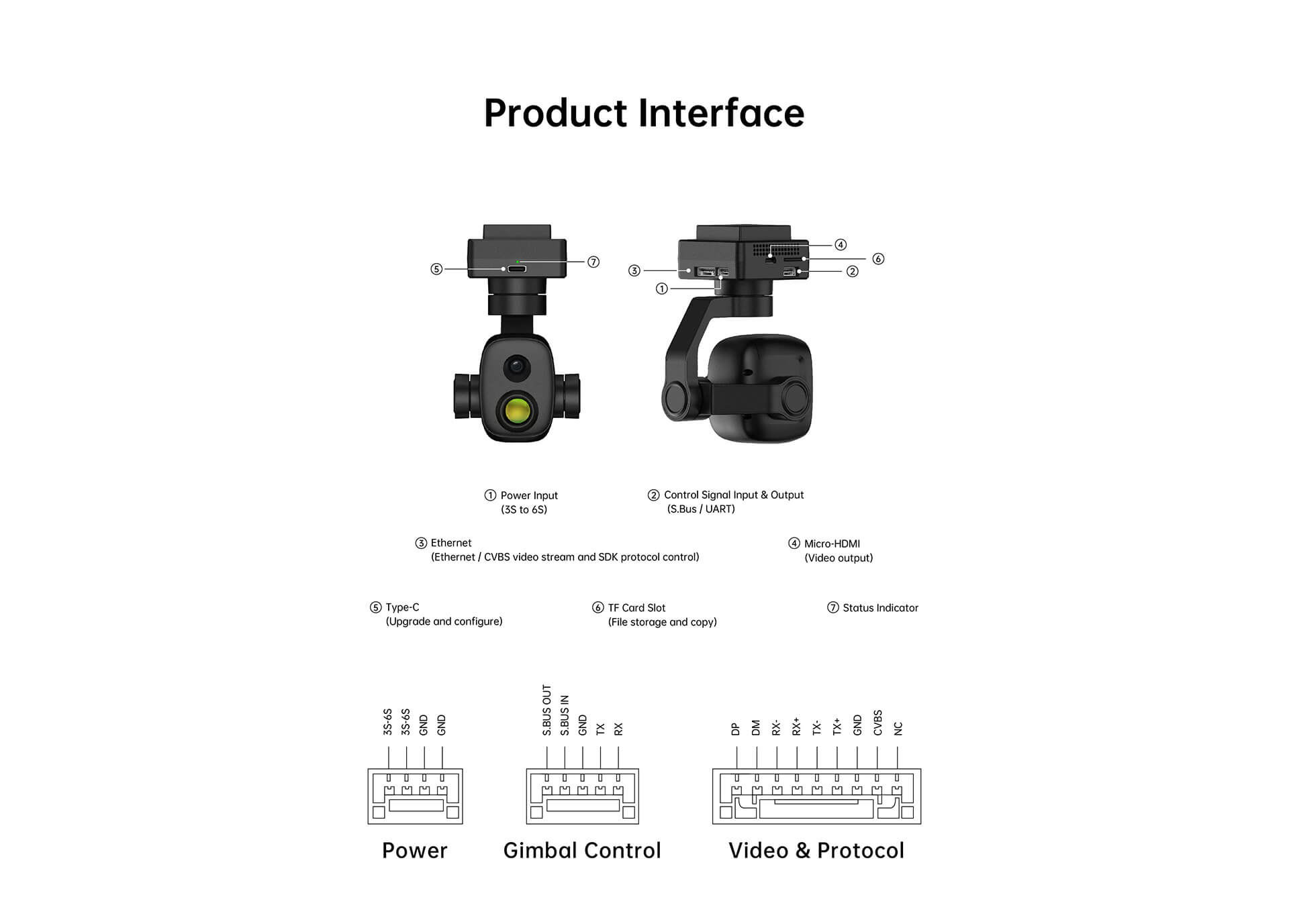

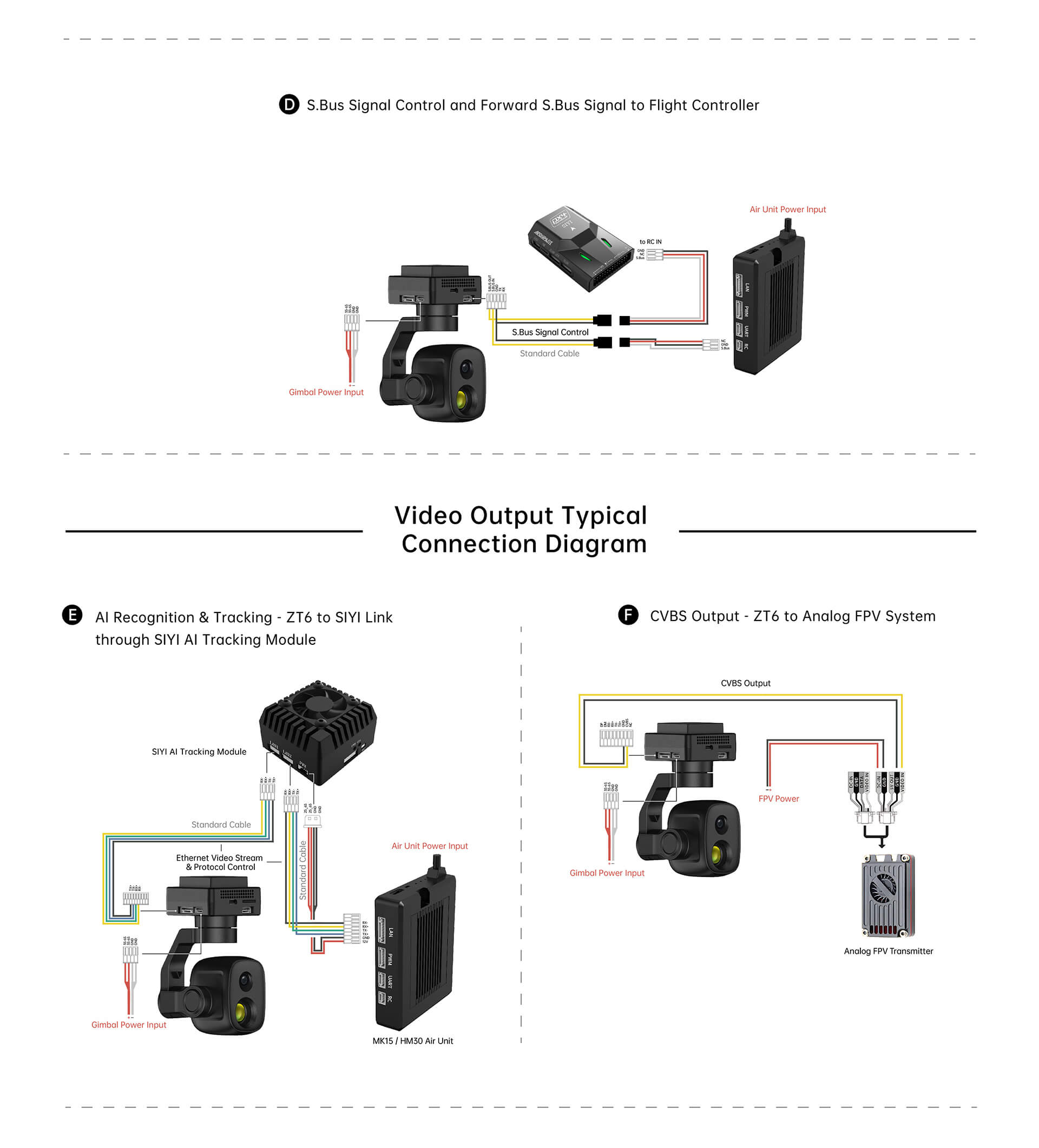

| Video Output Port | Ethernet / CVBS |
| Micro-HDMI | |

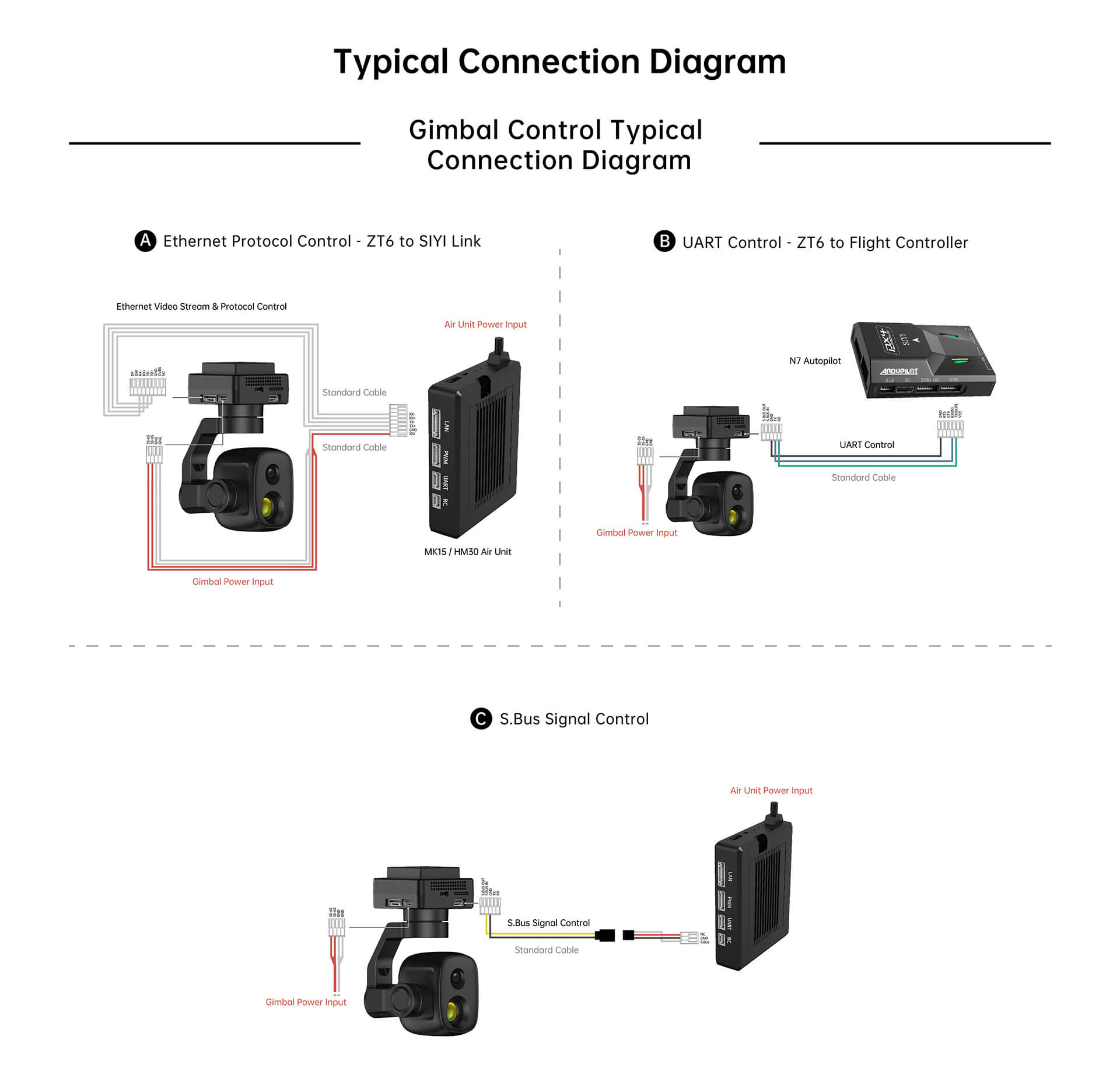

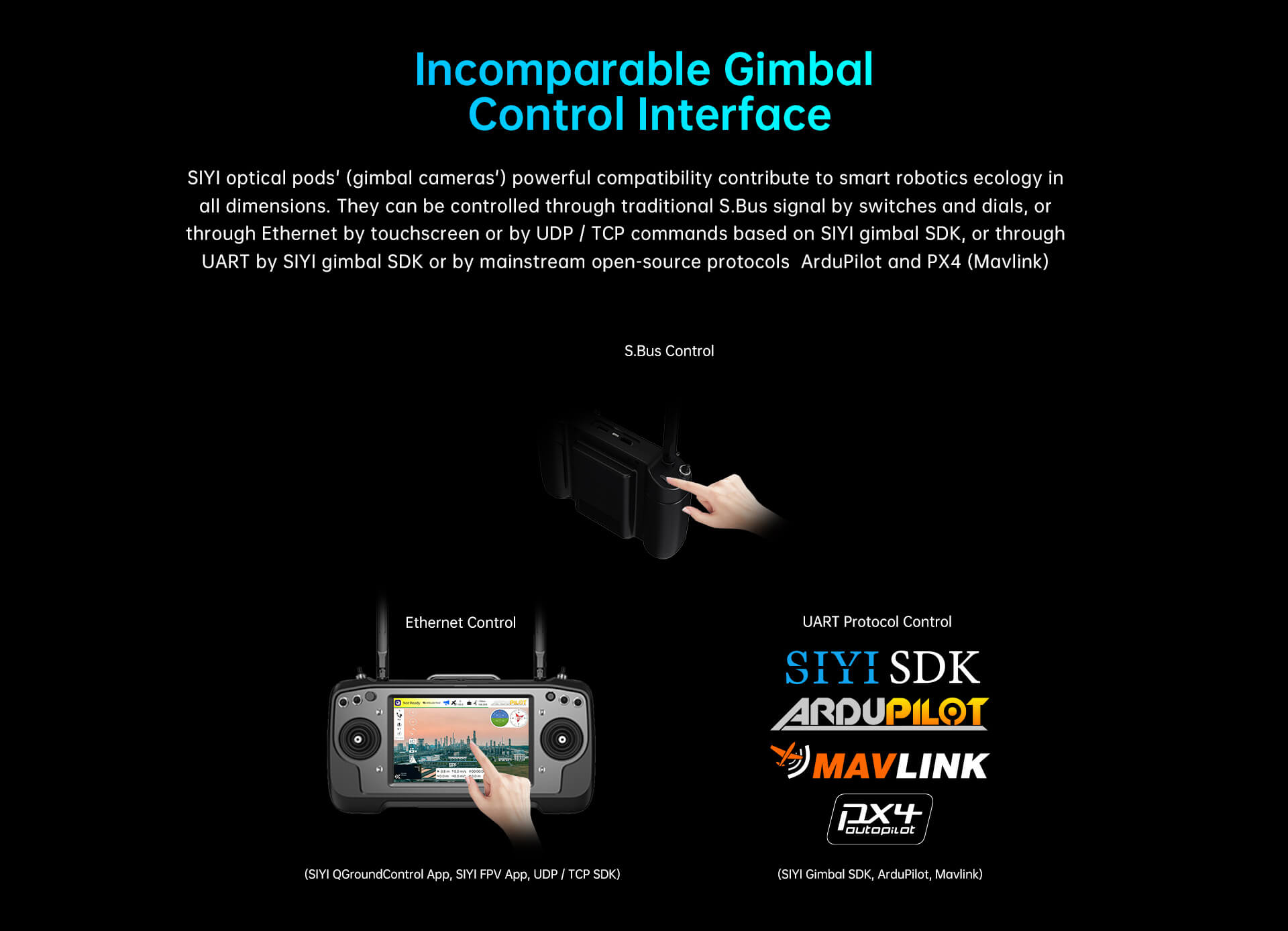

| Control Signal Input Port | S.Bus |
| UART | |
| Ethernet UDP / TCP | |
| Control Signal Output Port | S.Bus |
| High Accuracy 3 Axis Stabilization | Yaw |
| Pitch | |
| Roll | |
| Working Voltage | 11 ~ 25.2 V |
| Power Consumption | Average 6.5 W |
| Summit 15 W | |
| Waterproof Level | IP53 |
| Working Temperature | -10 ~ 50 ℃ |
| Dimension | 73.5 x 75 x 131.5 mm |
| Weight | Excluding Anti-Vibration Board: 177 g |
| Including Anti-Vibration Board: 197 g |

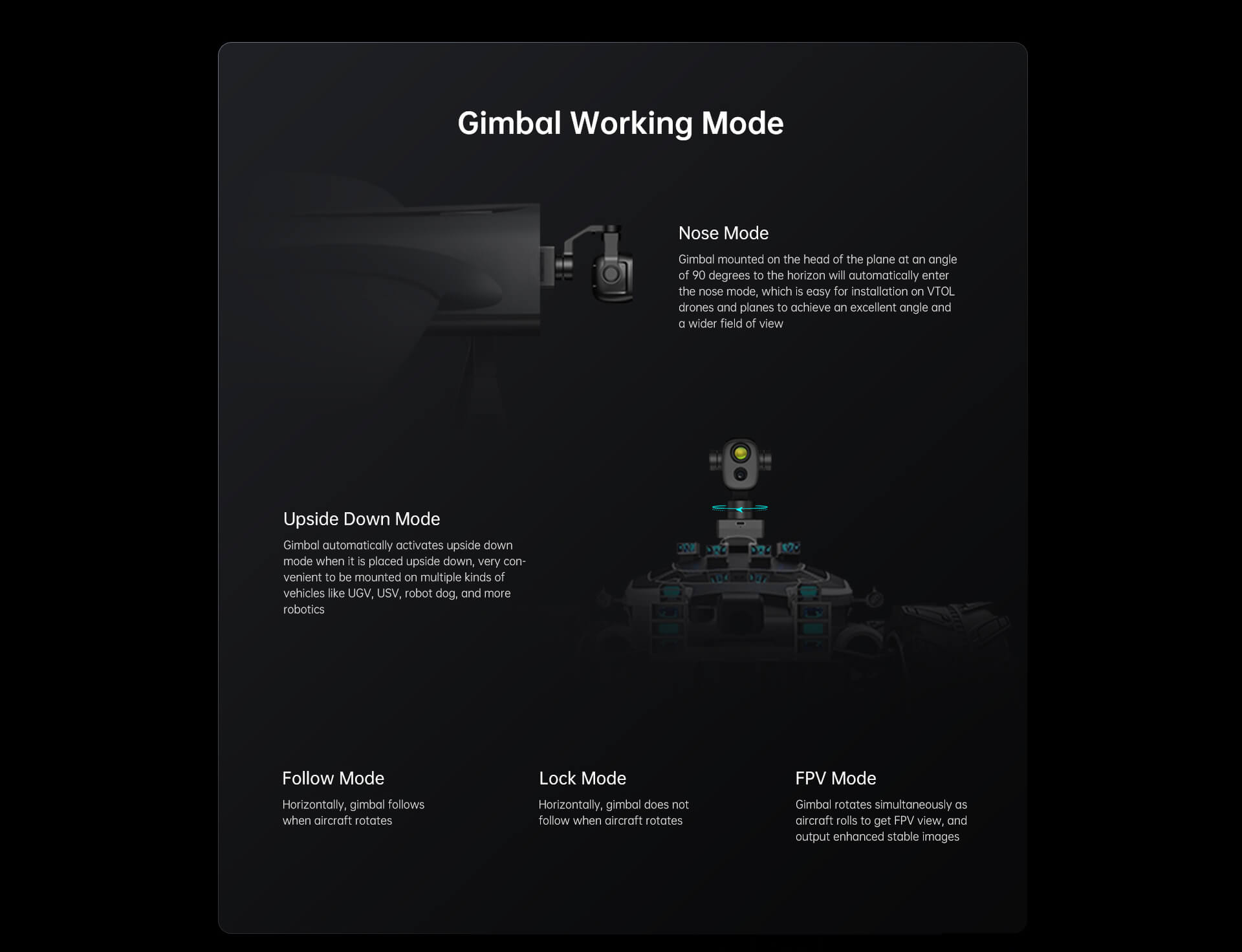

Gimbal
| Angular Vibration Range | ±0.01° |
| Controllable Pitch Angle | -90° ~ +25° |

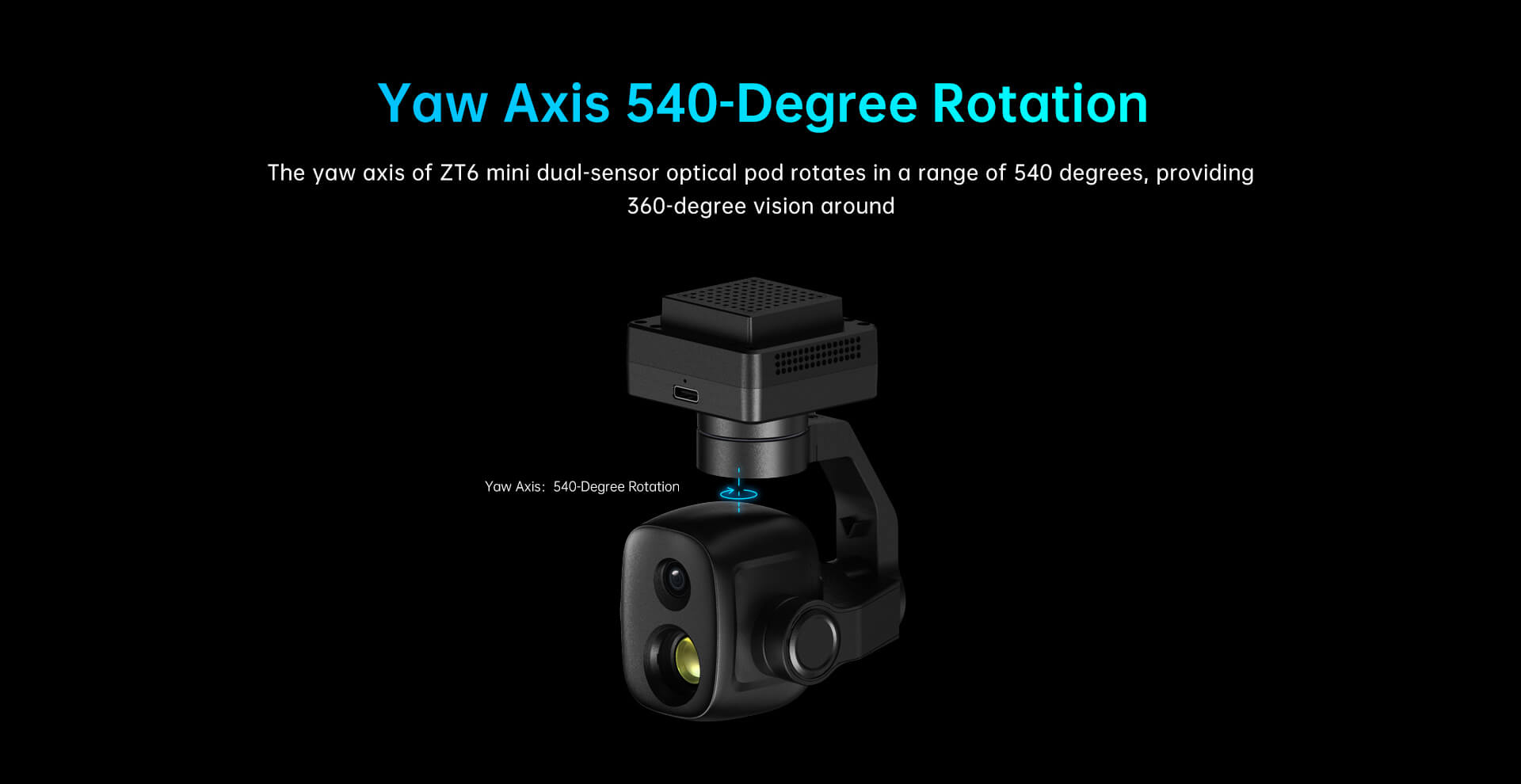

| Controllable Yaw Angle | -270° ~ +270° |
| Rotatable Roll Angle | -45° ~ +45° |

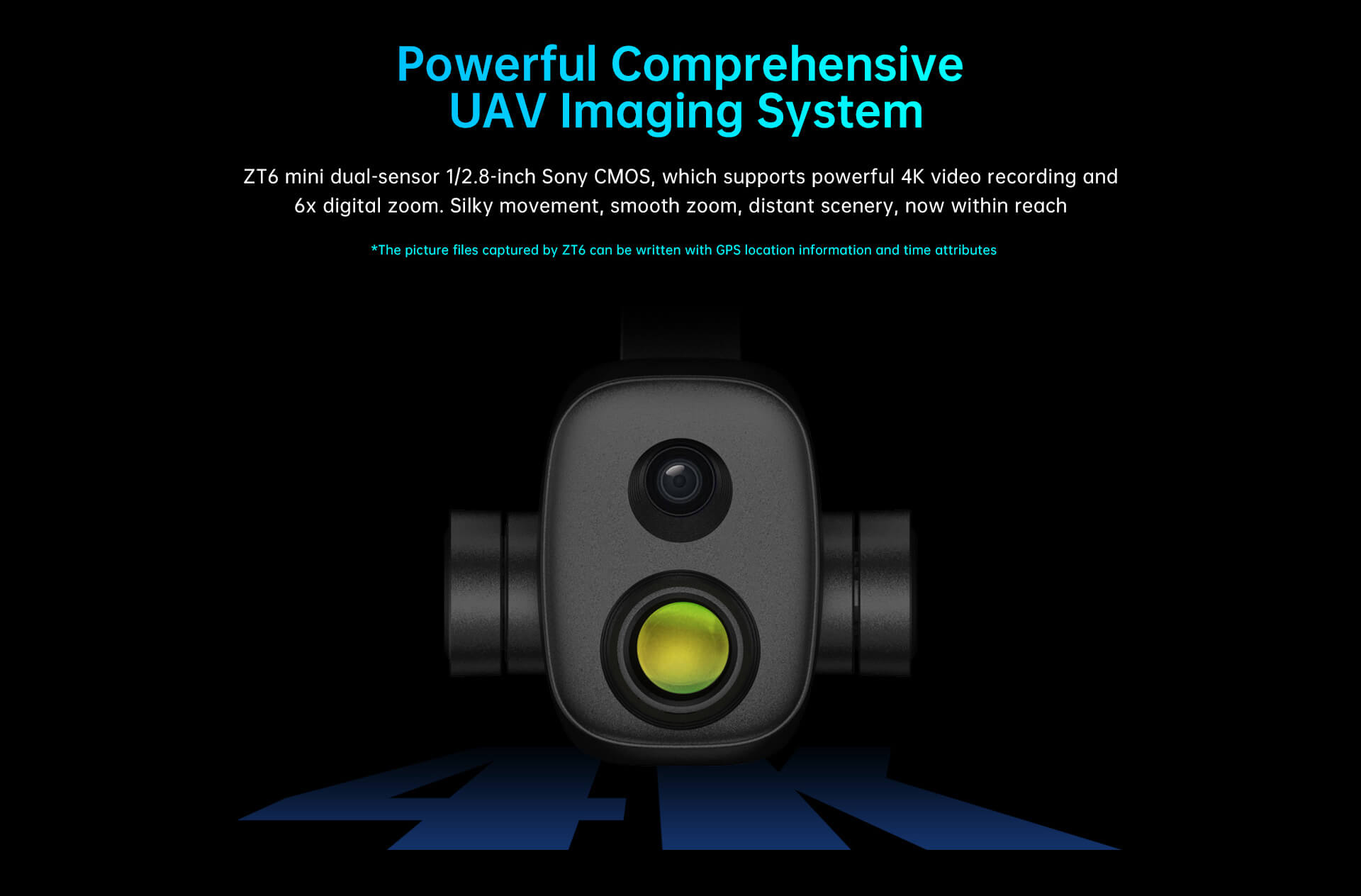

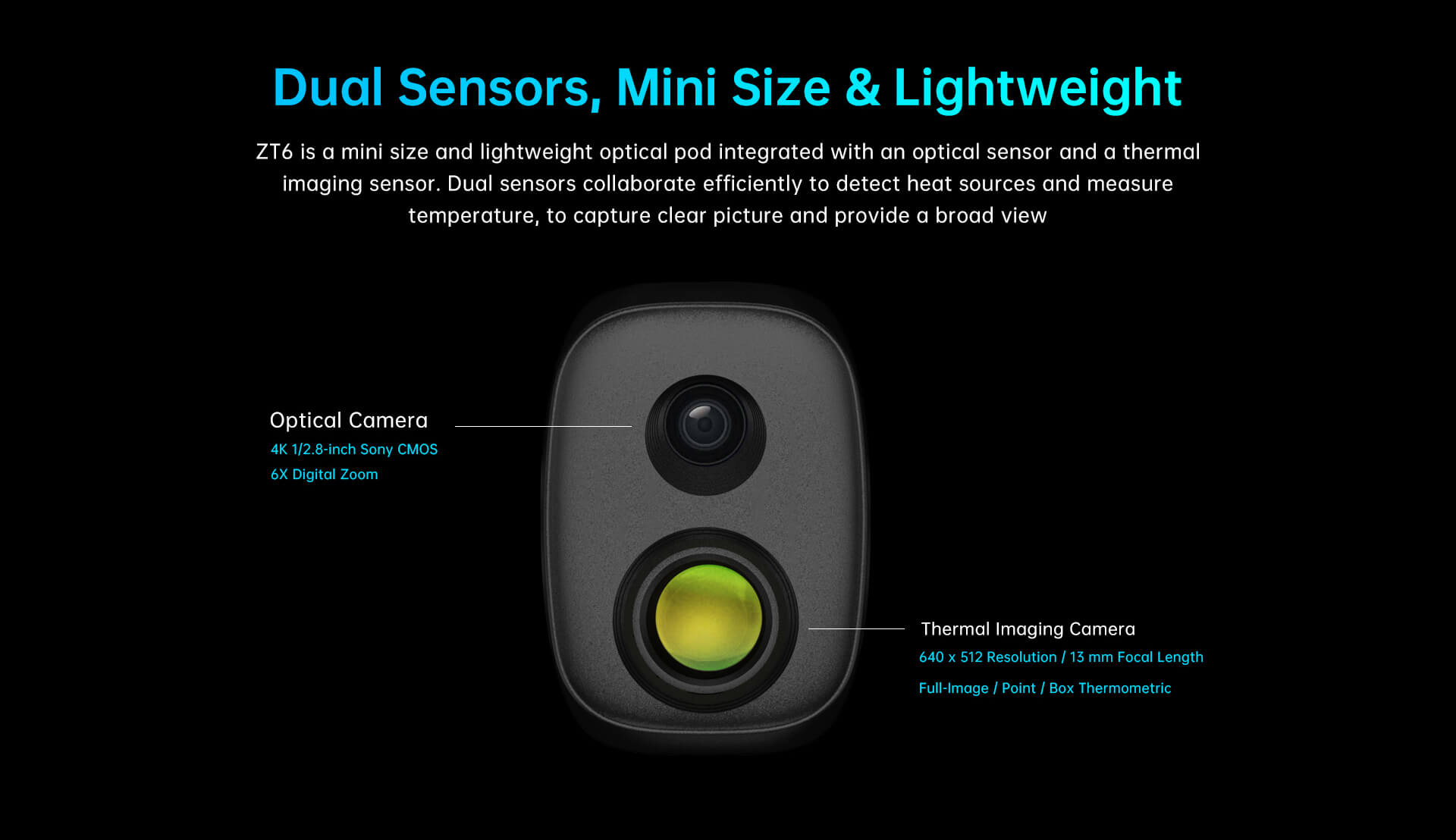

Optical Camera
| Lens | Fixed Focal Length |
| 6x Digital Zoom | |
| Equivalent Focal Length | 20 mm |
| Image Sensor | Sony 1/2.7 Inch CMOS |
| 8 MP Effective Resolution | |
| Aperture | F2.8 |
| FOV | Diagonal 93° |
| Horizontal 84.5° | |
| Video Recording Resolution | 4K (3840 x 2160) @ 30 fps |
| 2K (2560 x 1440) @ 30 fps | |
| 1080p (1920 x 1080) @ 30 fps | |
| 720p (1280 x 720) @ 30 fps | |
| Still Photo Resolution | 4K (3840 x 2160) |

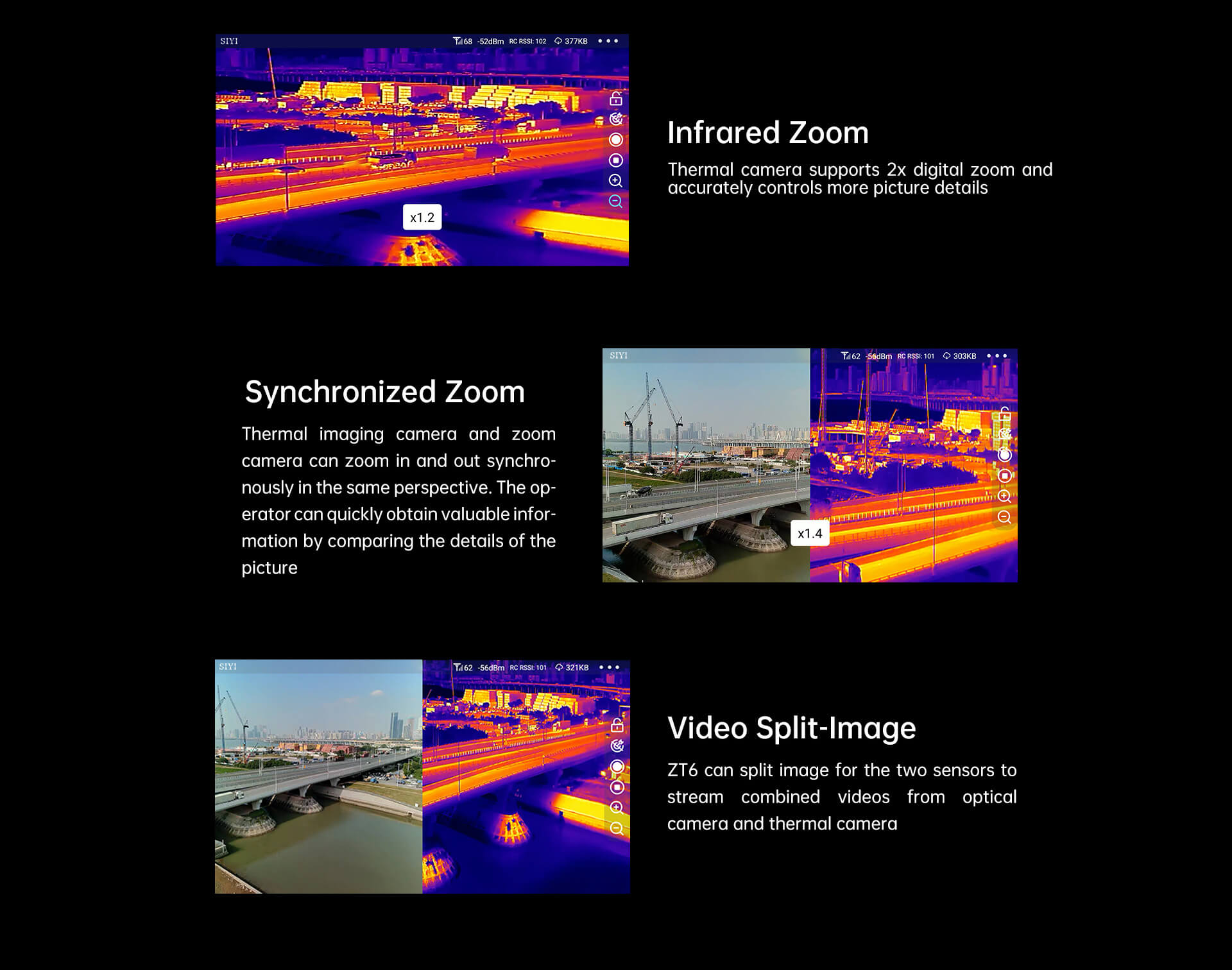

Thermal Imaging Camera
| Thermal Sensor | Uncooled VOx Microbolometer |
| Resolution | 640 x 512 |
| Zoom | 2X Digital |
| Lens | Focal Length: 13 mm |
| Aperture: F1.0 | |
| Fixed Focus | |
| Athermalization | |
| Wavelength Range | 8 ~ 14 um |
| Temperature Measuring Range | High Gain: -20 ~ +150℃ |
| Low Gain: 50 ~ +550℃ | |
| Temperature Measuring Accuracy | ±2℃ (-20 ~ +150℃) |
| ±5℃ (50 ~ +550℃) | |

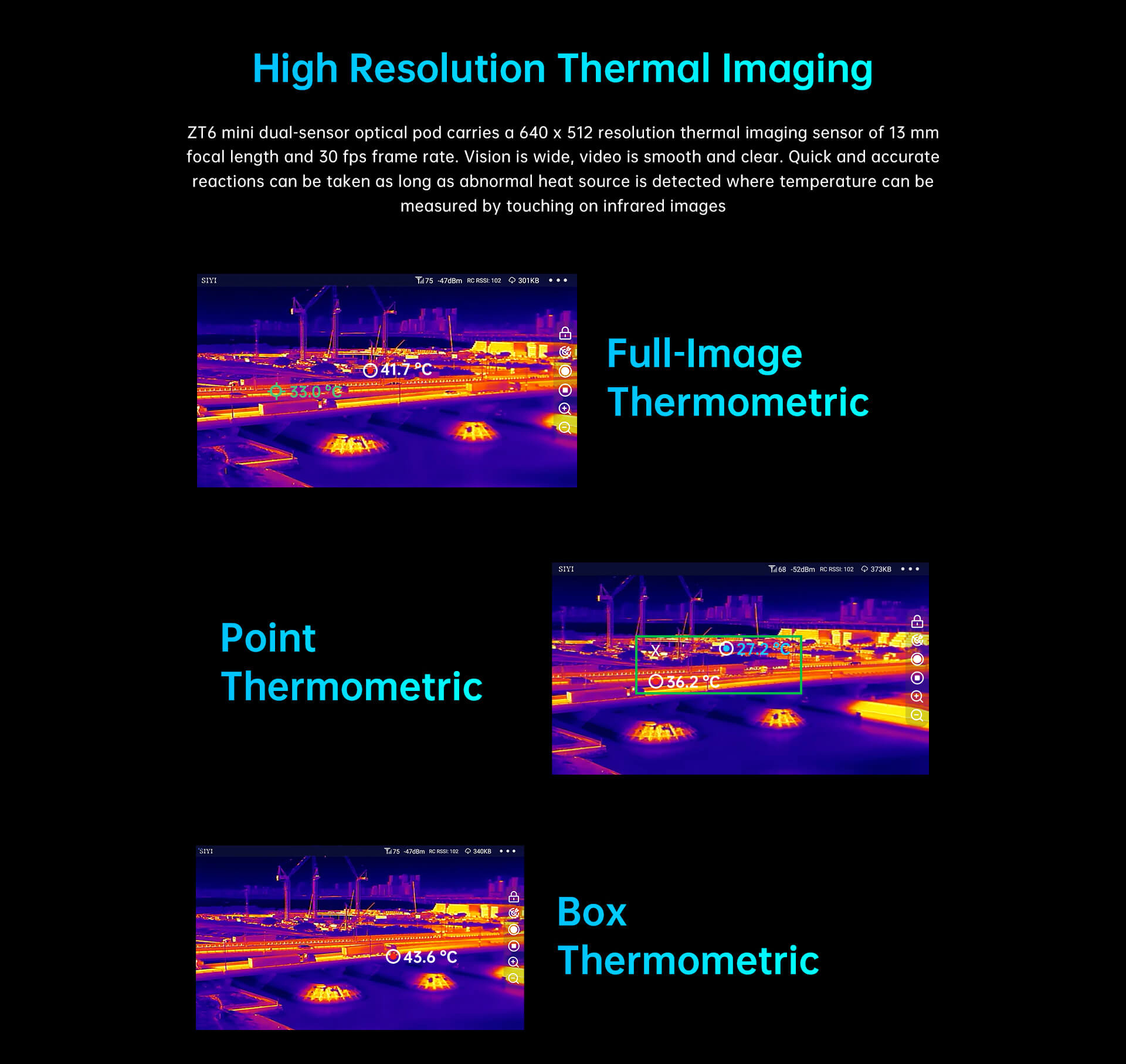

| Temperature Measuring Mode | Point Anywhere Measurement |
| Full Image Measurement | |
| Selected Box Measurement |
General Camera Specs
| Video Storage Bitrate | 15 Mbps (H.265 Codec) |
| File Storage Format | FAT32 |
| ExFAT | |
| Image Format | JPG |
| Video Format | MP4 |
| Supported MicroSD Cards | MicroSD Class10, Max 256 GB |
| Still Photography Mode | Single |
| White Balance | Auto |
