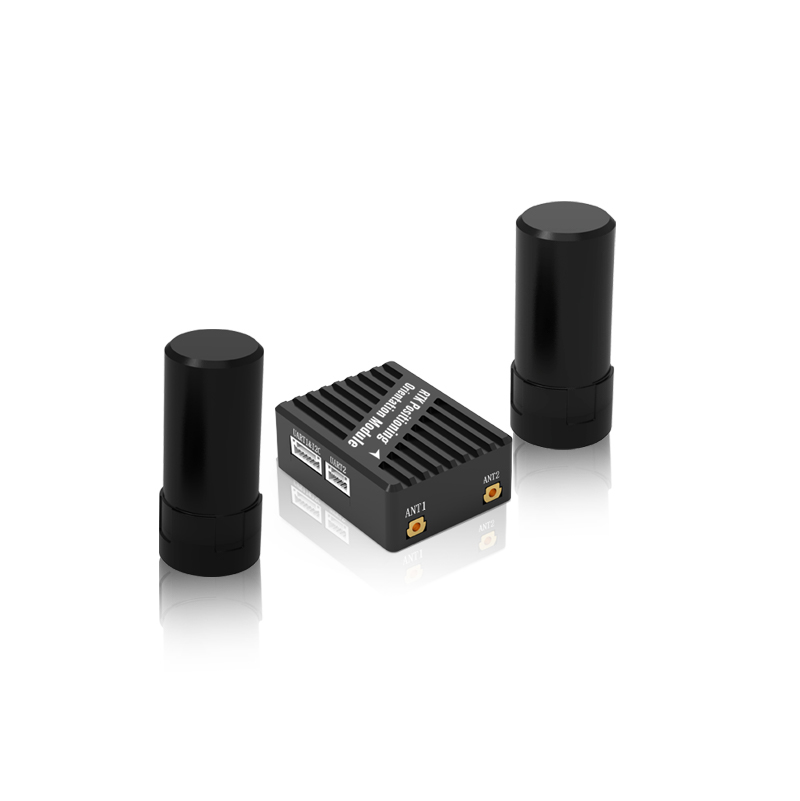

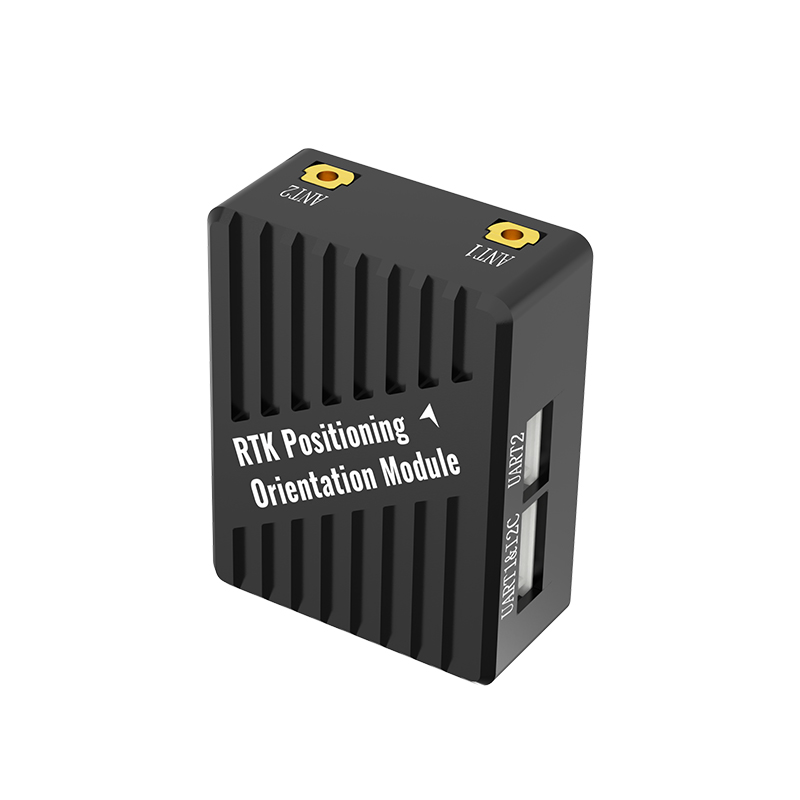

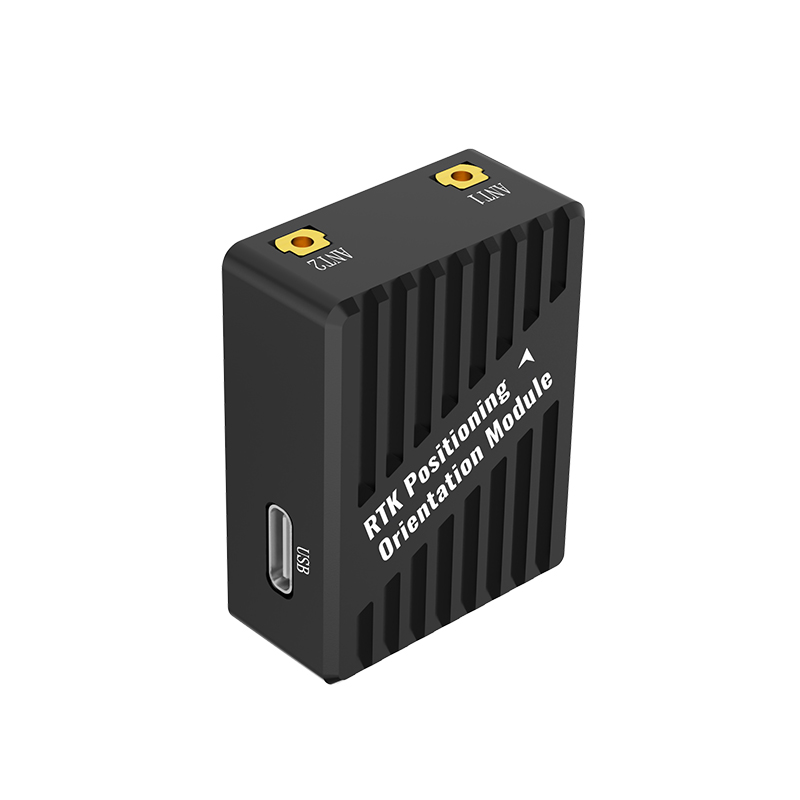

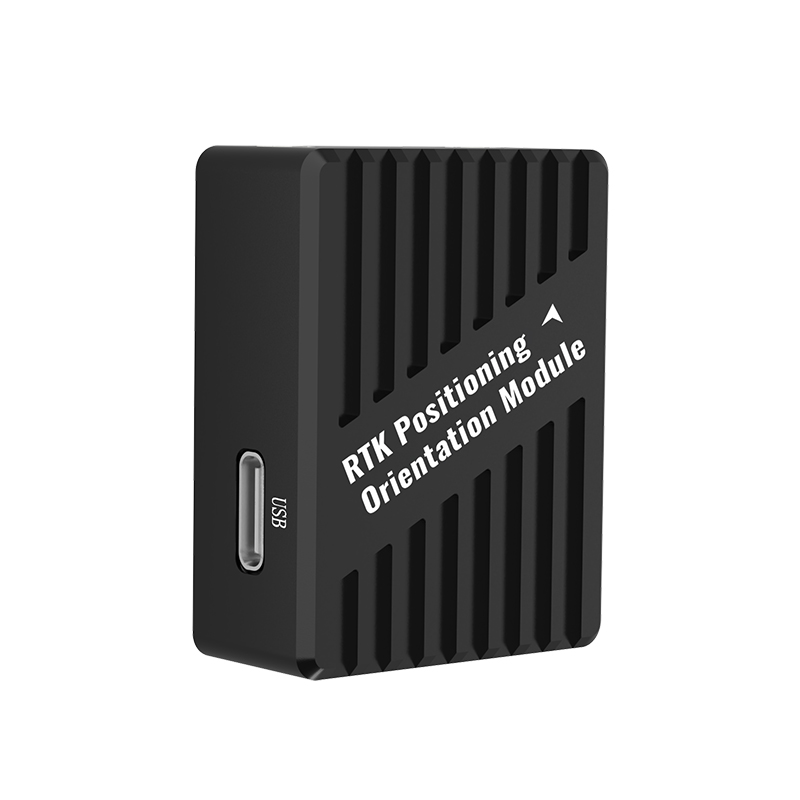

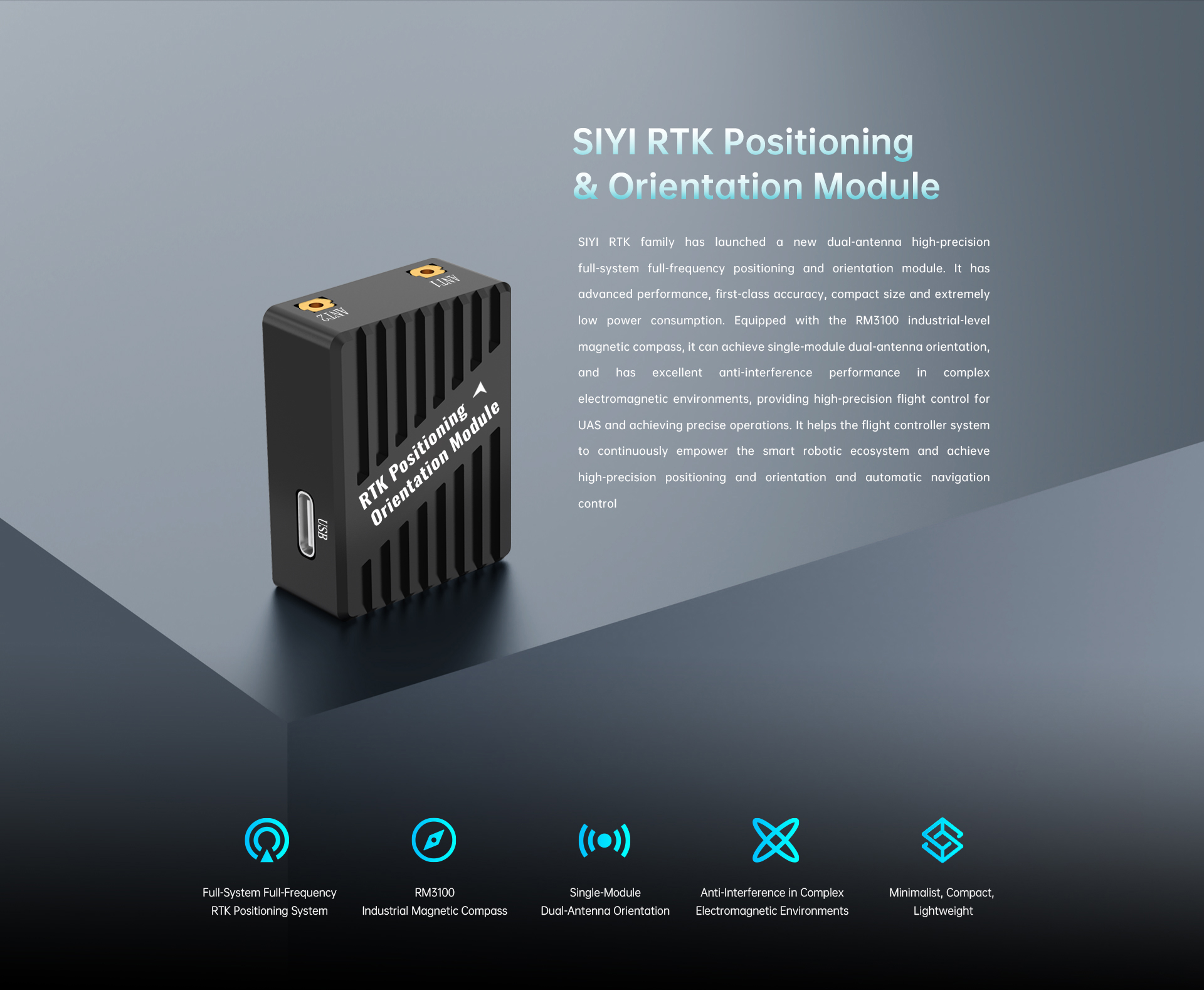

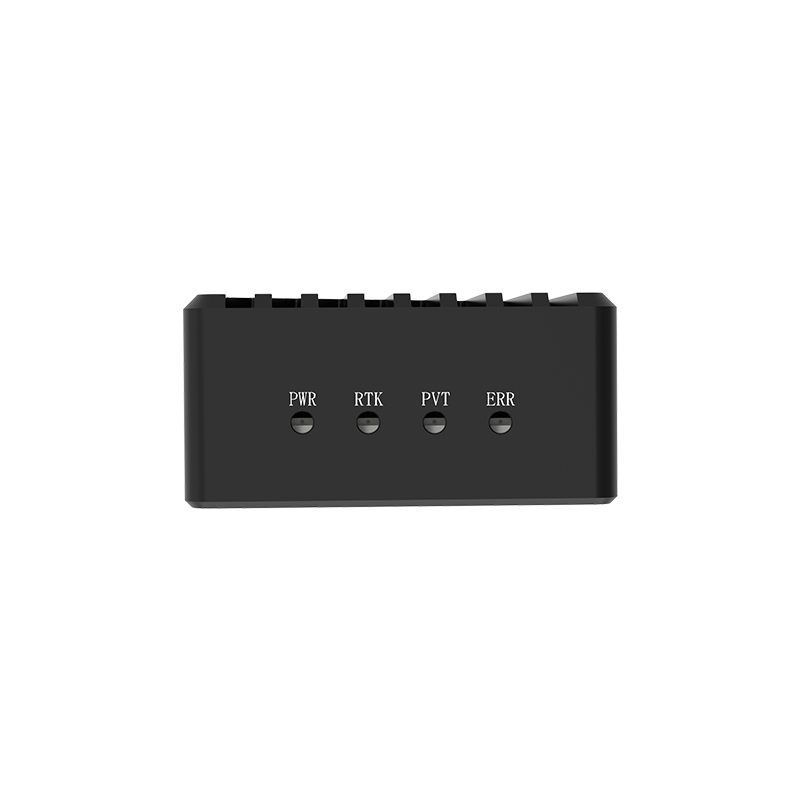

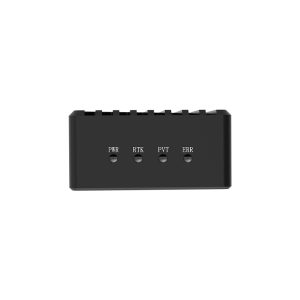

SIYI RTK Positioning & Orientation Module

Full-System Full-Frequency RTK Positioning System
RM3100 Industrial Magnetic Compass

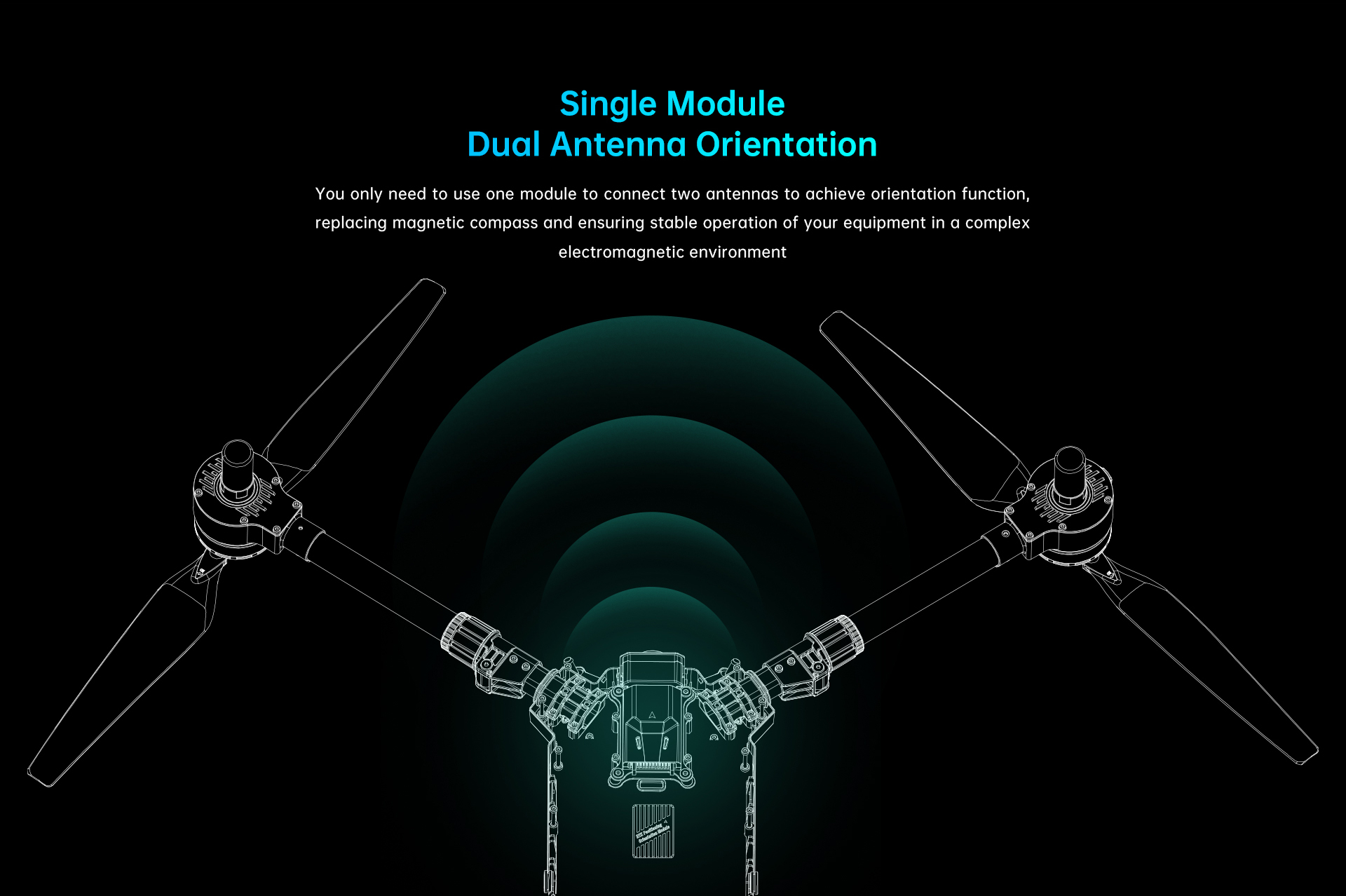

Single-Module Dual-Antenna Orientation
Anti-Interference in Complex Electromagnetic Environments

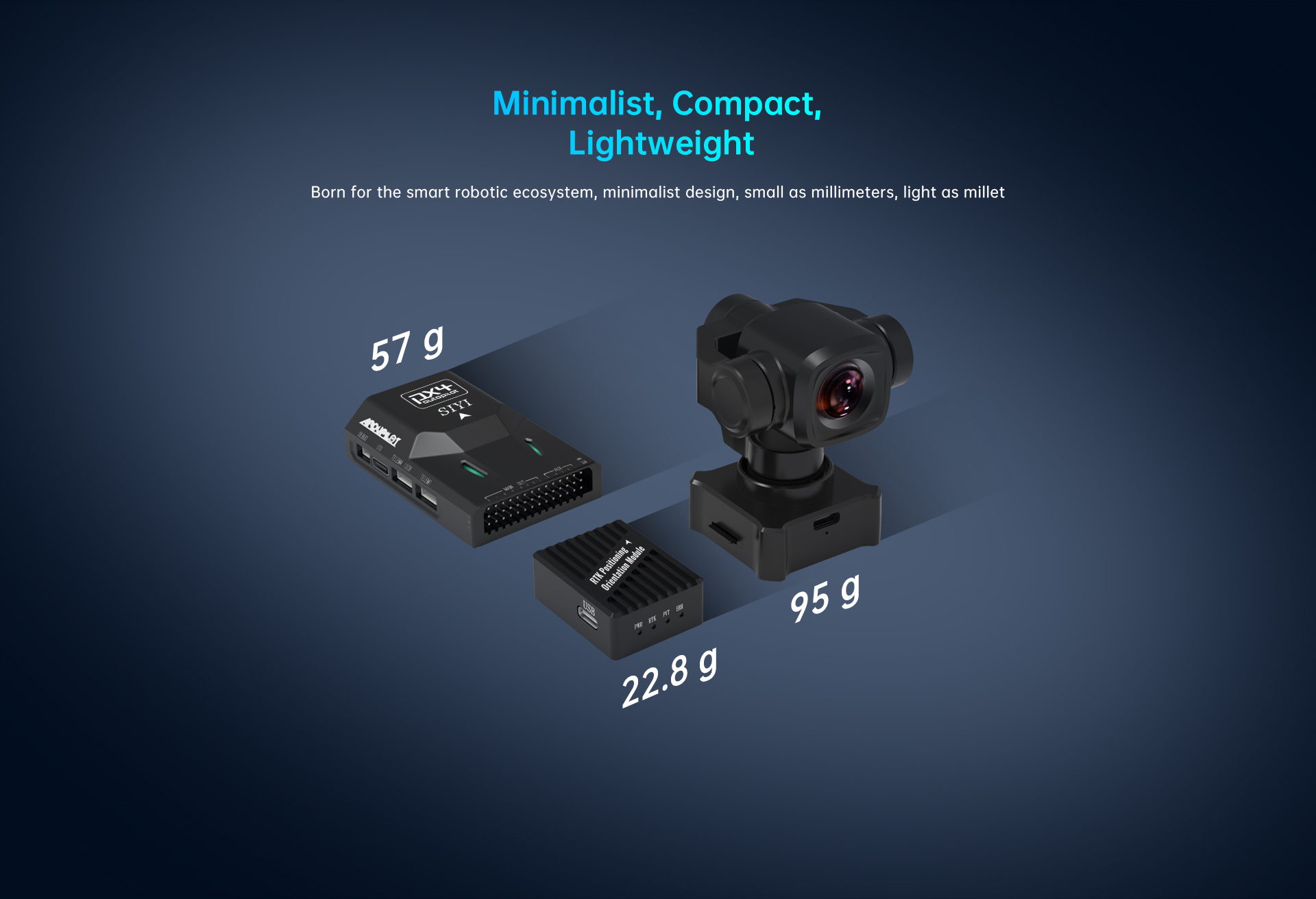

Minimalist, Compact, Lightweight

SKU: HG0100035 Category: Module

Dear customer:

Welcome to HobbyGet website. we sincerely invite you to join ourexclusive membership and become our member, You will be able to enjoyour membership price and more services!

Specs

Hardware

Electronic Compass	PNI RM3100
Satellite Navigation System	GPS
	GLONASS
	Beidou
	Galileo
	QZSS
Satellite Bands	Antenna 1:
	Beidou – B1I, B2I, B3I
	GPS- L1C/A, L2P(Y) / L2C, L5
	GLONASS – L1, L2
	Galileo – E1, E5a, E5b
	QZSS – L1, L2, L5

	Antenna 2:
	Beidou – B1I, B2I, B3I
	GPS – L1C/A, L2C
	GLONASS – L1, L2
	Galileo – E1, E5b
	QZSS – L1, L2

Overall

Positioning Accuracy	Horizontal: 0.8 cm + 1 PPM
Positioning Accuracy	Elevation: 1.5 cm + 1 PPM
Orientation Accuracy (Dual Antenna)	Baseline 1 meter, orientation accuracy 0.2 degree
Single Point Positioning	Horizontal: 1.5 m
Single Point Positioning	Elevation: 2.5 m
DGPS Auxiliary Positioning	Horizontal: 0.4 cm + 1 PPM
DGPS Auxiliary Positioning	Elevation: 0.8 cm + 1 PPM
Max Satellites	Single: 28+
Max Satellites	RTK: 50+
Kinematic Data Format	RTCM3.X
GPS Acquisition Time	Cold Start < 30 s
GPS Acquisition Time	Hot Start < 5 s
Antenna Gain	2 dBi
Data Refresh Rate	Default: 5 Hz
Data Refresh Rate	Max: 20 Hz

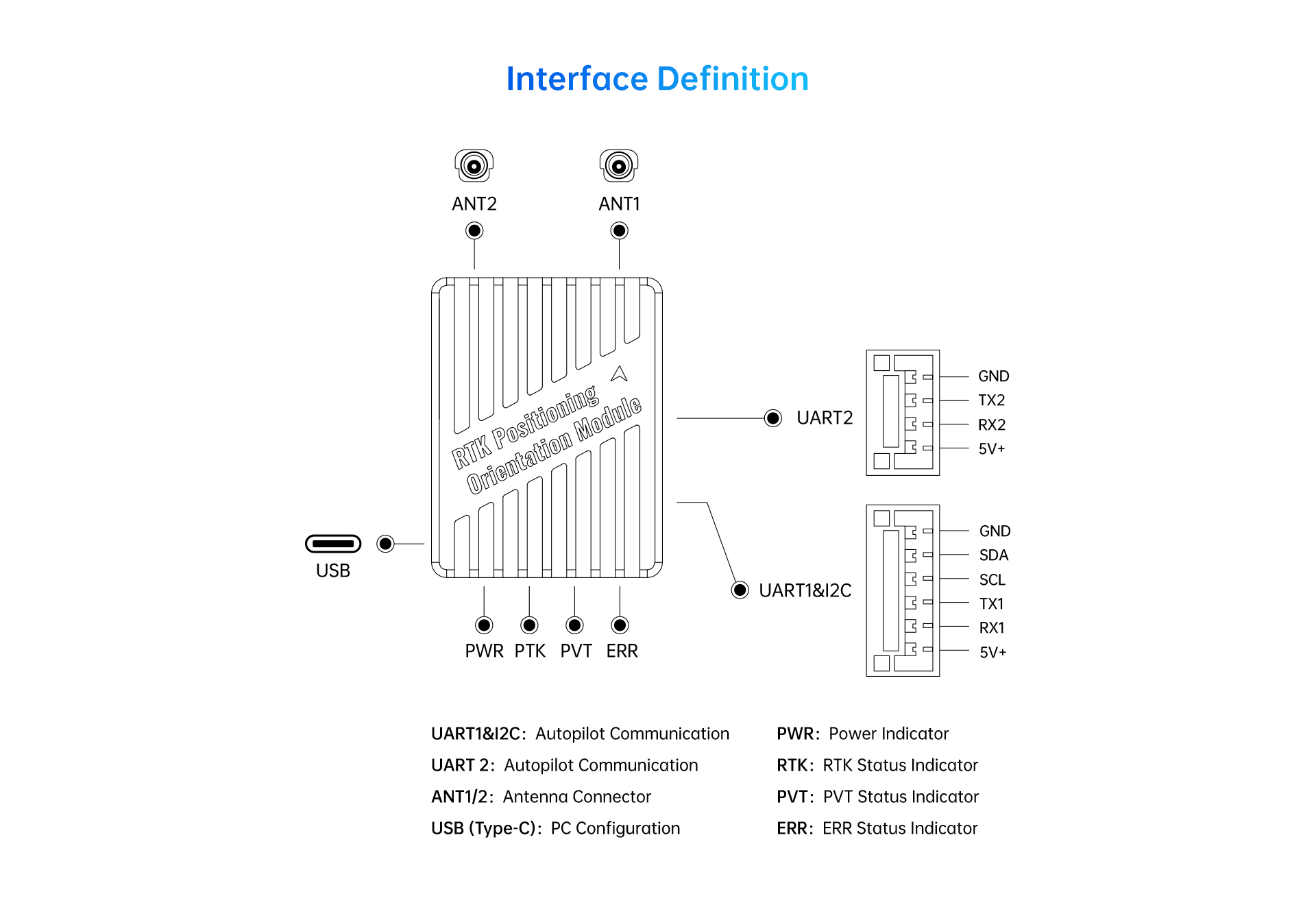

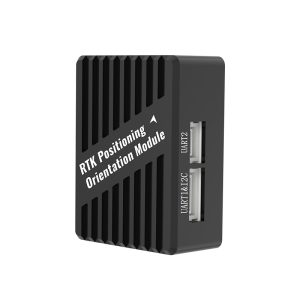

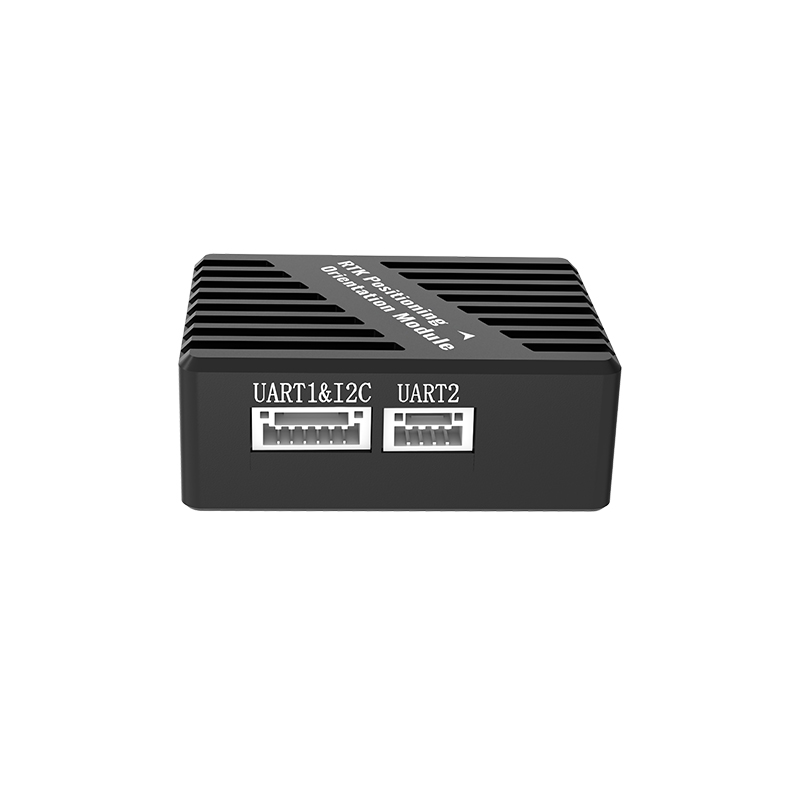

Interfaces	1 x UART & I2C
	1 x UART

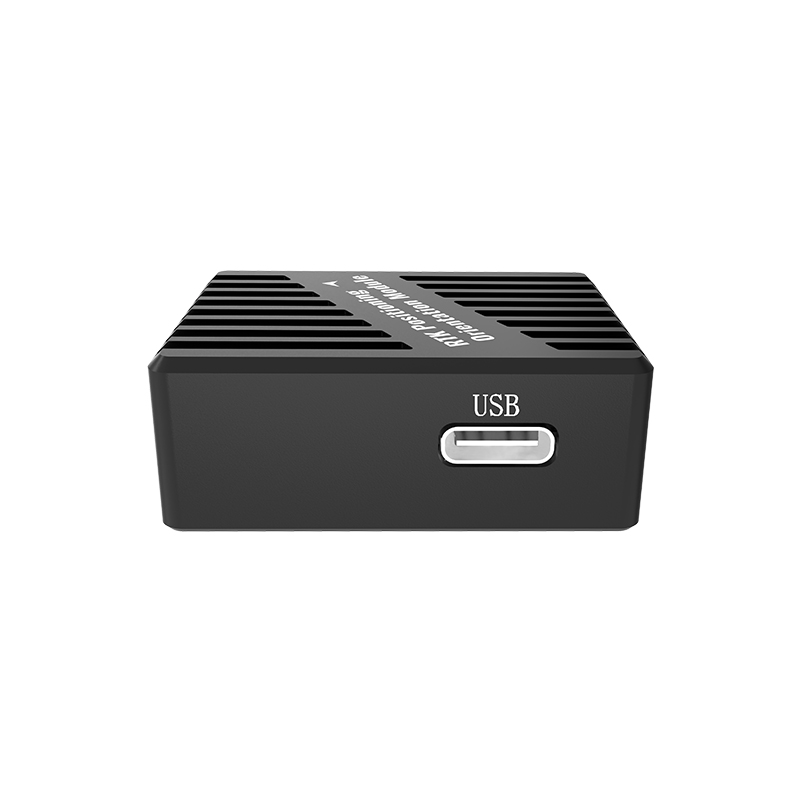

	1 x USB (Type-C)

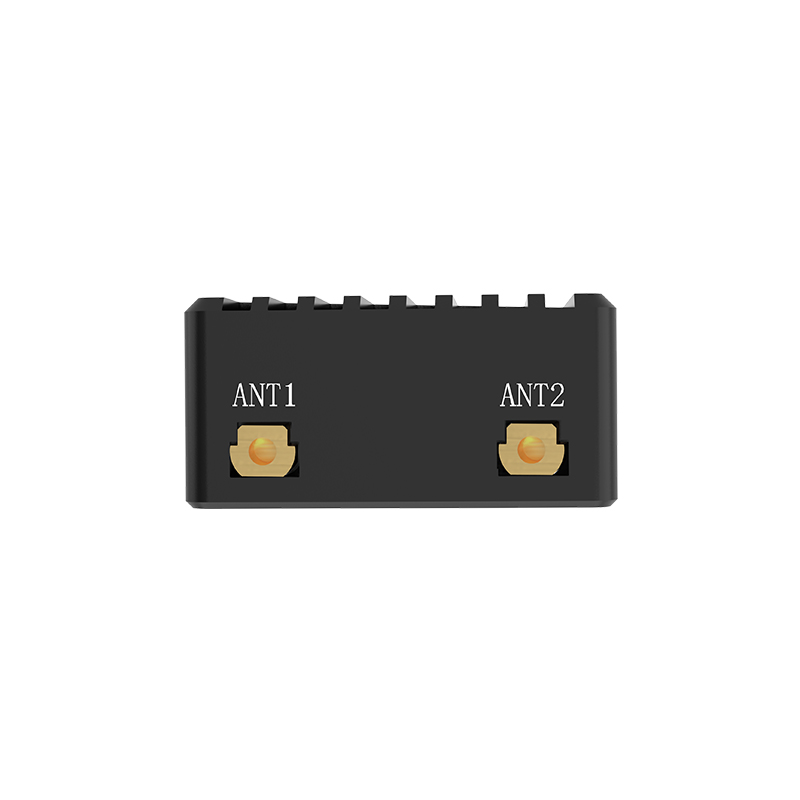

Antenna Connector Type	MMCX
Working Voltage	4.5 ~ 5.5 V
Power Consumption	1 W
Working Temperature	–30 ~ 75 °C
Product Dimension	40 x 30.5 x 15 mm
Product Weight	22.8 g
