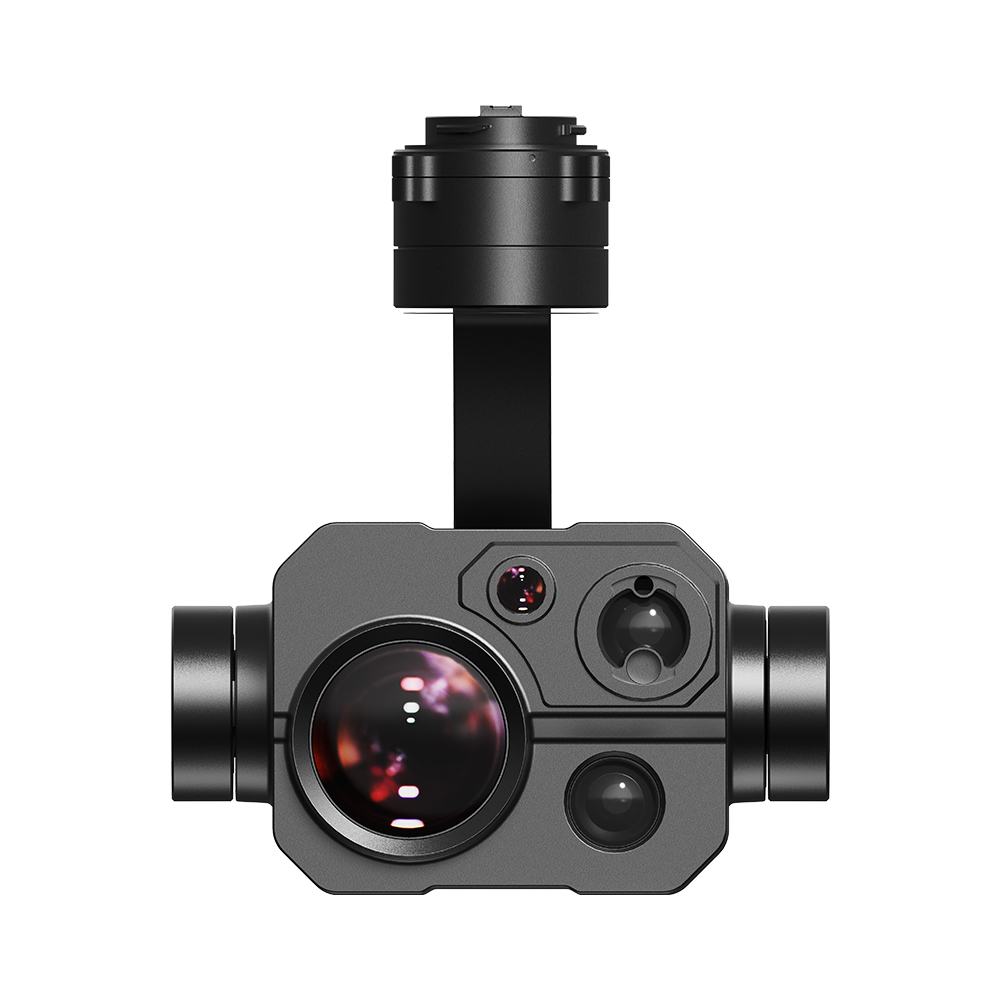

Specs
Overview
| Video Output Port | Ethernet |
| Control Signal Input Port | S.Bus |
| UART | |
| Ethernet UDP / TCP | |
| Control Signal Output Port | S.Bus |
| High-Accuracy 3-Axis Stabilization | Yaw, Pitch, Roll |
| Working Voltage | 11 ~ 25.2 V |
| Power Consumption | Average 9 W |
| Summit 20 W | |
| Waterproof Level | IP4X |
| Working Temperature | -10 ~ 50 ℃ |
| Dimension | 134.5 x 140 x 201 mm (including the quick release anti-vibration claw) |
| Weight | 854 g (including the quick release anti-vibration claw) |
ZT30 Quick Release Anti-Vibration Claw
| Dimension | 140*140*63 mm |
| Weight | 104g |
Gimbal
| Angular Vibration Range | ±0.01° |
| Controllable Pitch Angle | -90°~+25° |
| Controllable Yaw Angle | Limitless |
| Roll Angle | -45°~+45° |
Zoom Camera
| Lens | 30X Optical Zoom (180X Hybrid Zoom) |
| Focal Length | 4.8 ~ 149mm（±5%） |
| Image Sensor | 1/2.7 Inch, 8 MP effective resoultion |
| Aperture | F1.3 ~ 4.8（±5%） |
| FOV | Without Zoom: Diagonal 65.4°, Horizontal 58.1° |
| 30X Optical Zoom: Diagonal 2.48°, Horizontal 2.14° | |
| Video Recording Resolution | 4K (4096×2160) @ 30 fps |
| 2K (2560×1440) @ 30 fps | |
| 1080p (1920×1080) @ 30 fps | |
| 720p (1280×720) @ 30 fps | |
| Still Photo Resolution | 4K (4096×2160) |
Thermal Imaging Camera
| Thermal Sensor | Uncooled VOx Microbolometer |
| Resolution | 640 × 512 |
| Digital Zoom | 2X Digital |
| Lens | Focal Length: 19 mm |
| Aperture: F1.1 | |
| Fixed Focus | |
| Athermalization | |
| Wavelength Range | 8 ～ 14um |
| Temperature Measuring Range | High Gain: -20 ~ +150℃ |
| Low Gain: 0 ~ +550℃ | |
| Temperature Measuring Accuracy | ±2℃ (-20 ~ +150℃) |
| ±3℃ (0 ~ +550℃) | |
| Temperature Measuring Mode | Full-Image Thermometric |
| Point Thermometric | |
| Box Thermometric |
Wide Angle Camera
| Image Sensor | 1/2.8 Inch, 4 MP effective resoultion |
| Equivalent Focal Length | 20 mm |
| FOV | Diagonal 93° |
| Horizontal 84.5° | |
| Video Recording Resolution | 2K (2560×1440) @ 30 fps |
| Still Photo Resolution | 2K (2560 × 1440) |
Laser Rangefinder
| Range | 5 ～ 1200m |
| Wavelength Range | 900 ～ 908 nm |
| Resolution | 0.1 m |
| Ranging Accuracy | ±1 m (3 ~ 100 m) |
| ±1 + L*0.25% m, L=Length (100 ~ 600 m) | |
| Laser Pulse Frequency | 3 Hz |
| Max Laser Power | 5 mW |
General Camera Specs
| Video Storage Bitrate | 15 Mbps (H.265 Codec) |
| File Storage Format | FAT32 |
| ExFAT | |
| Image Format | JPG |
| Video Format | MP4 |
| Supported MicroSD Cards | MicroSD Class10, Max 256GB |
| Still Photography Mode | Single |
| Metering Mode | Evaluative metering |
