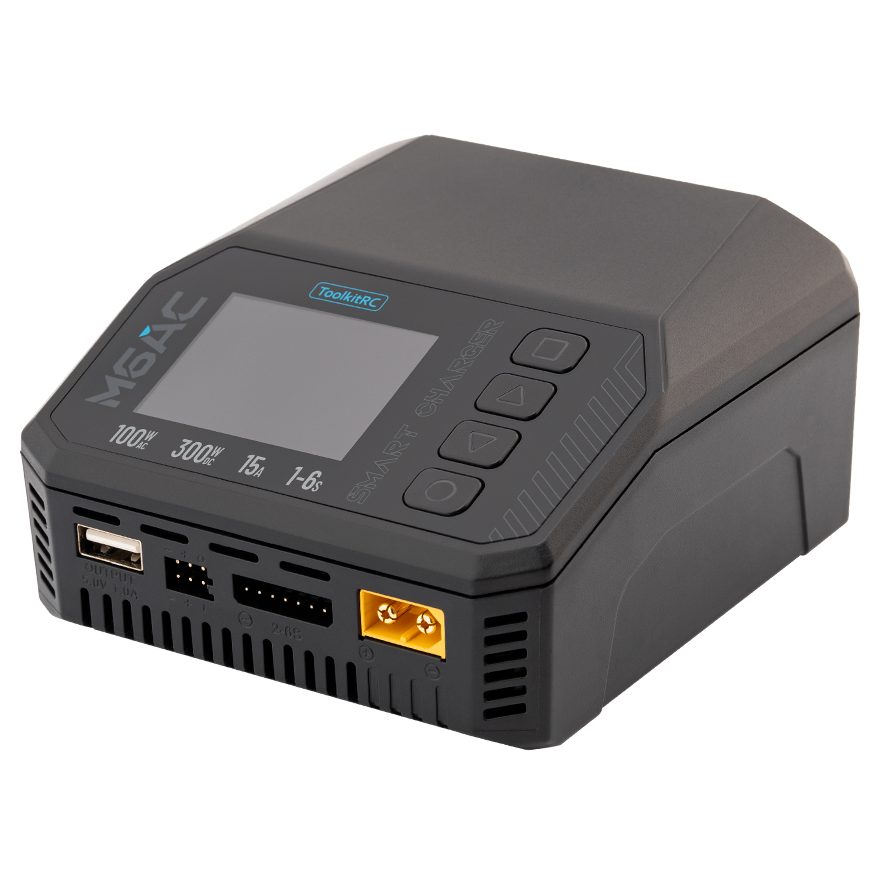

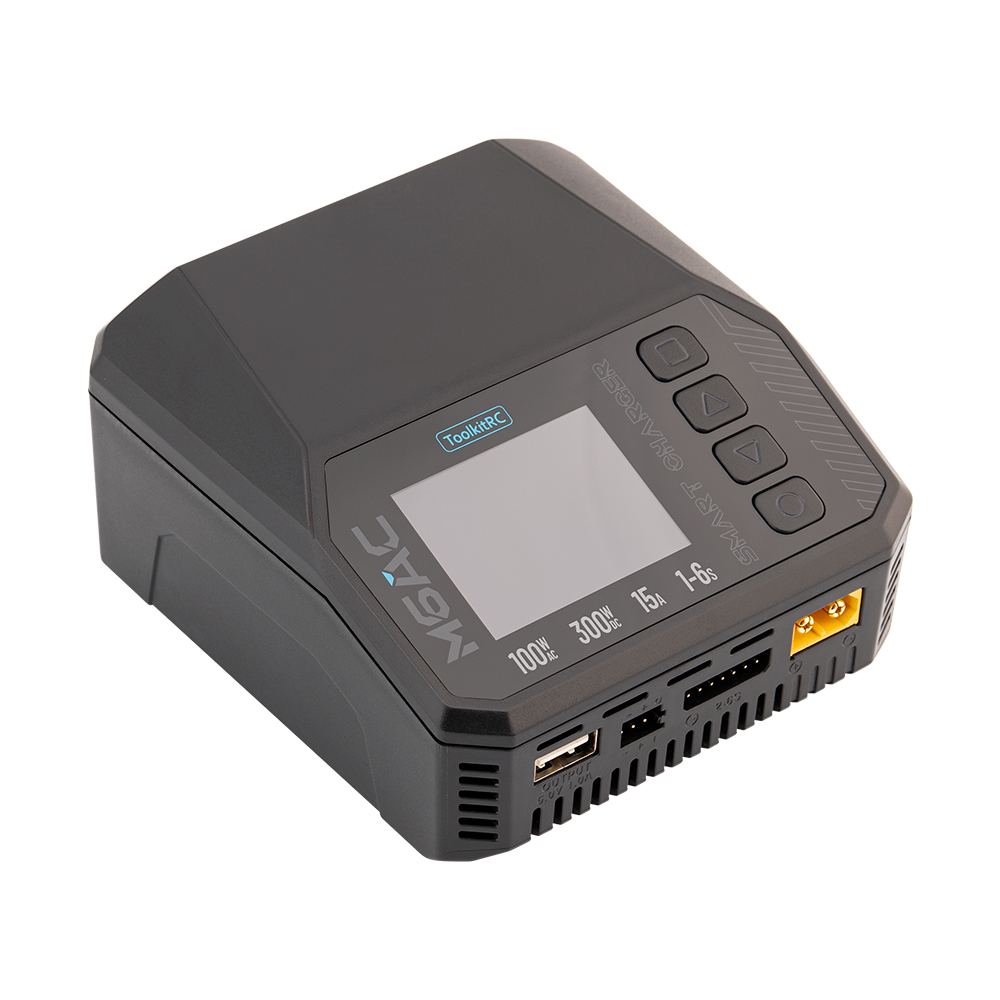

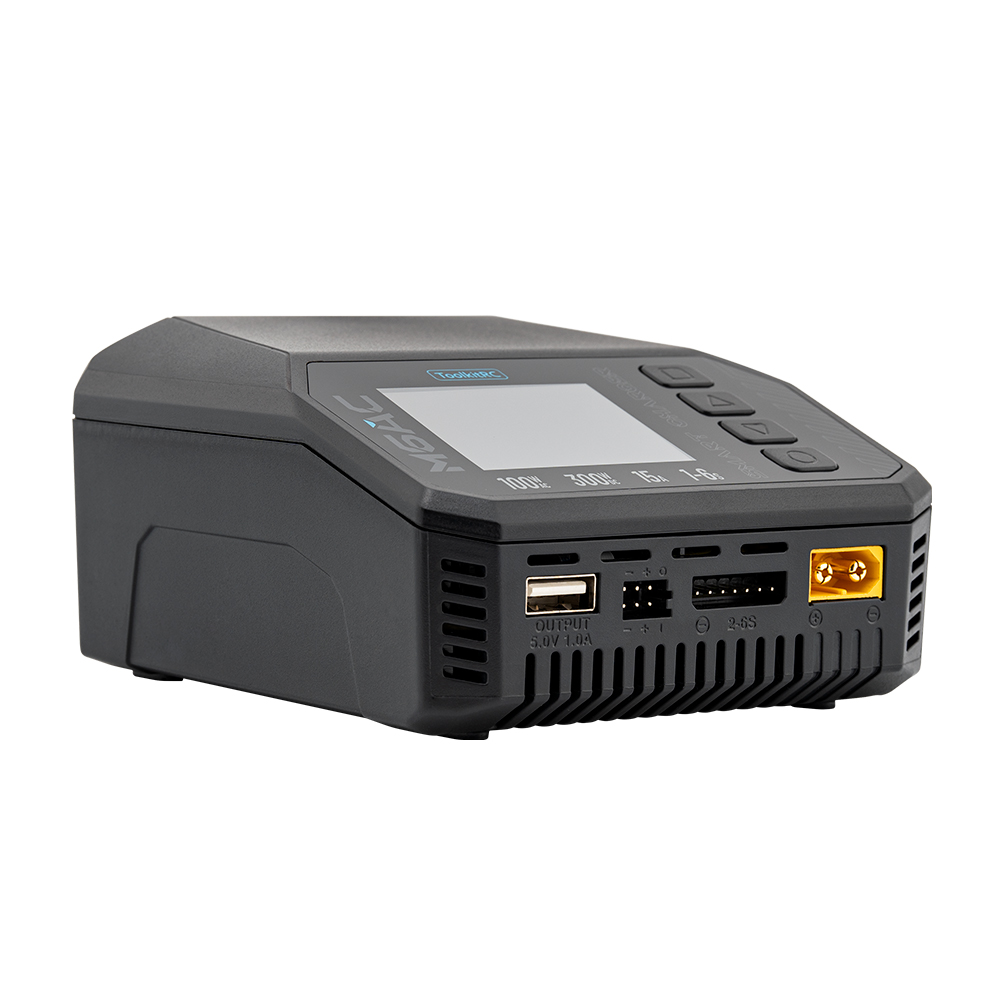

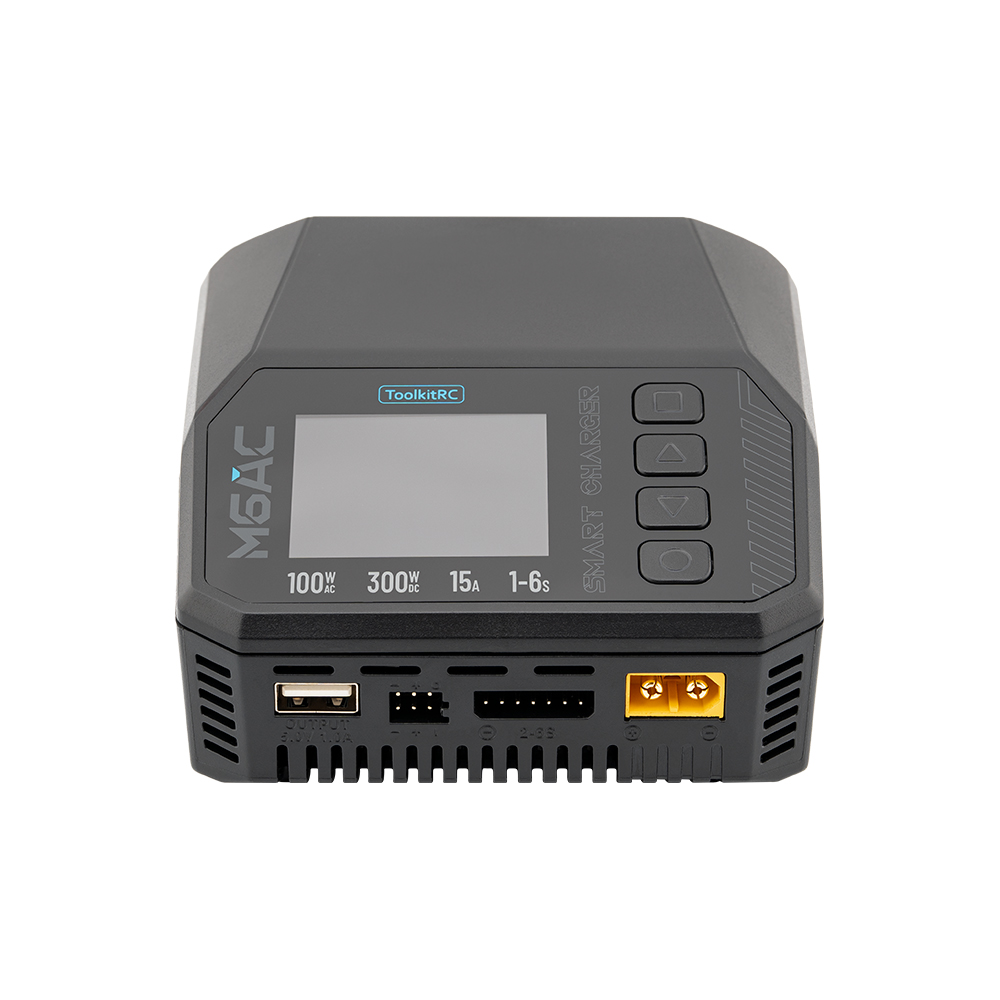

ToolkitRC M6AC Charger

● AC100W，DC300W MAX 15A ；

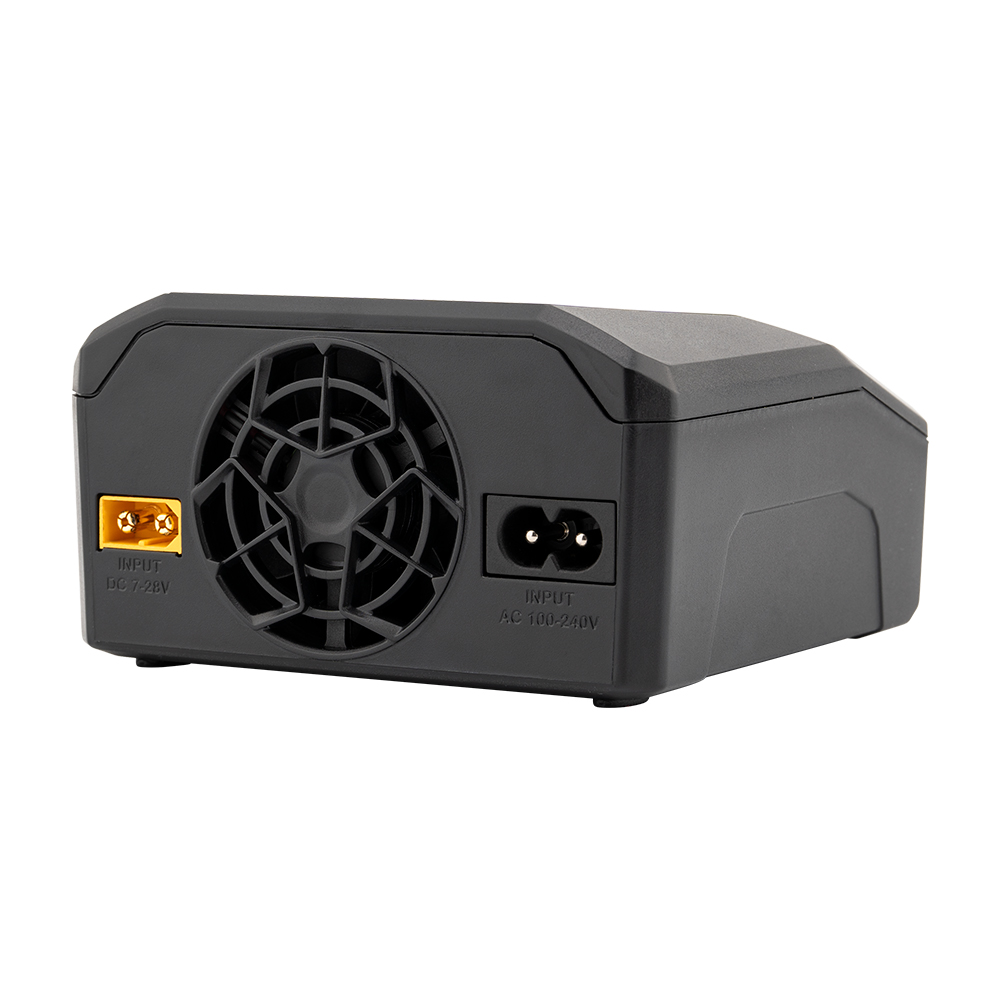

● DUAL INPUT, MAKE CLASSICS BETTER；

● 1000mA robust balance current&High balance accuracy <0.005V；

● Not only A charger, and many more auxiliary functions；

● Smart 2.0″ IPS LCD Display；

● Comprehensive security protection.

Dear customer:

Welcome to HobbyGet website. we sincerely invite you to join ourexclusive membership and become our member, You will be able to enjoyour membership price and more services!

SPEC

GENERAL

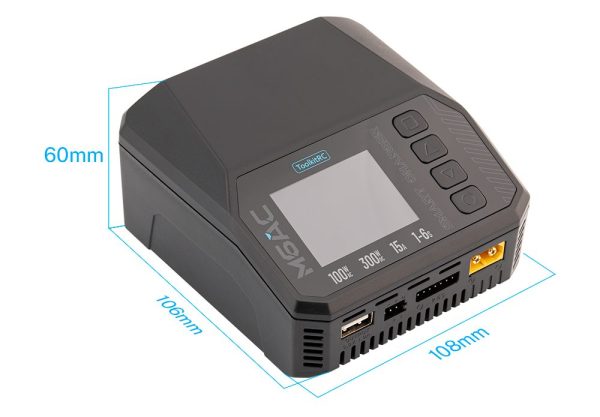

Product size	108×106×60mm
Product weight	350g
Packing size	144×158×63mm
Packaging weight	510g
LCD	IPS 2.0″ LCD 320×240 px

CHARGER

Input voltage	AC 100-240V@MAX 120W
Input voltage	DC 7-35V@MAX 30A
Battery type	LiPo LiHV LiFe Lilon LTO @1-6S
Battery type	NiMH @1-16S Pb@1-10S
Balance current	1000mA@4.2V
Balance accuracy	<0.005V
Charging power	0.1-15A@300W
Discharging power	0.1-15A@300W Recycle Mode
Discharging power	0.1-3A@15W Internal Mode
USBA	5.0V/1.0A @10W or upgrade
Voltage	1.0V-5.0V @1-6S
Internal resistance	0.1mΩ-99mΩ @1-6S

MEASURER

PWM	880us-2200us@20-400Hz
PPM	880us-2200us×8 CH@20-50Hz
SBUS	880us-2200us×16 CH@20-100Hz

OUTPUT

PWM	500us-2500us@20-1000Hz
PPM	880us-2200us×8 CH@50Hz
SBUS	880us-2200us×16 CH@74Hz
Power	0.5-15A@1-28V Mode: CC+CV

IN THE BOX

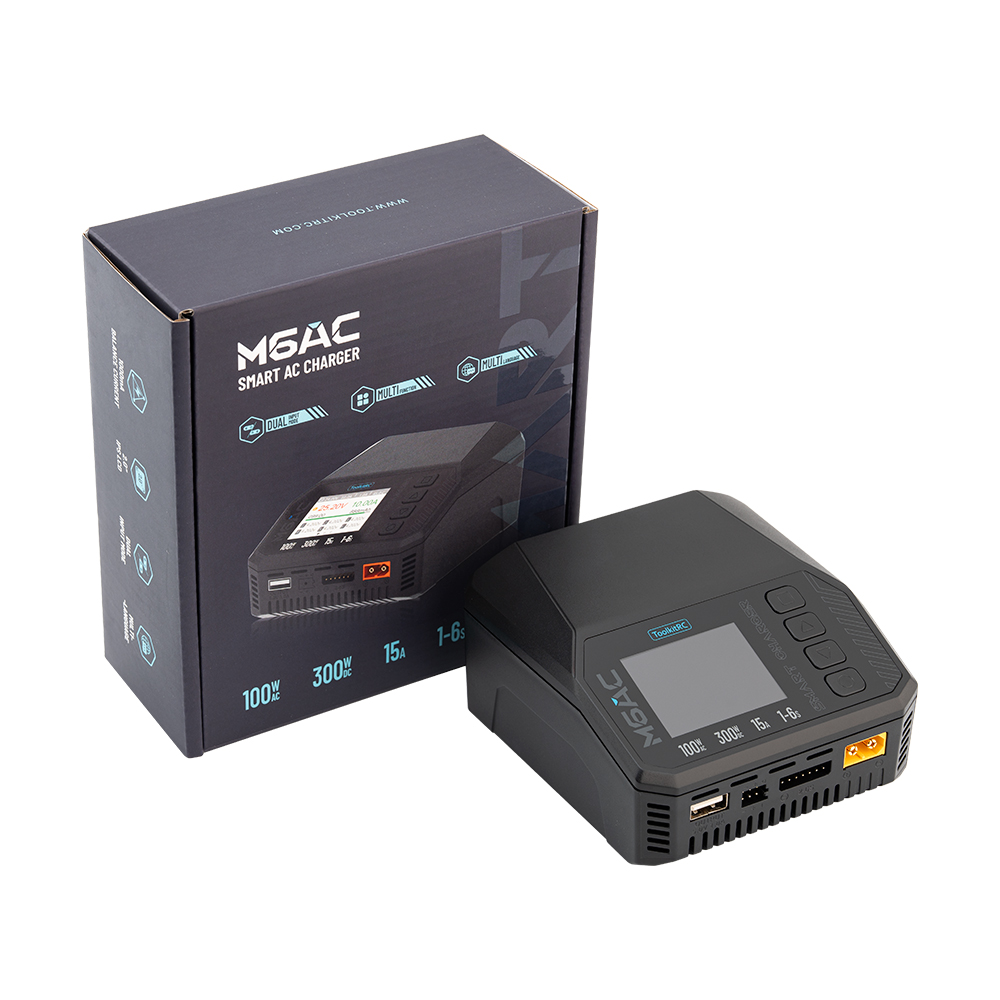

M6AC Charger × 1, AC Input Cable × 1, USB Cable × 1, Quick Manual × 1, Screen Protector × 1

OPTIONS	EU, US, AU, UK
