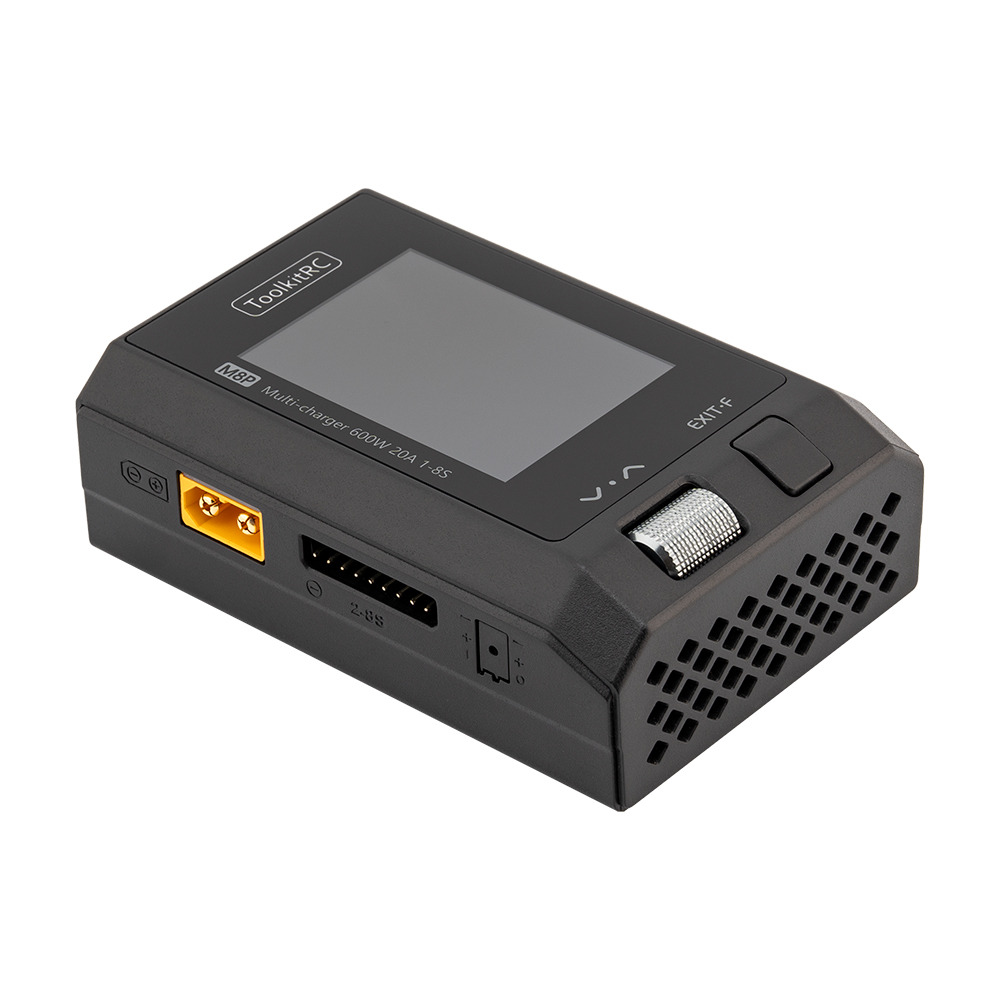

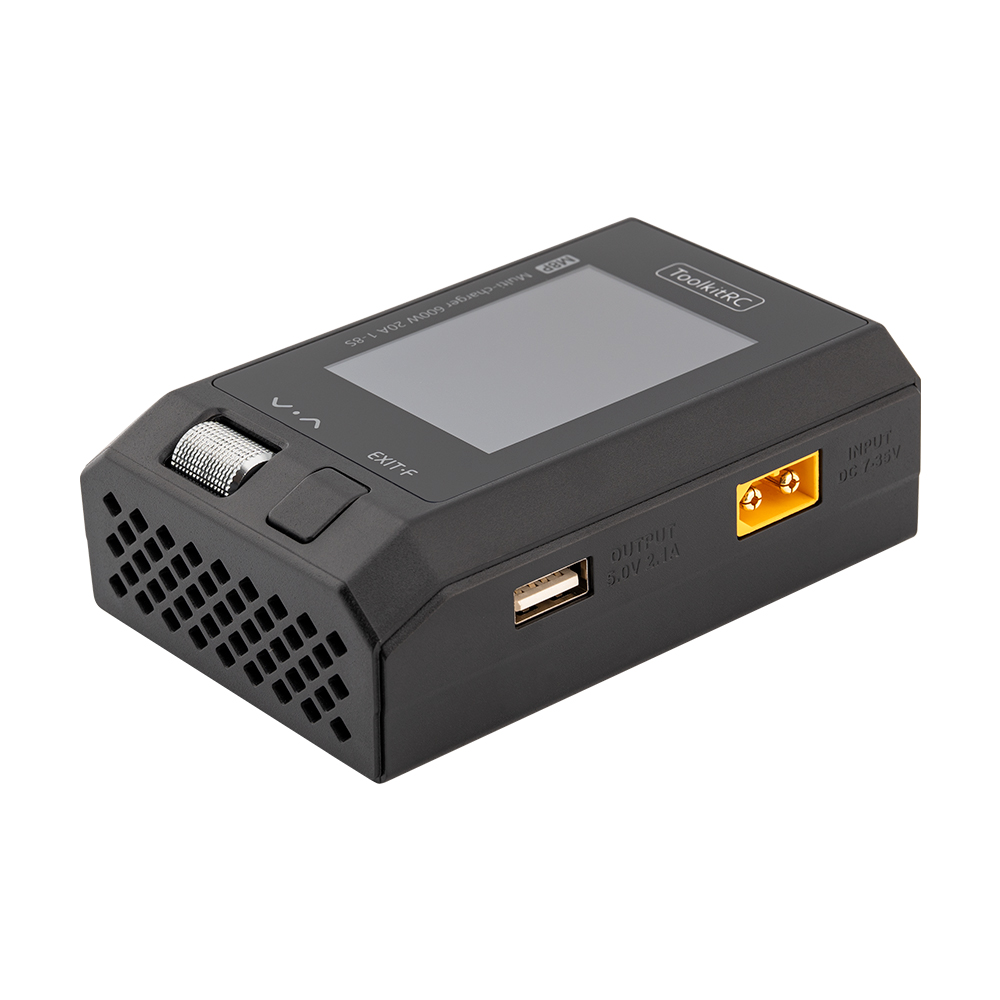

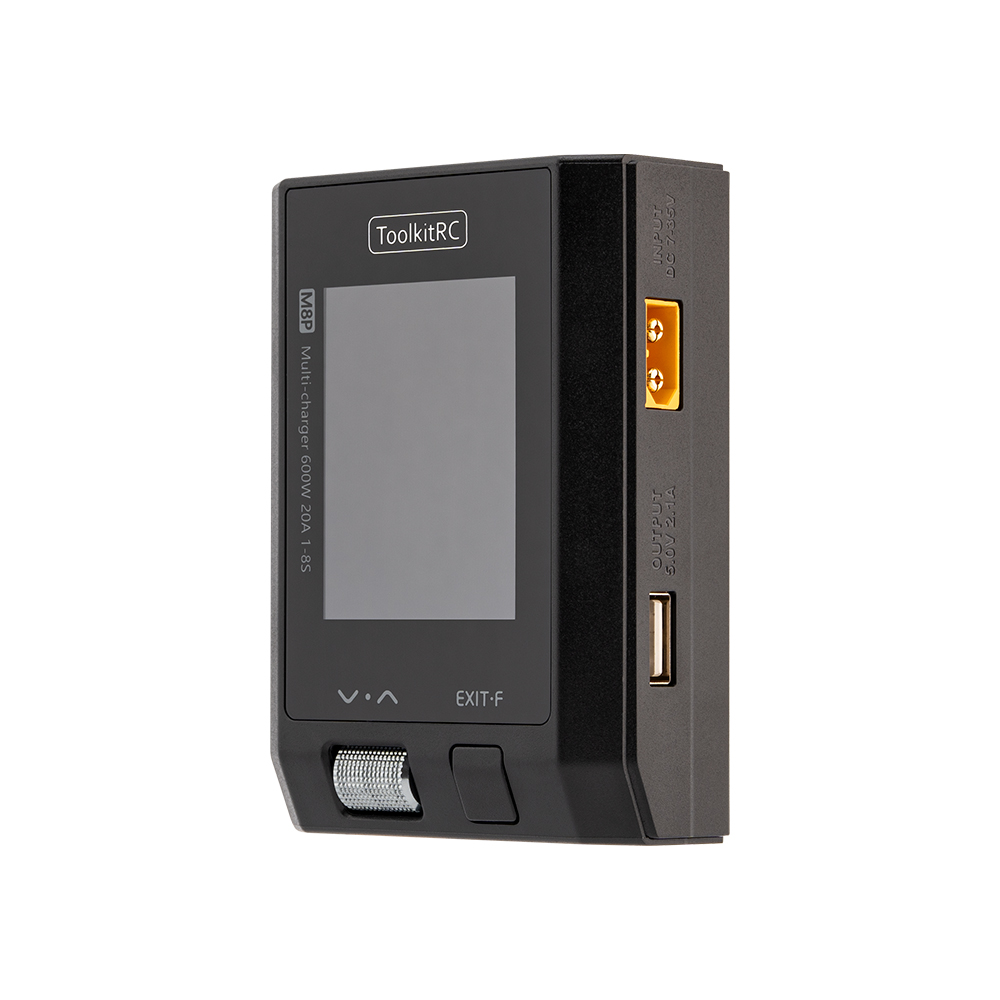

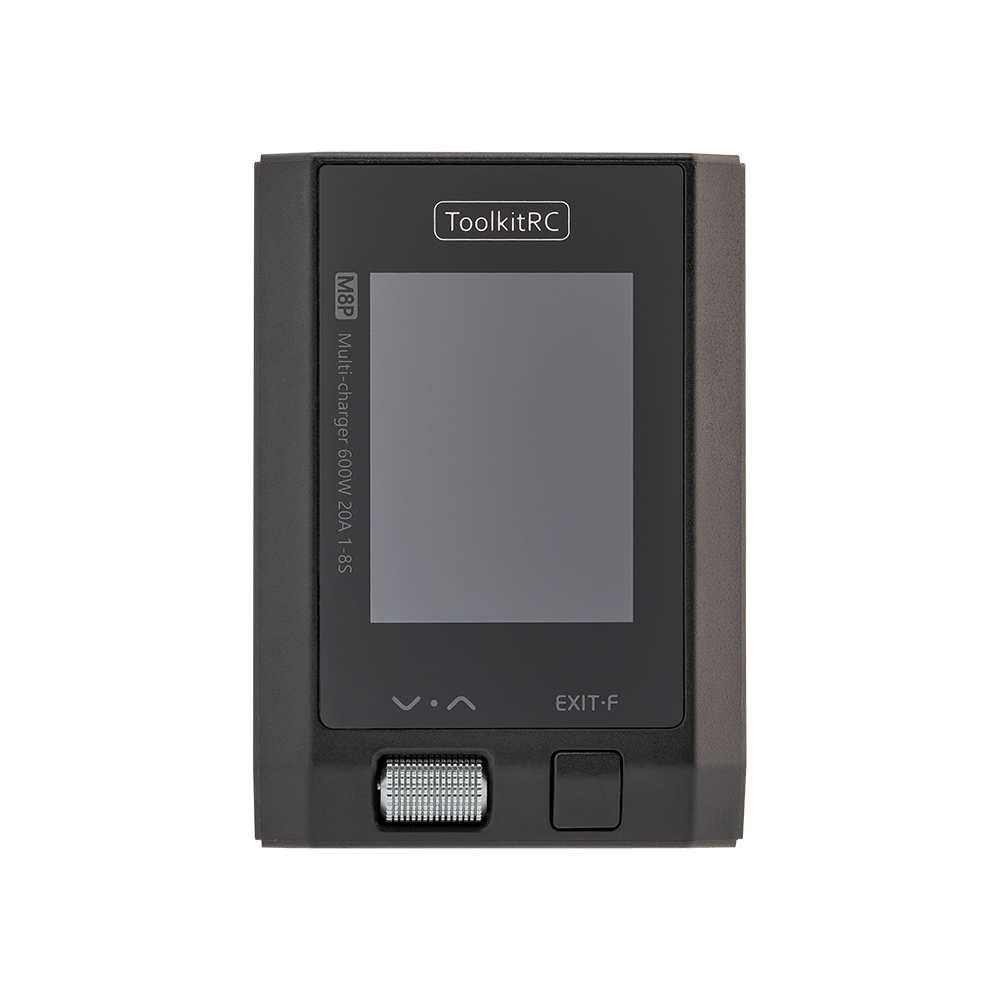

ToolkitRC M8P

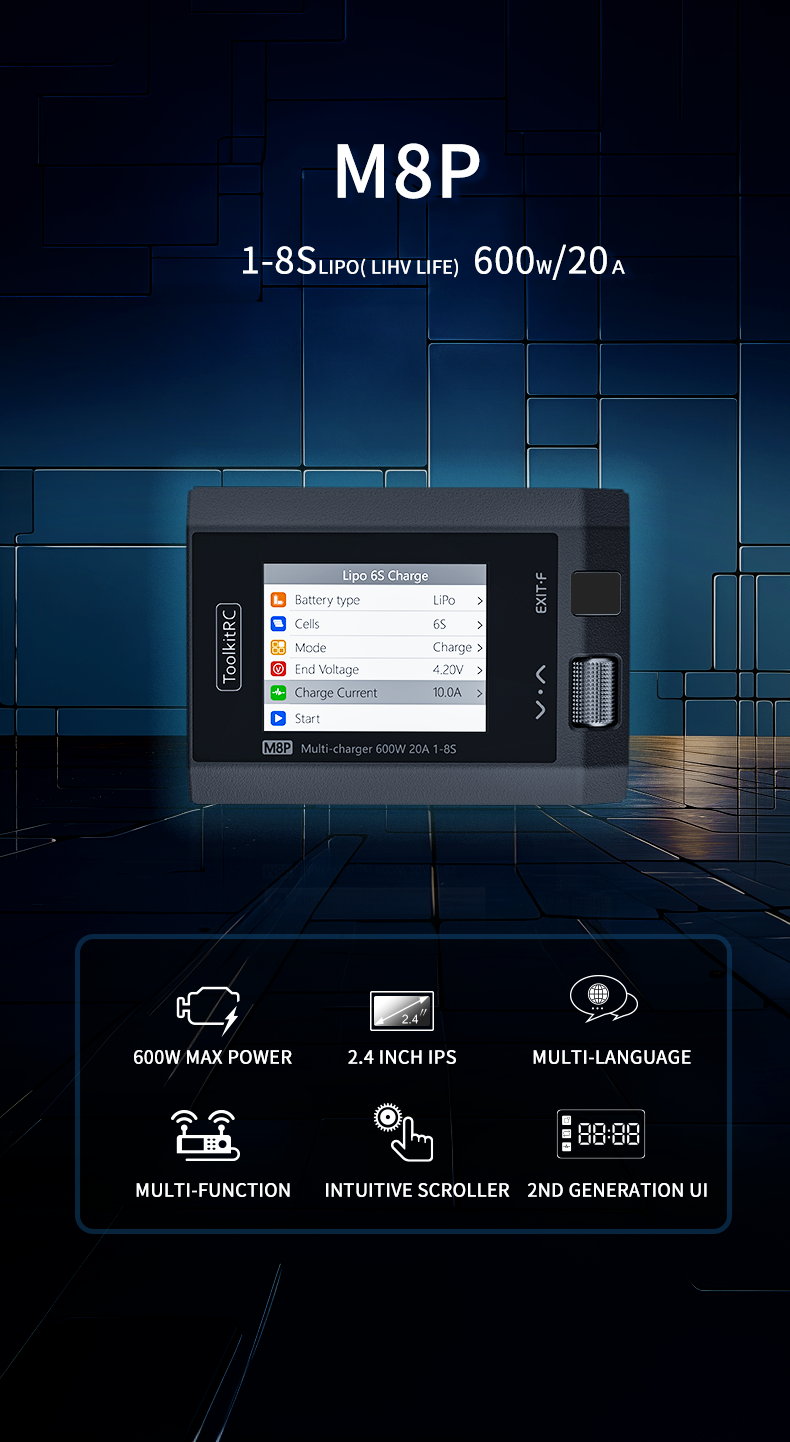

ToolkitRC M8P 500W | 20A | 8S

Input Voltage: DC 7-35V@MAX25A
Battery Type: LiPo LiHV LiFe Lilon LTO@1-8S, NiMH@1-20SPb@1-10S
Charge Power: 0.1-20A@600W
Discharge Power: 0.1-20A@600W / Recycle external 0.1-
3A@20W
Measure:PWM/PPM /SBUS /Voltage /Internal resistance /ESC
Output:PWM /PPM /SBUS /Power supply
Product size: 99*72*35mm
Product wight: 180g

Dear customer:

Welcome to HobbyGet website. we sincerely invite you to join ourexclusive membership and become our member, You will be able to enjoyour membership price and more services!

SPEC

GENERAL

Product size	99×72×35mm
Product weight	180g
Packing size	125×81×41mm
Packaging weight	250g

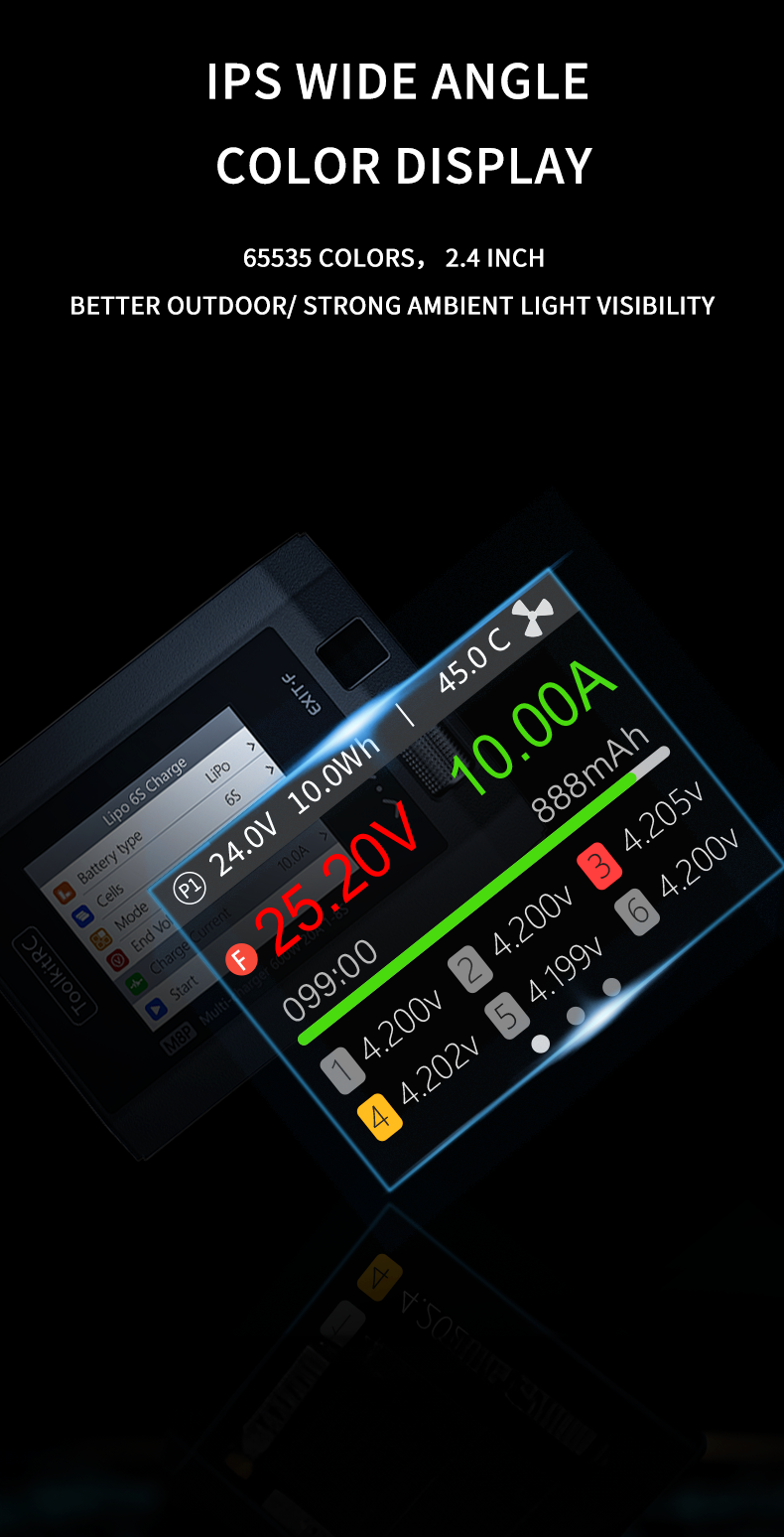

LCD	IPS 2.4″ LCD 320×240px

CHARGER

Input voltage	7.0-35.0V @MAX 25A
Battery type	LiPo LiHV LiFe Lilon LTO@1-8S NiMH @1-20S Pb @1-12S
Balance current	1000mA @ 4.2V

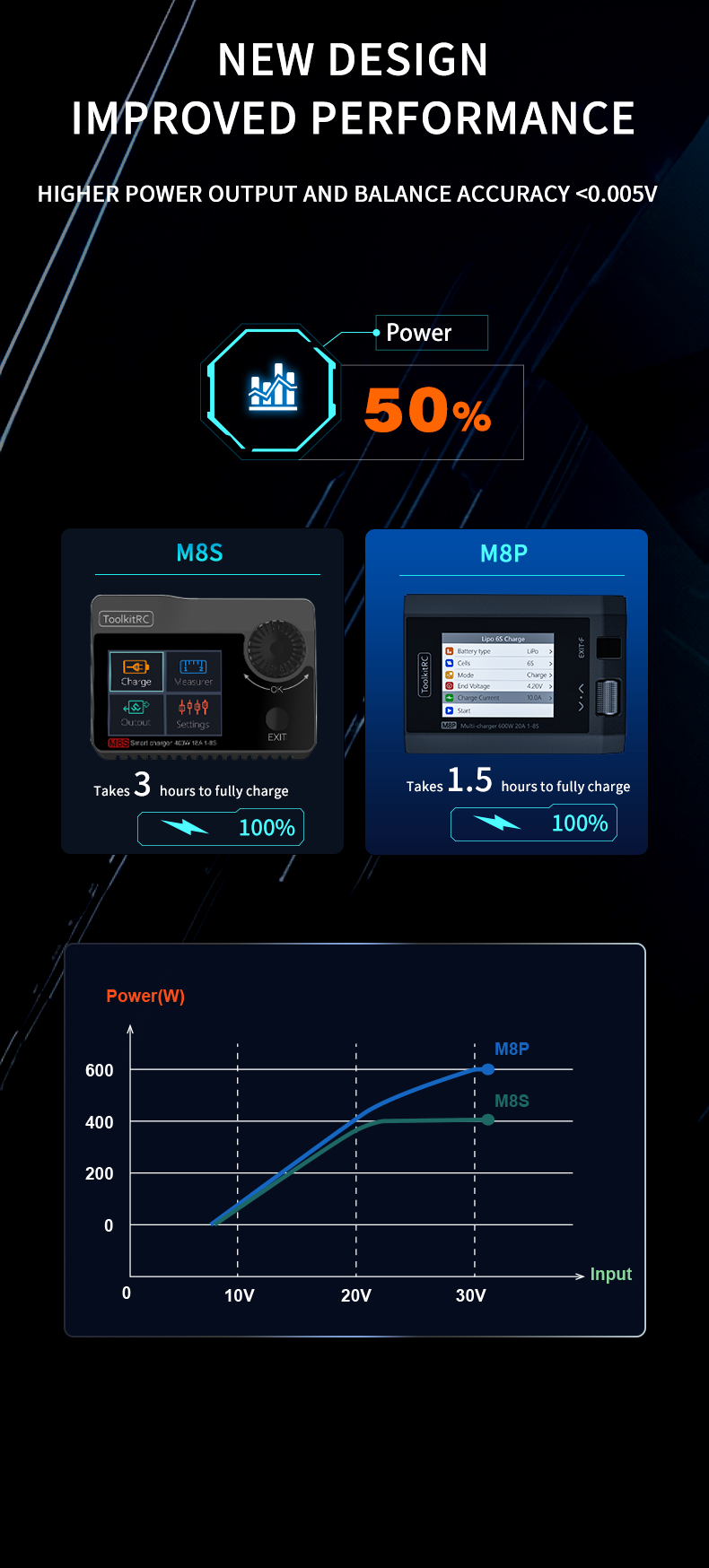

Charging power	600W @MAX 20A
Discharging power	600W @MAX 20A Recycle mode 20W@3A Normal mode
USB	2.1A@5.0V or Upgrade

MEASURER

PWM	880-2200us @ 20-400Hz
PPM	880-2200us×8CH @ 20-50Hz
SBUS	880-2200us×16CH @ 20-100Hz
Voltage	1.0-5.0V @ 1-8S
Internal resistance	0.1 mR-99R @ 1-8S
ESC	600W @ 20A

OUTPUT

PWM	500-2500us @ 20-1000Hz
PPM	880-2200us×8CH @ 20-50Hz
SBUS	880-2200us×16CH @ 20-100Hz
Power supply	1.0-35.0V @1.0-20A mode:CC CV
Overcurrent response	<5ms

IN THE BOX

M8AC Charger × 1, AC Input Cable × 1, USB Cable × 1, Quick Manual × 1, Screen Protector × 1

Weight	180 g
Dimensions	99 × 72 × 35 mm
