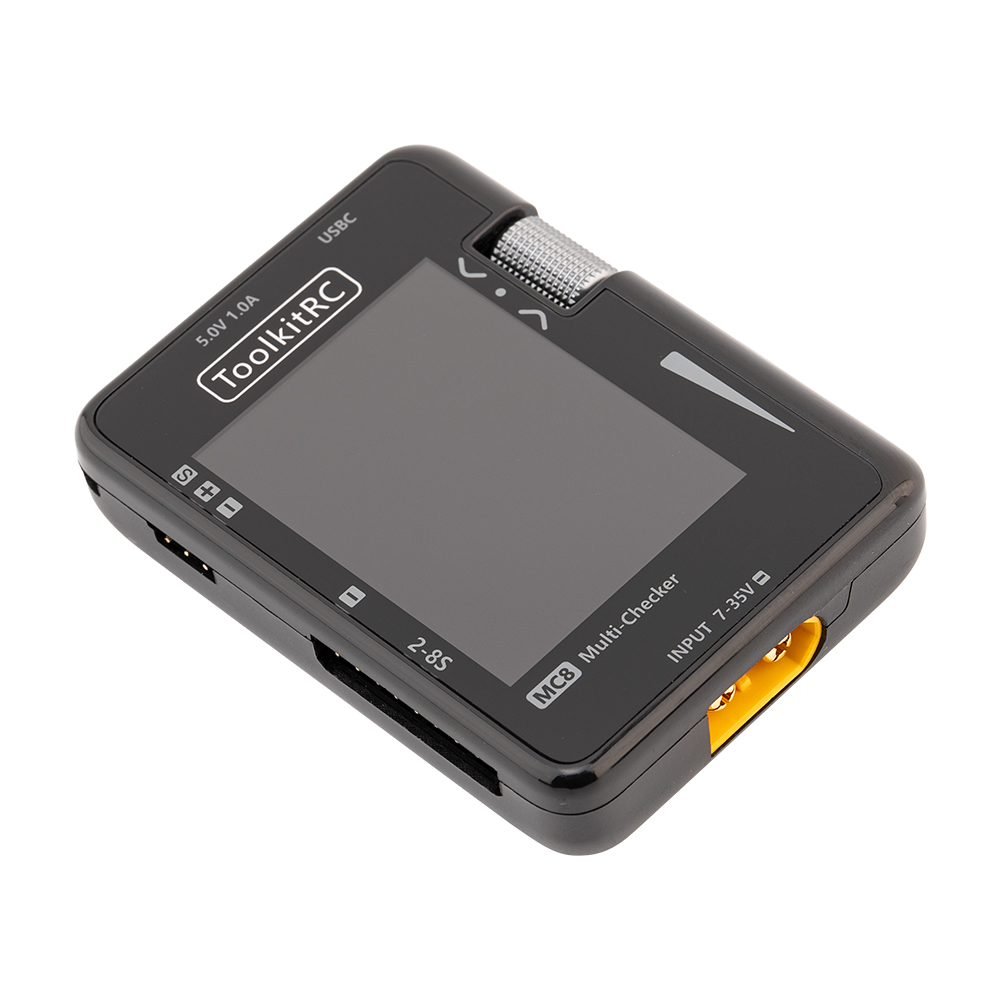

ToolkitRC MC8 Battery Multi-Checker

Specifications
Main input port XT60: 7.0V-35.0V
Balance input: 0.5V-5.0V Lixx 2-8S
Signal port input: <6.0V
Balance current: MAX 60mA @2-8S
Balance accuracy: <0.005V @ 4.2V

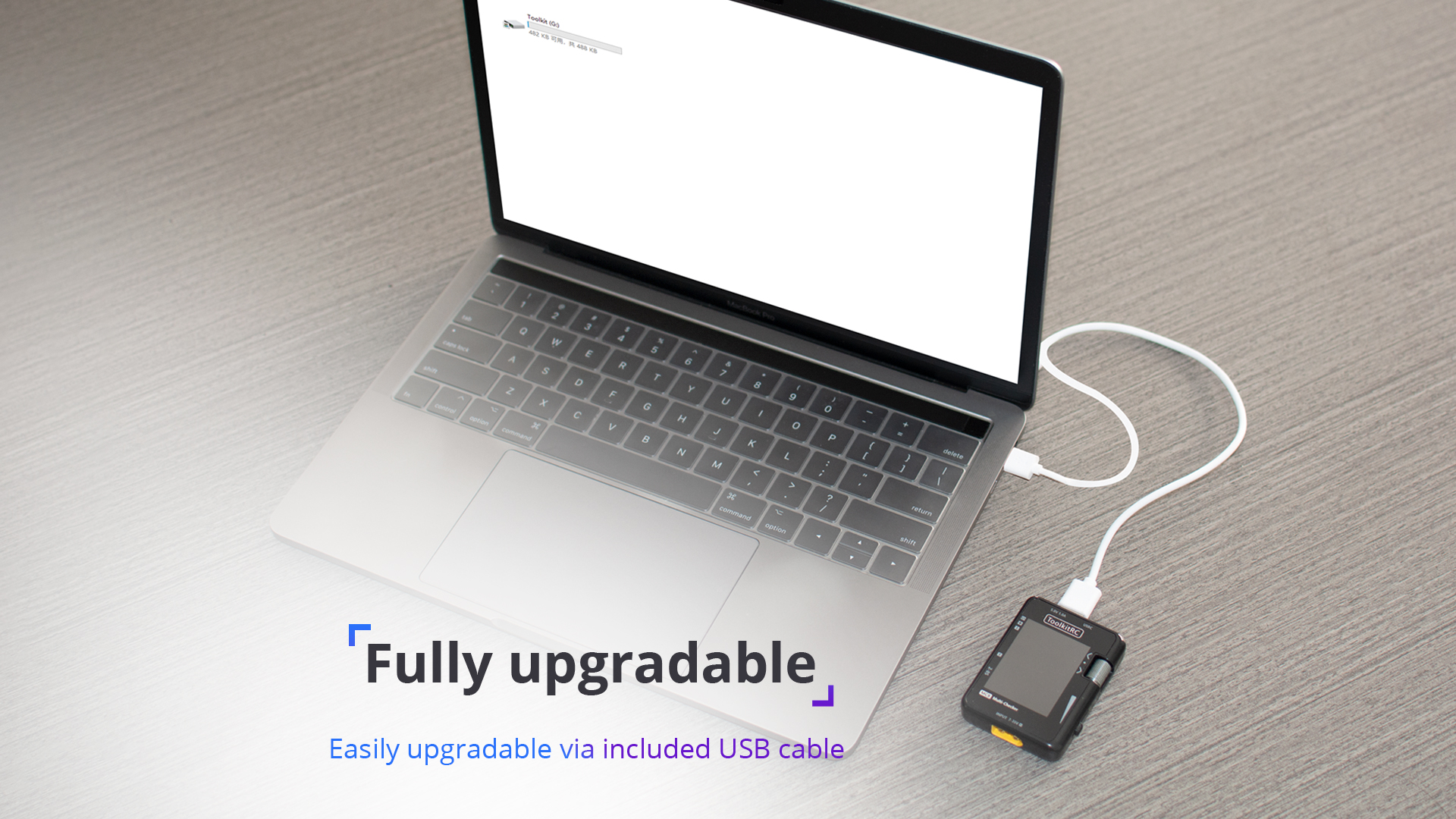

USB-A output: 5.0V@1.0A firmware upgrade

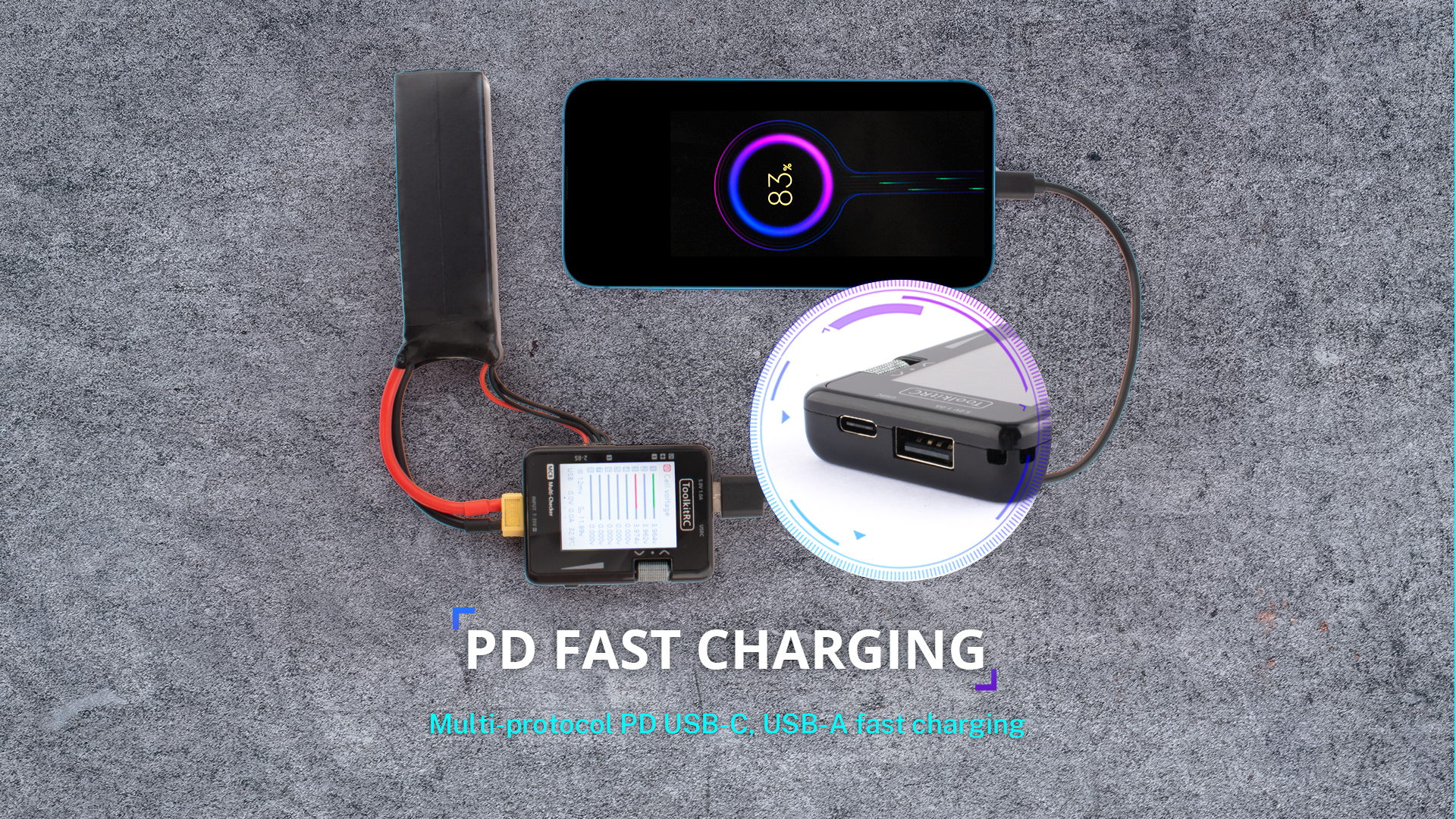

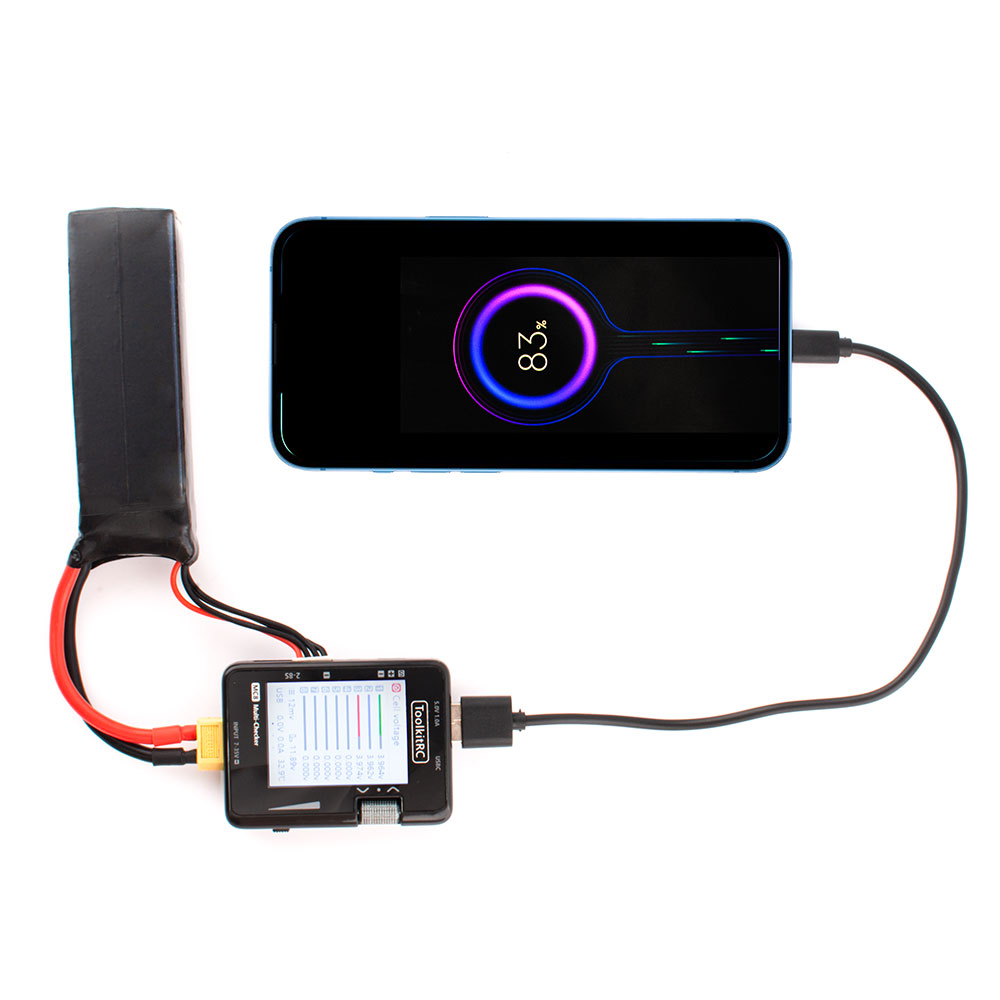

USB-C output: 5.0V-12.0V @MAX 20W
USB-C protocol: PD3.0 QC3.0 AFC SCP FCP

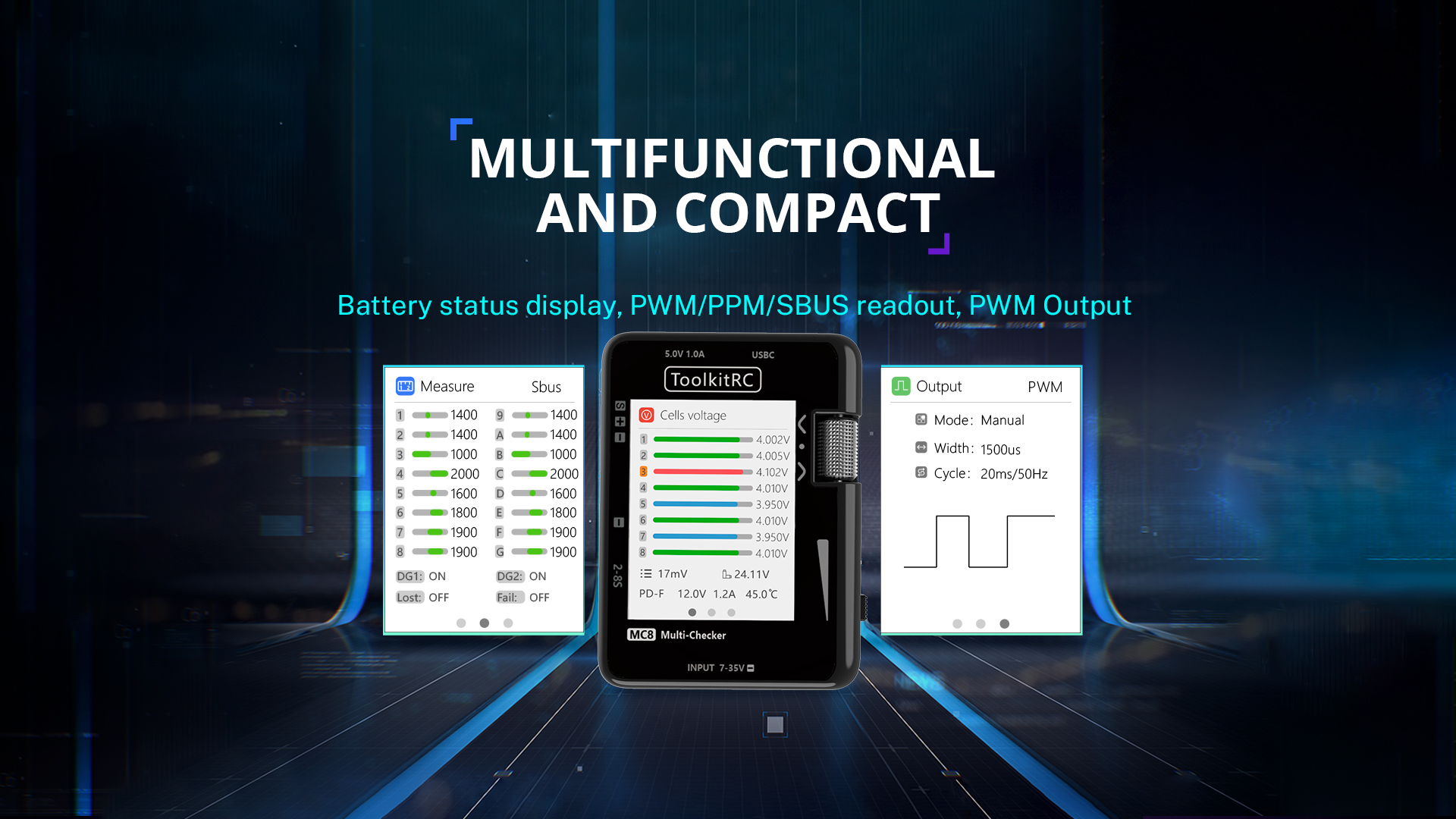

Measurement
PWM: 500-2500us @20-400Hz
PPM: 880-2200us*8CH @20-50Hz
SBUS: 880-2200us *16CH @20-100Hz
Output
PWM: 1000-2000us @20-1000Hz
PPM: 880-2200us*8CH @50Hz
SBUS: 880-2200us *16CH @74Hz
Size: 68*50*15mm
Weight: 50g
Package Size: 76*60*30mm
Package Weight: 100g
LCD: IPS 2.0″ 240*240px

SKU: HG006TK31600 Category: Toolkits Brand: TOOLKITRC

Dear customer:

Welcome to HobbyGet website. we sincerely invite you to join ourexclusive membership and become our member, You will be able to enjoyour membership price and more services!

SPEC

CHECKER

Main input port XT60	7.0V-35.0V @MAX 25A
Balance input	0.5V-5.0V Lixx 2-8S
Signal port input	<6.0V
Balance current	MAX 60mA @2-8S
Balance accuracy	<0.005V @ 4.2V
USB-A output	5.0V@1.0A firmware upgrade
USB-C output	5.0V-12.0V @MAX 20W
USB-C protocol	PD3.0 QC3.0 AFC SCP FCP

MEASURER

PWM	500-2500us @20-400Hz
PPM	880-2200us×8CH @20-50Hz
SBUS	880-2200us×16CH @20-100Hz

OUTPUT

PWM	1000-2000us @20-1000Hz
PPM	880-2200us×8CH @50Hz
SBUS	880-2200us×16CH @74Hz

GENERAL

Size	68×50×15mm
Weight	50g
Package Size	76×60×30mm
Package Weight	100g
LCD	IPS 2.0″ 240×240px

IN THE BOX

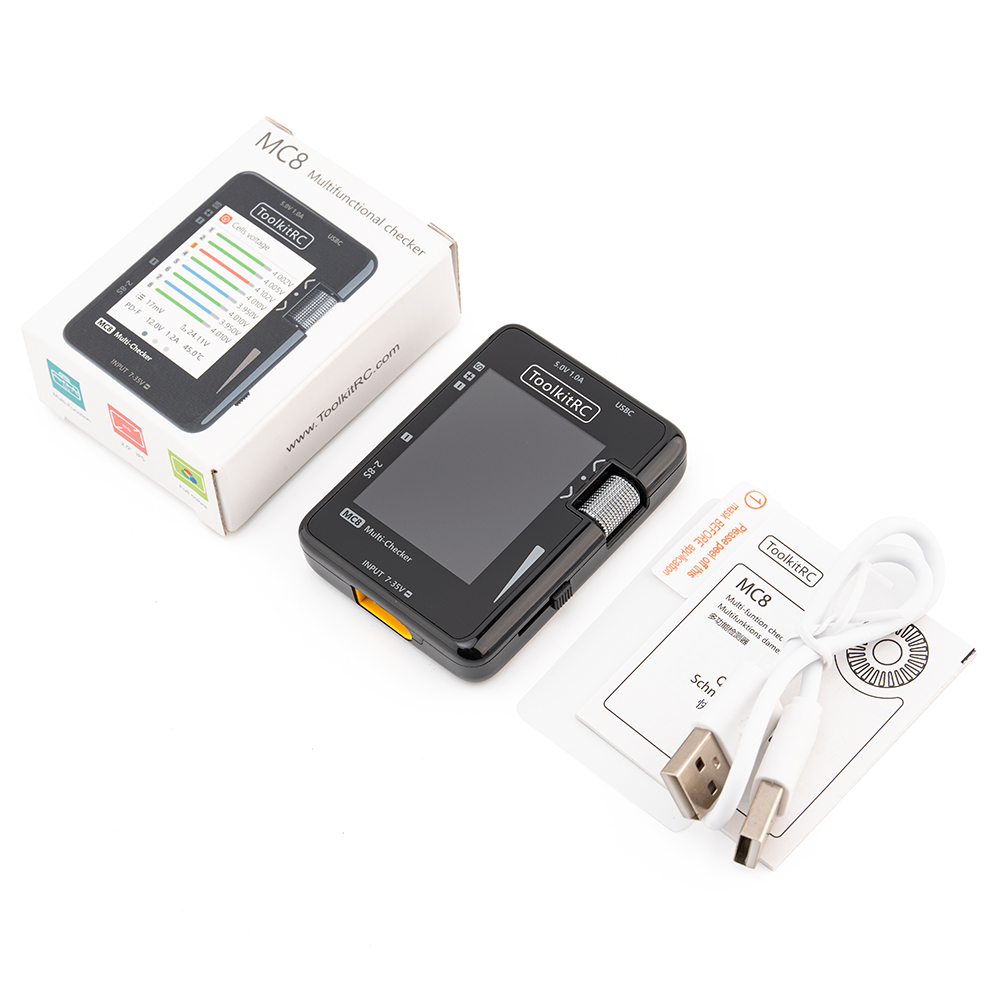

MC8 Battery Multi-Checker × 1, USB Cable × 1, Quick Manual × 1, Screen Protector × 1

Weight	50 g
Dimensions	68 × 50 × 15 mm
