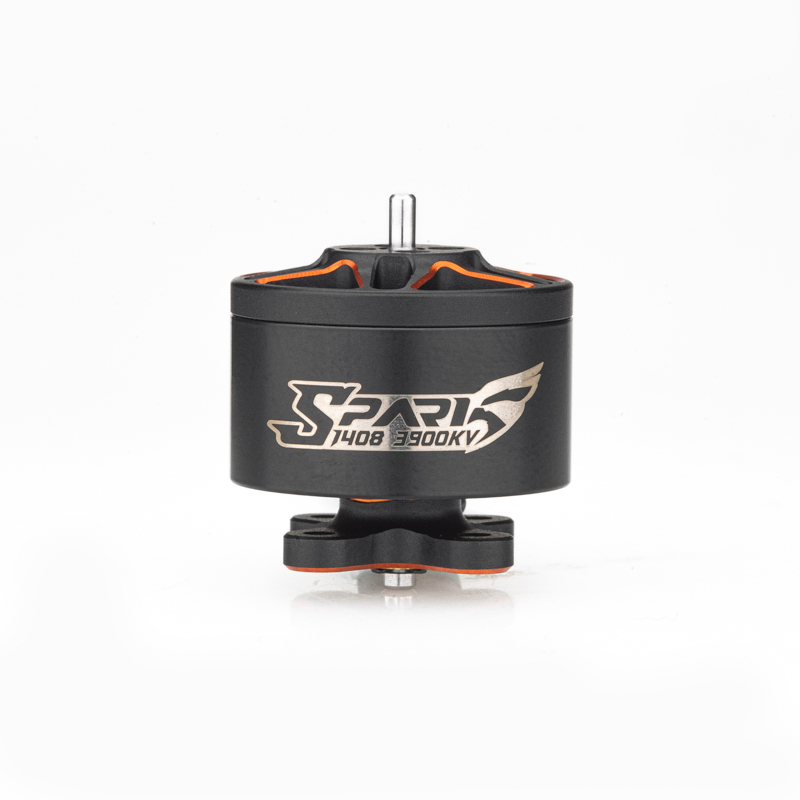

VCI SPARK 1408 MOTOR

Introduction

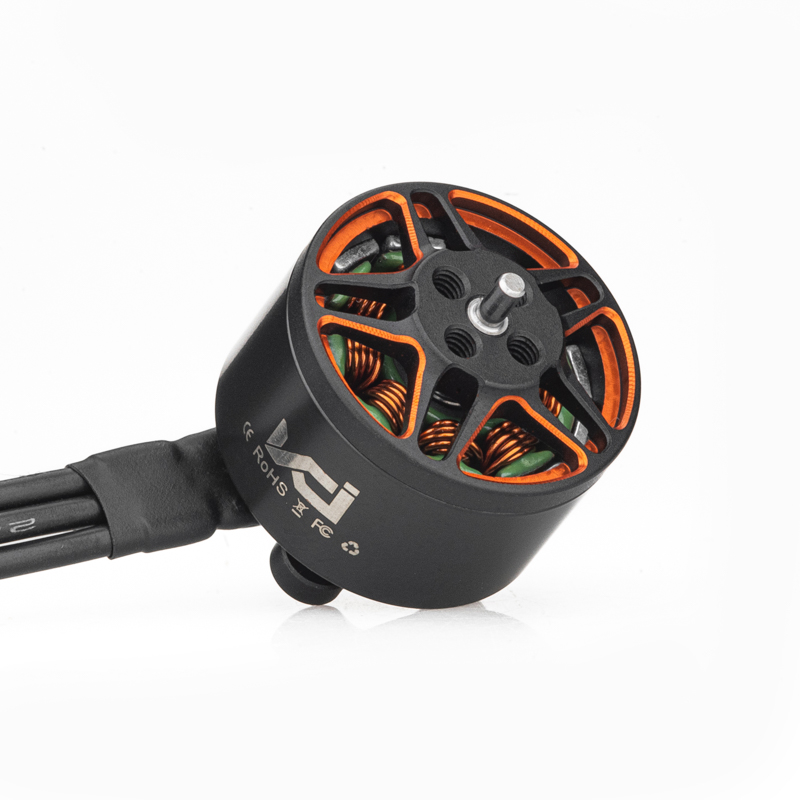

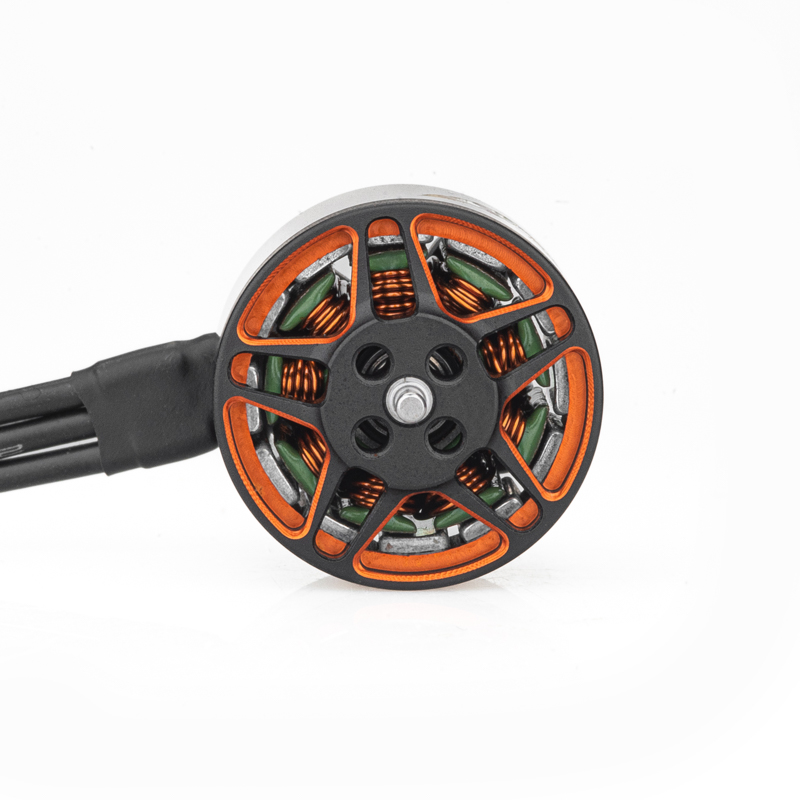

The VCI SPARK1408 motor uses AL7075 high-strength aviation aluminum alloy material. While ensuring the structural strength, it adopts a family-style five-frame lightweight design. The large hollow head cover reduces the mass while enhancing the heat dissipation capacity. Combined with the motor’s own air suction design, the motor temperature is further reduced and the operation is more stable;
It is suitable for 4S-6S with circle machine and duct machine flight. It is light in weight (including line 16.2g) and has sufficient thrust; it can be used for indoor and outdoor flight shooting;
It can be used with DJI O3 Unit on the aircraft for high-definition 4K shooting, and can perform high-speed maneuvers and chase faster targets;
Or it can be used with Naked Camera to shoot more beautiful pictures;

Features
The VCI SPARK1408 motor uses Japanese original double ball bearings, which makes the motor run with less resistance, higher efficiency, faster response, and enhances the fun of flying;
It uses imported 0.2mm silicon steel sheets, which can effectively reduce eddy current losses and reduce motor heating;
The magnet is imported N52SH, and has a special magnetic circuit design to reduce its own resistance and improve motor efficiency;
The unique anti-stripping design ensures that no matter how much pressure is applied when installing the propeller, the shaft will not fall out of the head cover, and can provide excellent dynamic balancing effect;
The head cover is a standard T-Mount mounting hole, and screws are used to fix the propeller to prevent the propeller and the motor from slipping;
The outlet is a silicone wire straight out, which is convenient for welding to various electric speed controllers to ensure the overcurrent capacity;

Adaptation

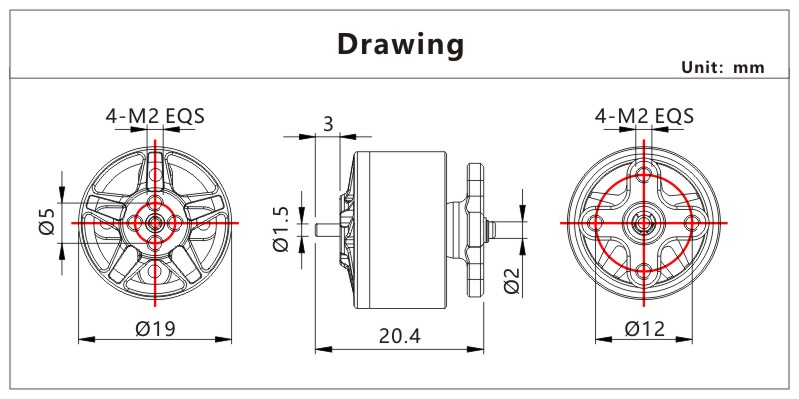

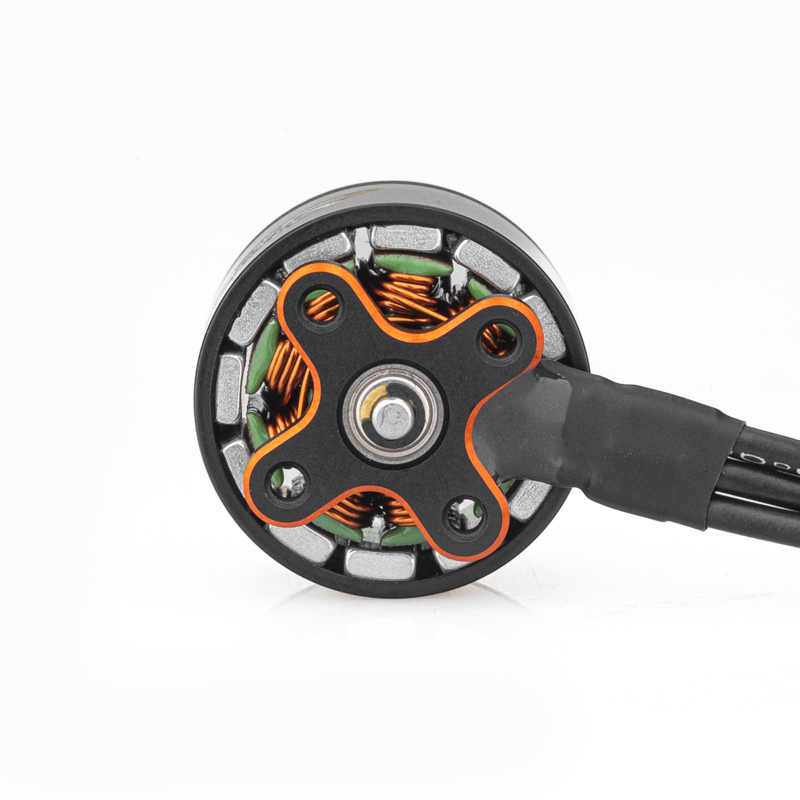

The motor is fixed with 4 holes (refer to the appearance diagram for specific dimensions)
Ø1.5mm outlet shaft, all conventional propellers on the market can be adapted;

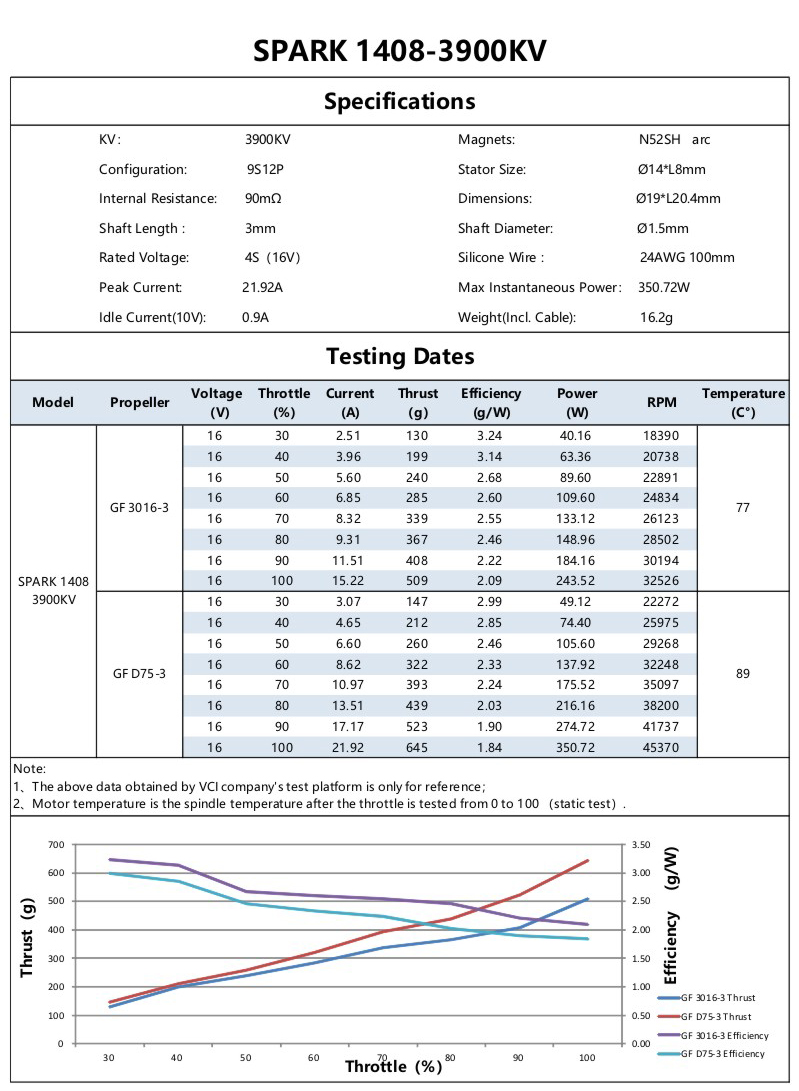

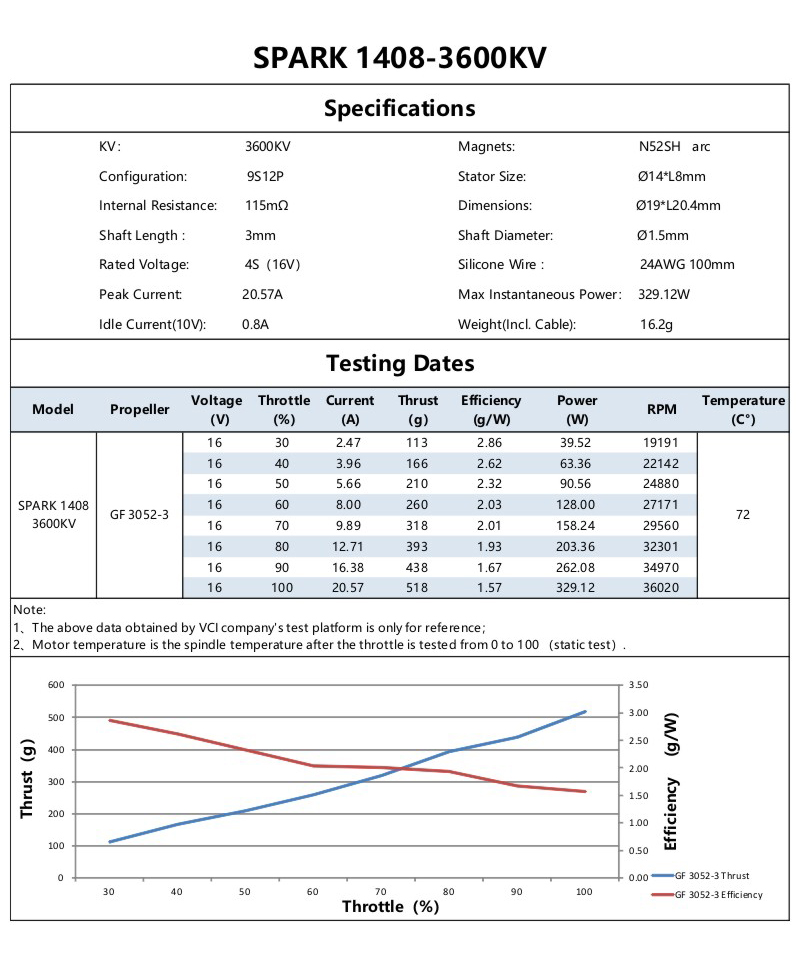

Under 4s voltage, with 3in propellers, the maximum thrust can be output 650g;

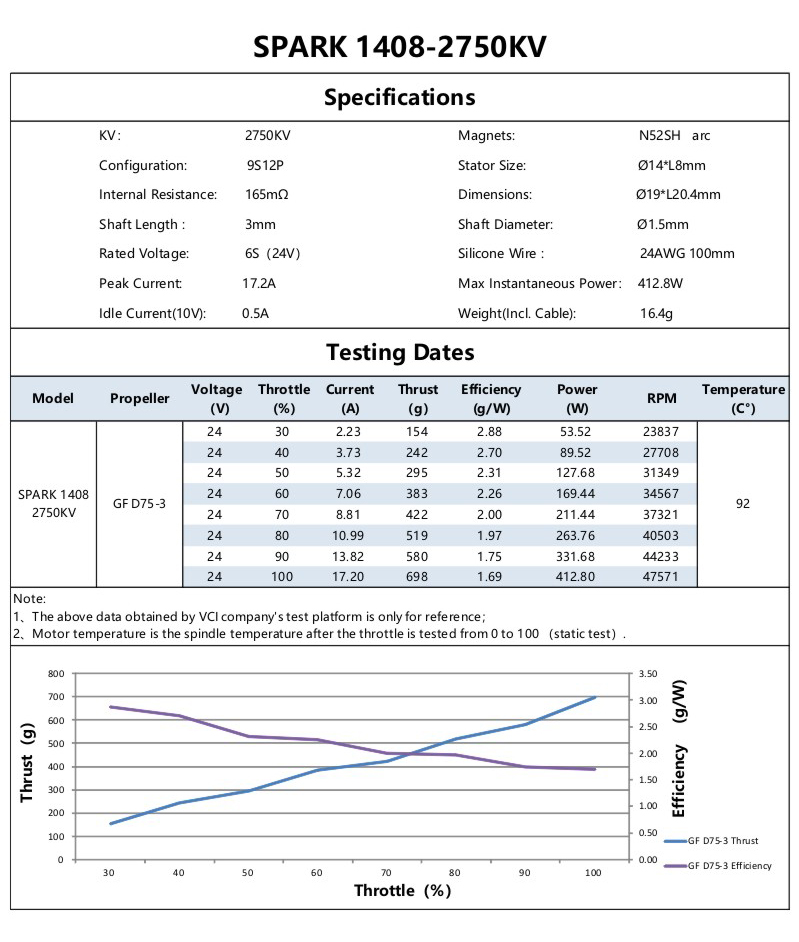

Under 6s voltage, with 3in propellers, the maximum thrust can be output 690g;
Suitable for coil machines and duct machines around 100mm~180mm

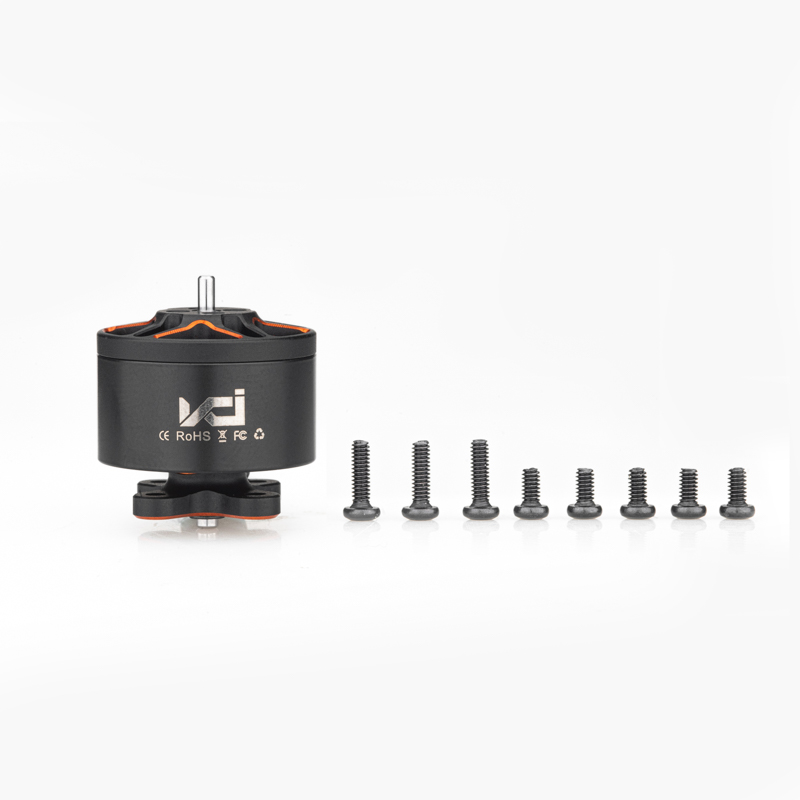

Motor accessories
M2×4 black cross screws 5PCS
M2×7 black cross screws 3PCS
