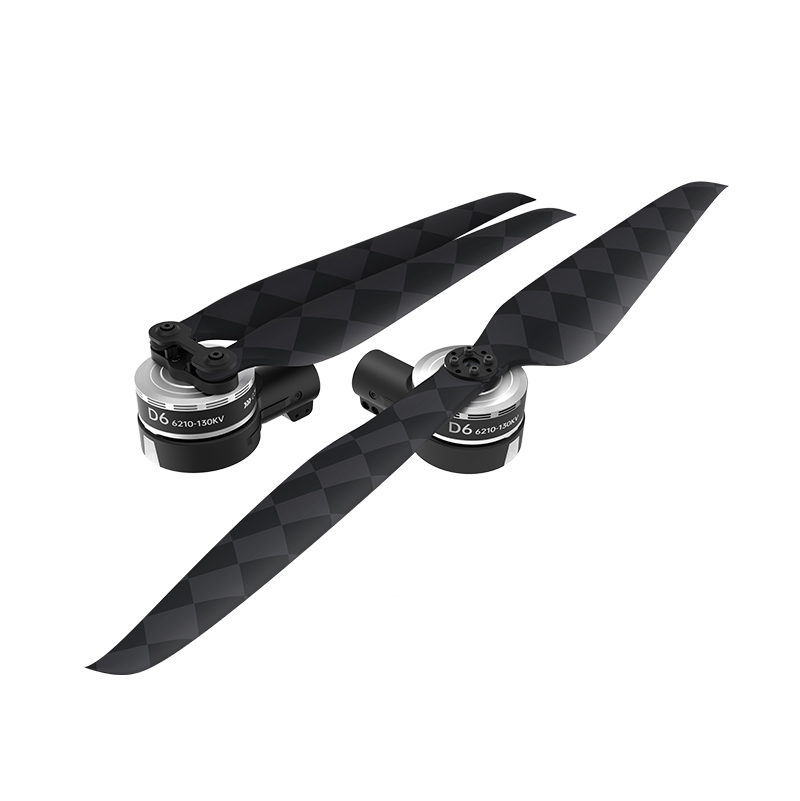

SIYI D6 Enterprise Propulsion System

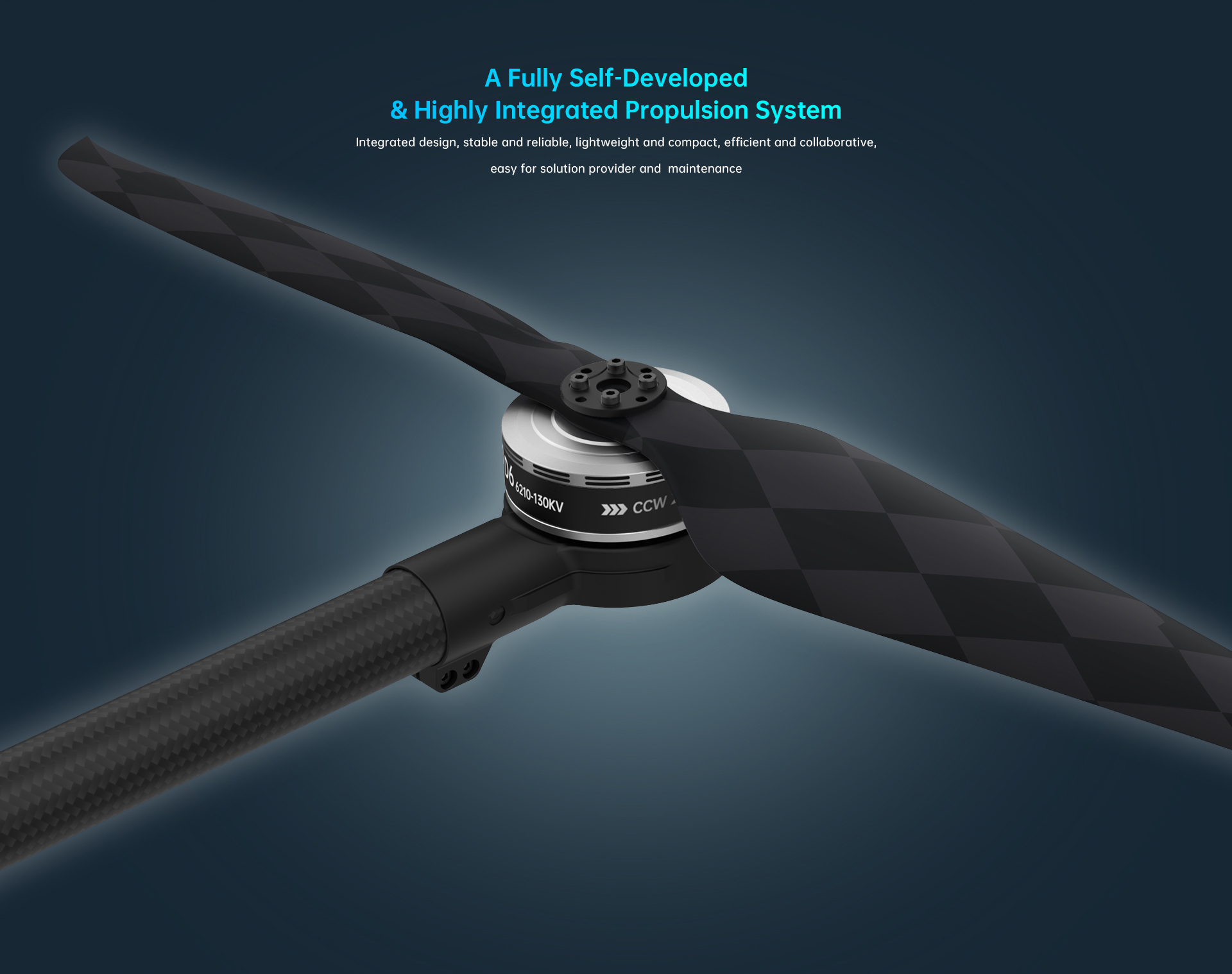

● Fully Self-Developed & Highly Integrated
● Strong Thrust Extraordinary Efficiency
● Both Straight & Foldable Propellers Compatible
● Dual Throttle Redundancy

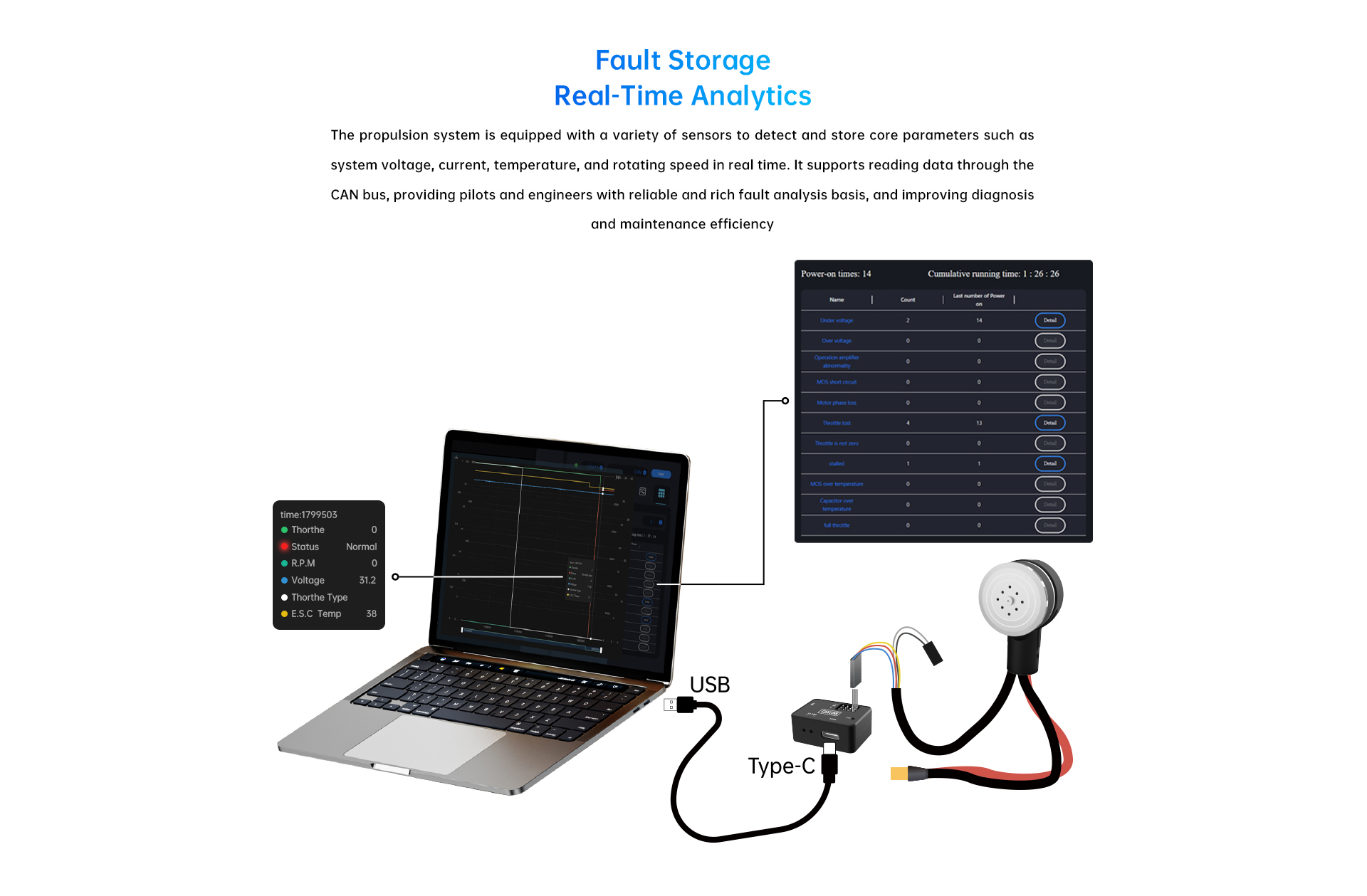

● Fault Storage High Reliability

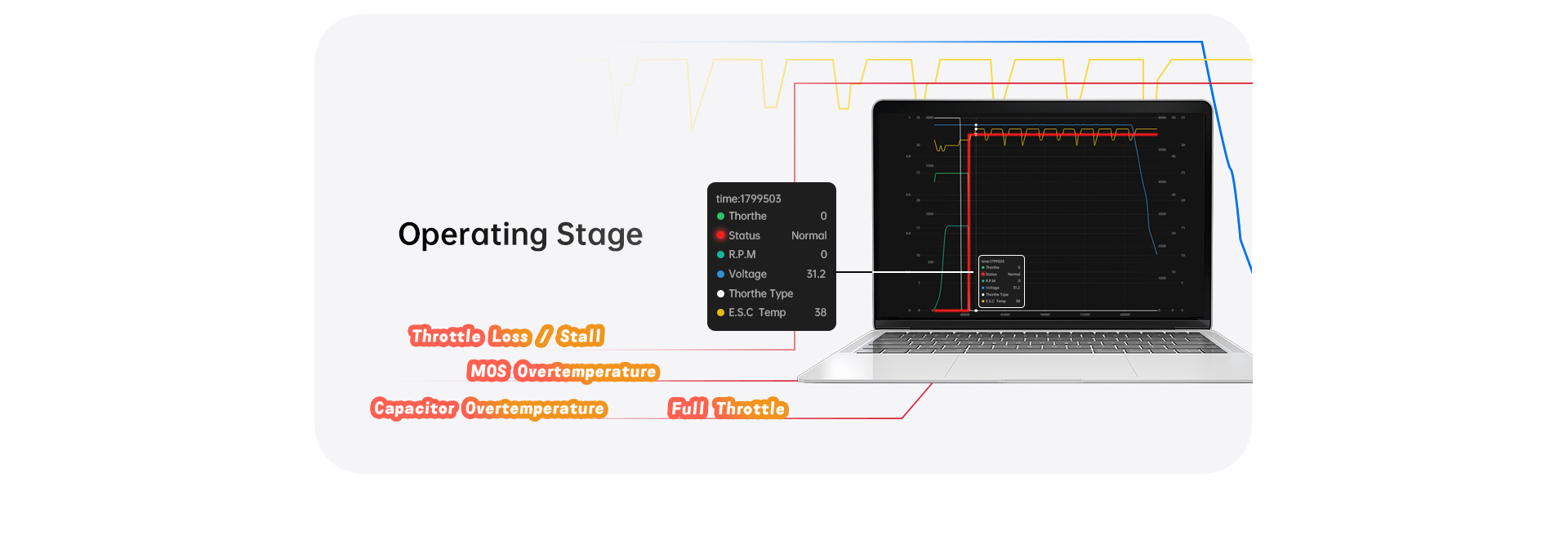

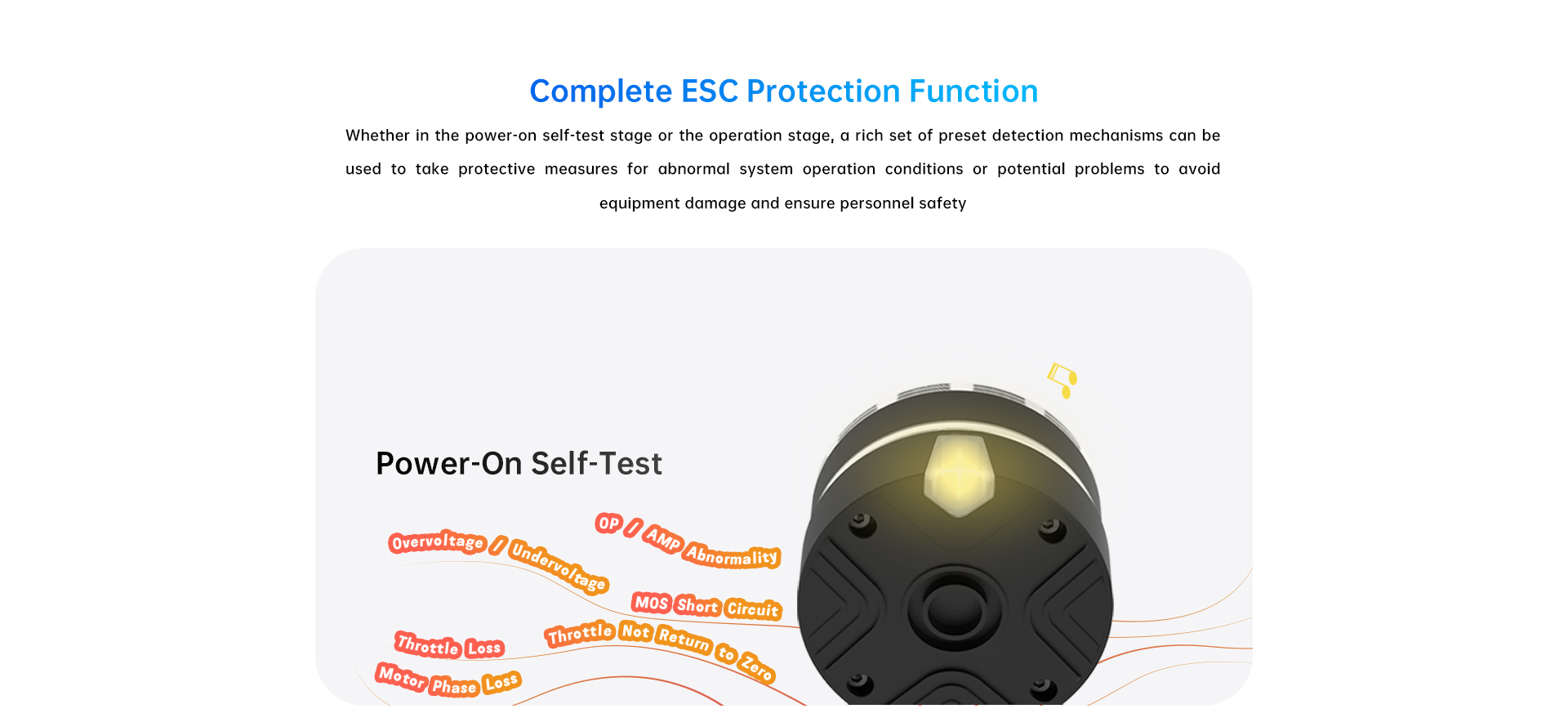

● Complete ESC Protection Function
● Outstanding Design Top-Notch Craftsmanship
● Both Open-Source & Commercial Ecosystem Compatible

SKU: HG0100037 Categories: , Brand:

Dear customer:

Welcome to HobbyGet website. we sincerely invite you to join ourexclusive membership and become our member, You will be able to enjoyour membership price and more services!

Register login

Specs

Overall

Max Thrust6.5 kg / axis
Recommended Take-off Weight2 to 2.5 kg / axis
Recommended Battery12~14S LiPo
Cable LengthPower Cable: 710 mm
Signal Cable: 780 mm
Protection ClassIPX5
Compatible Arm Tube Diameter30 mm
Product Weight429 g

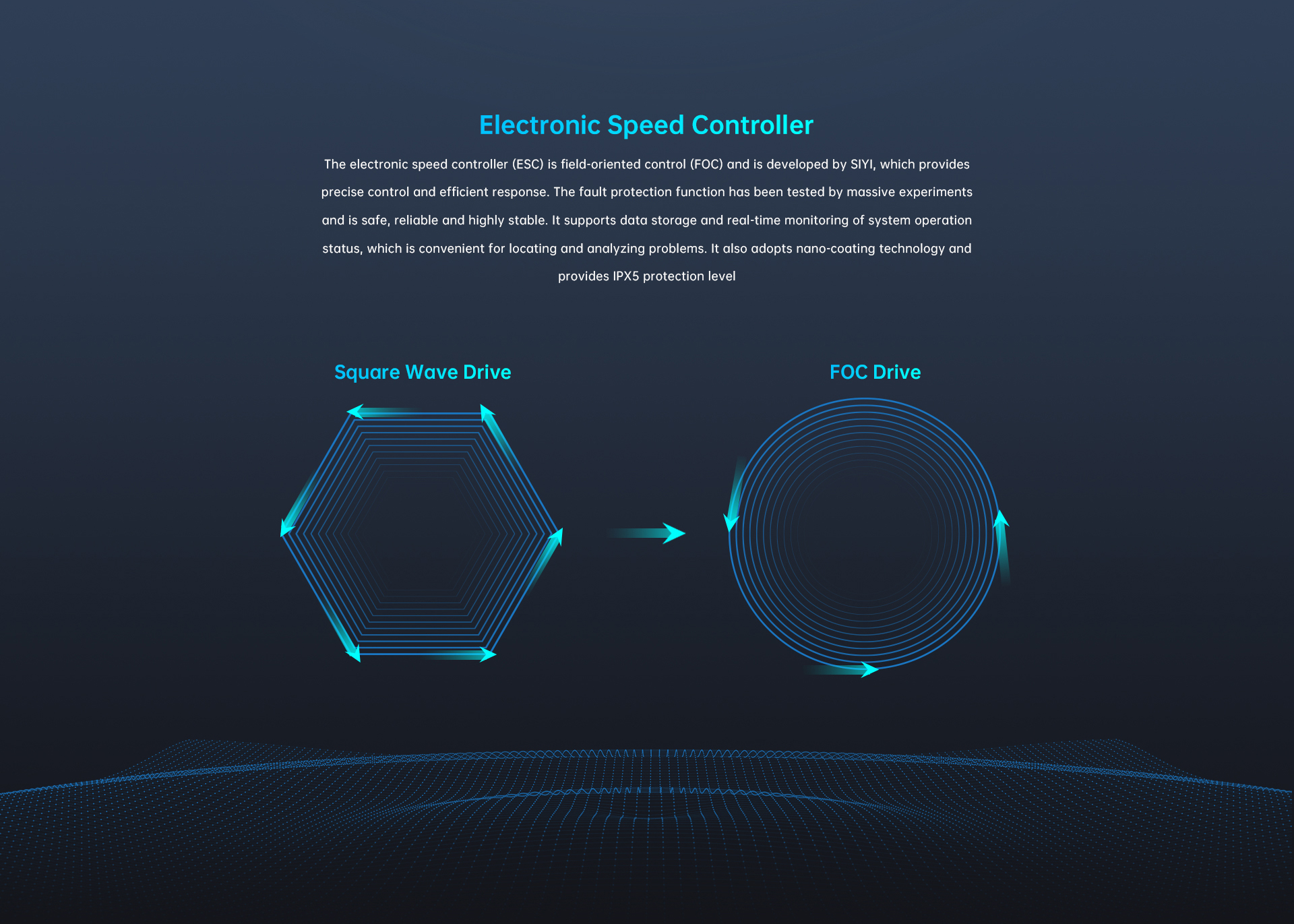

ESC

Model55 A FOC
PWM Voltage Input3.3 / 5 V
PWM Pulse Width1100 ~ 1940 μs
PWM Working Frequency50 ~ 500 Hz
Max Voltage60 V
Continuous Current23 A
Max Current55 A
Communication ProtocolCAN
Firmware UpgradeSupported
Digital ThrottleCAN Throttle

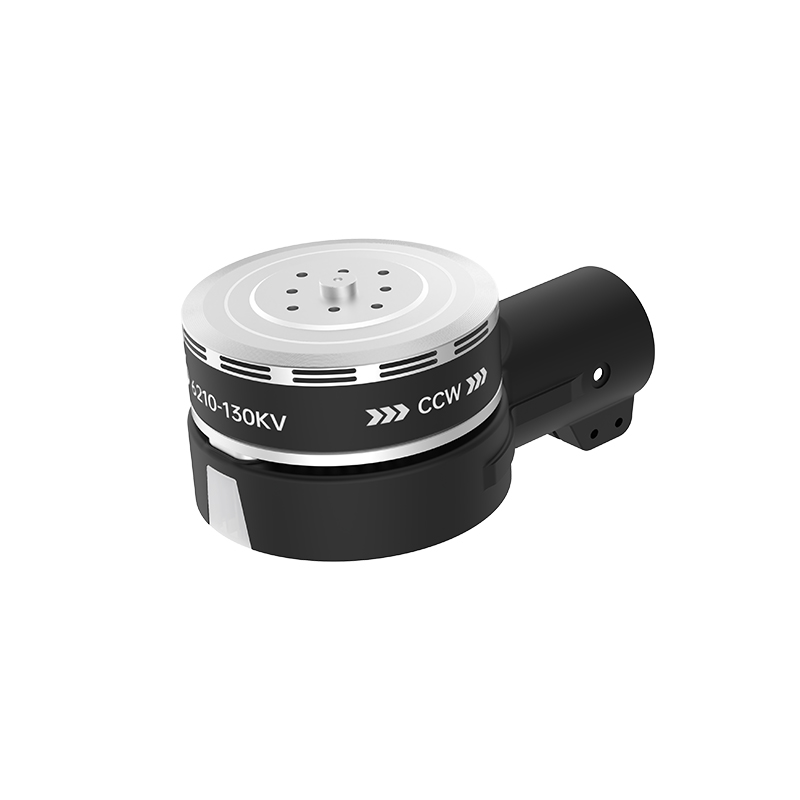

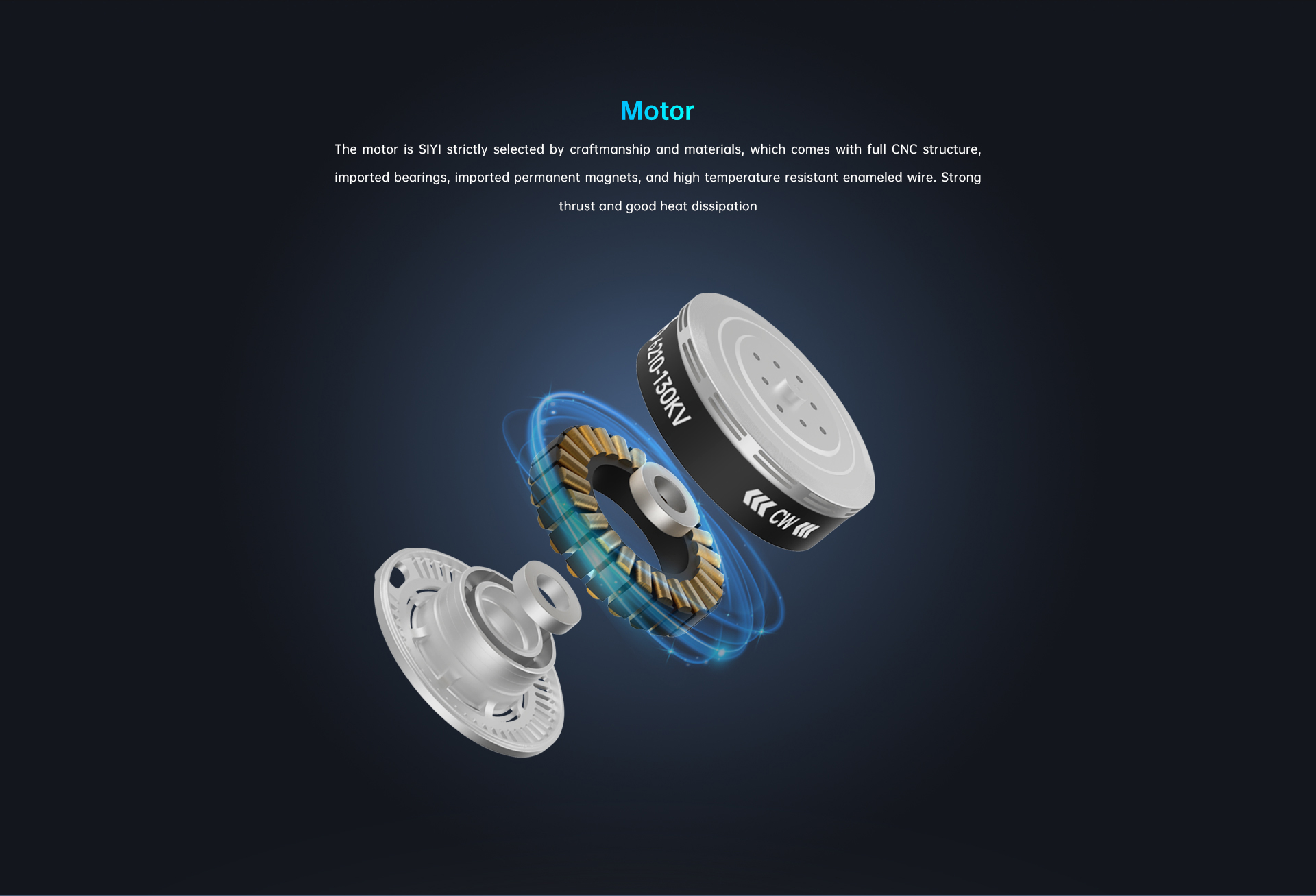

Motor

KV130 KV

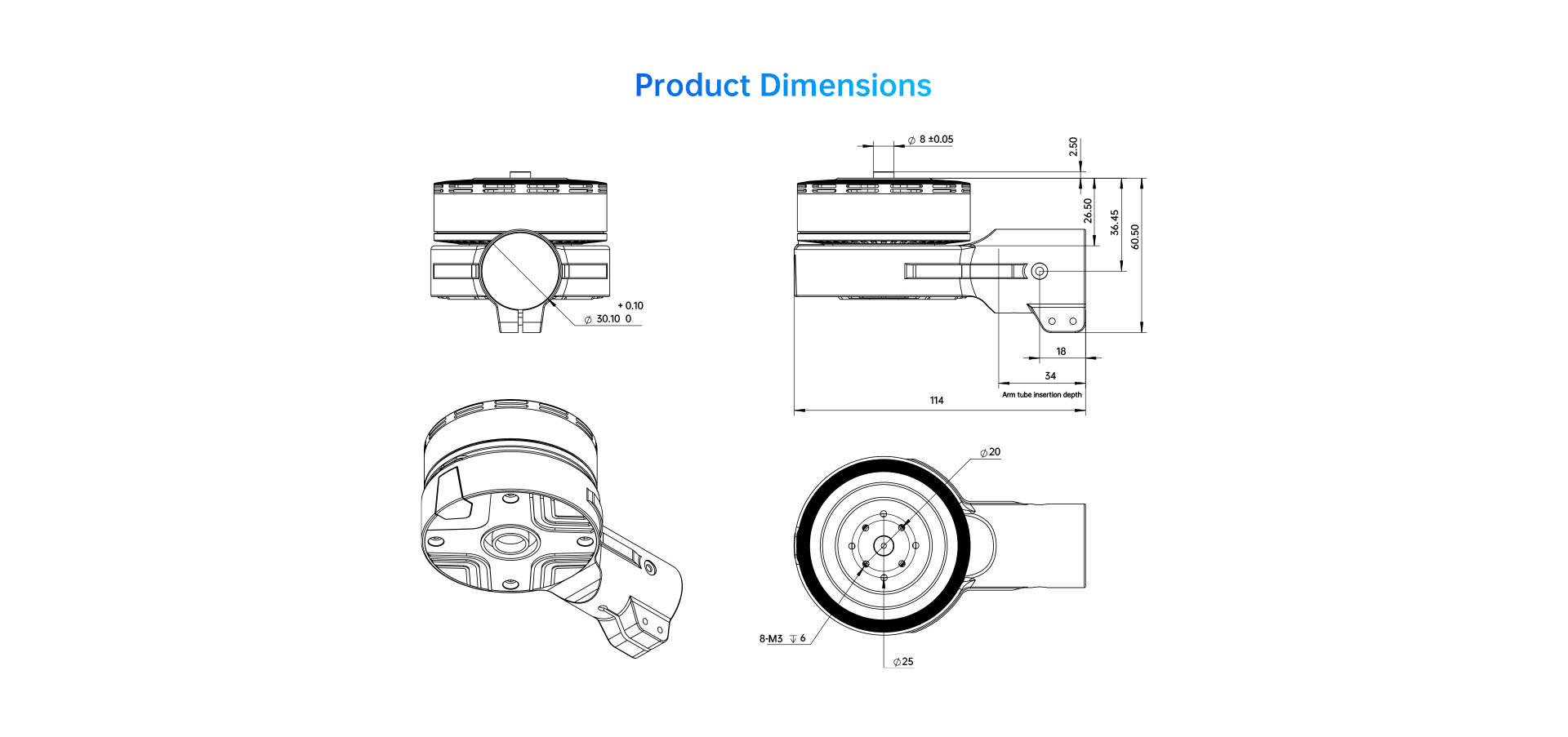

Motor SizeΦ67.7 * 23.1 mm
Poles & Magnets24N28P
Product Weight240 g



Propeller (Straight)

Diameter x Pitch22 x 7.8 Inch
Product Weight35.7 g

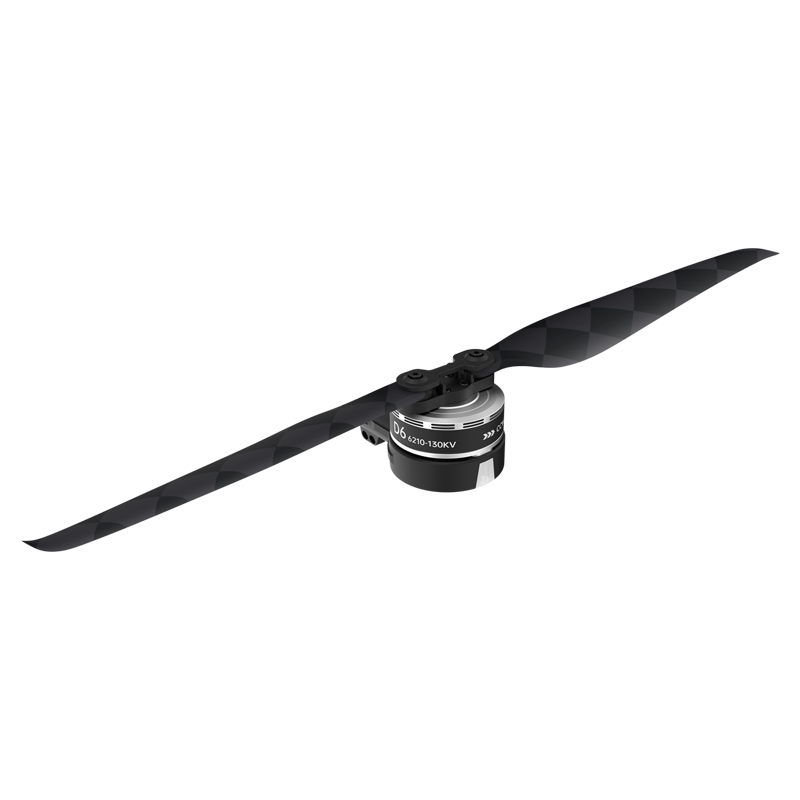

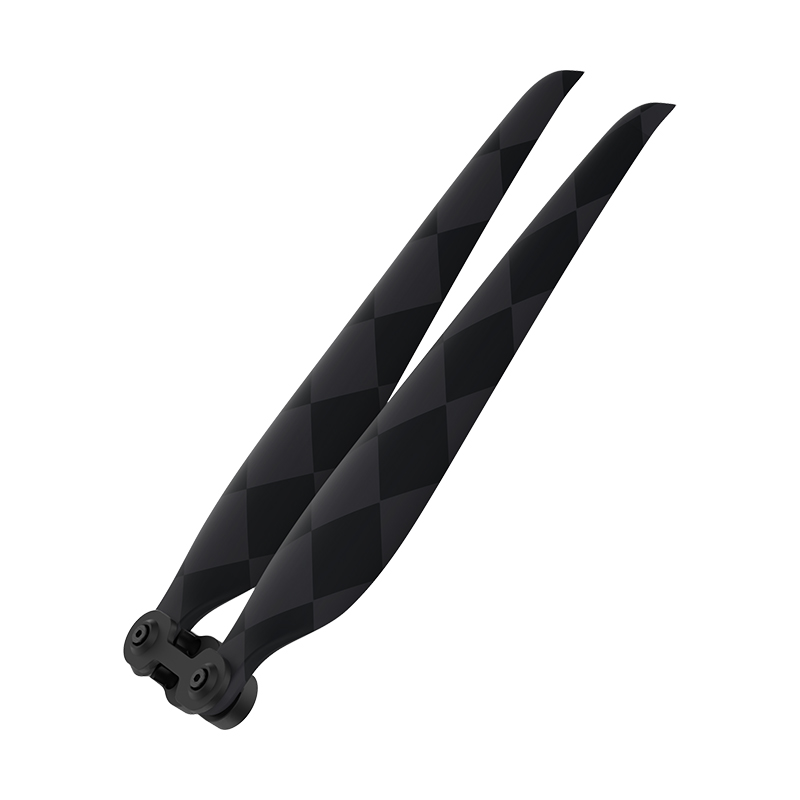

Propeller (Foldable)

Diameter x Pitch22 x 9 Inch
Product Weight61.2 g

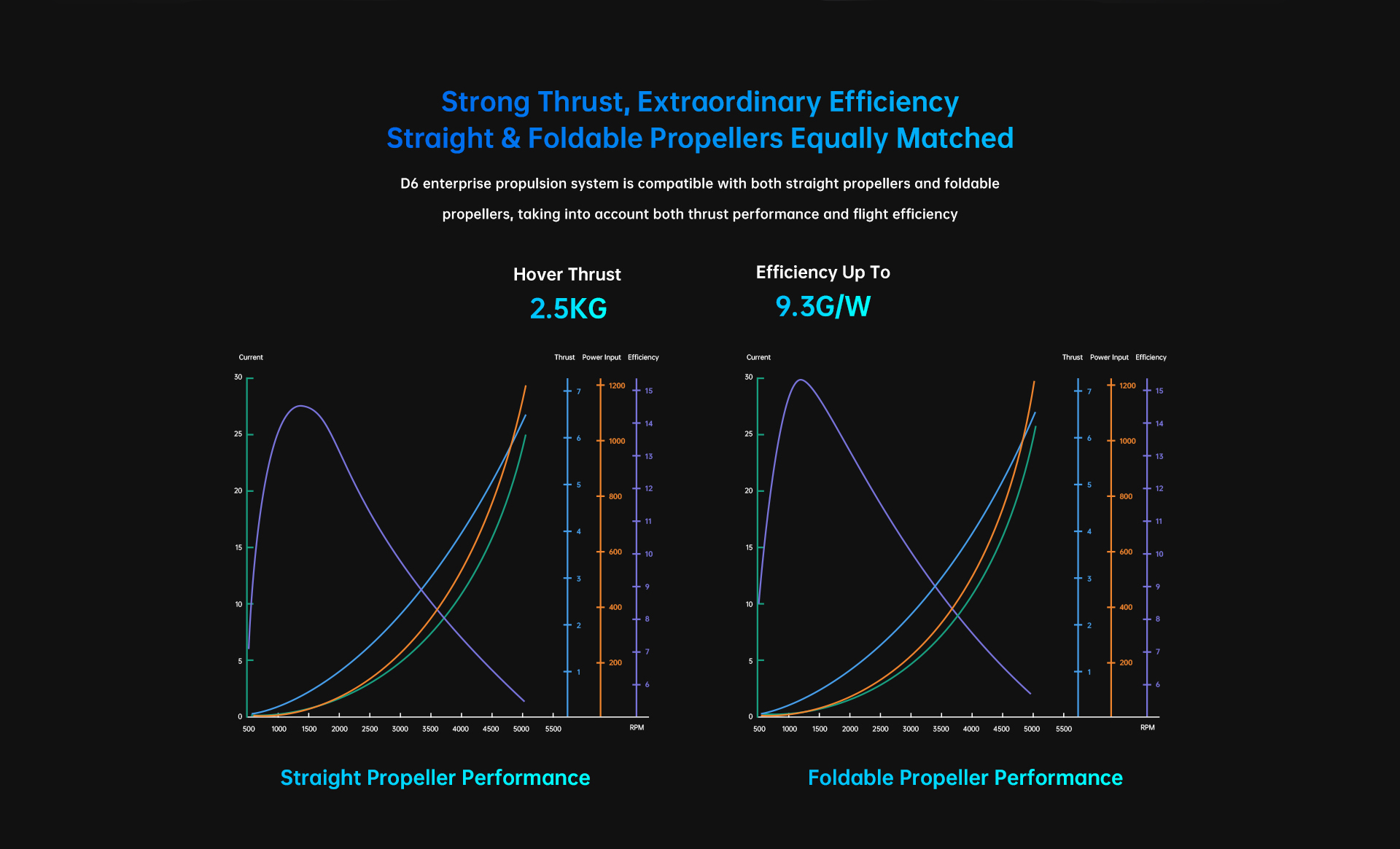

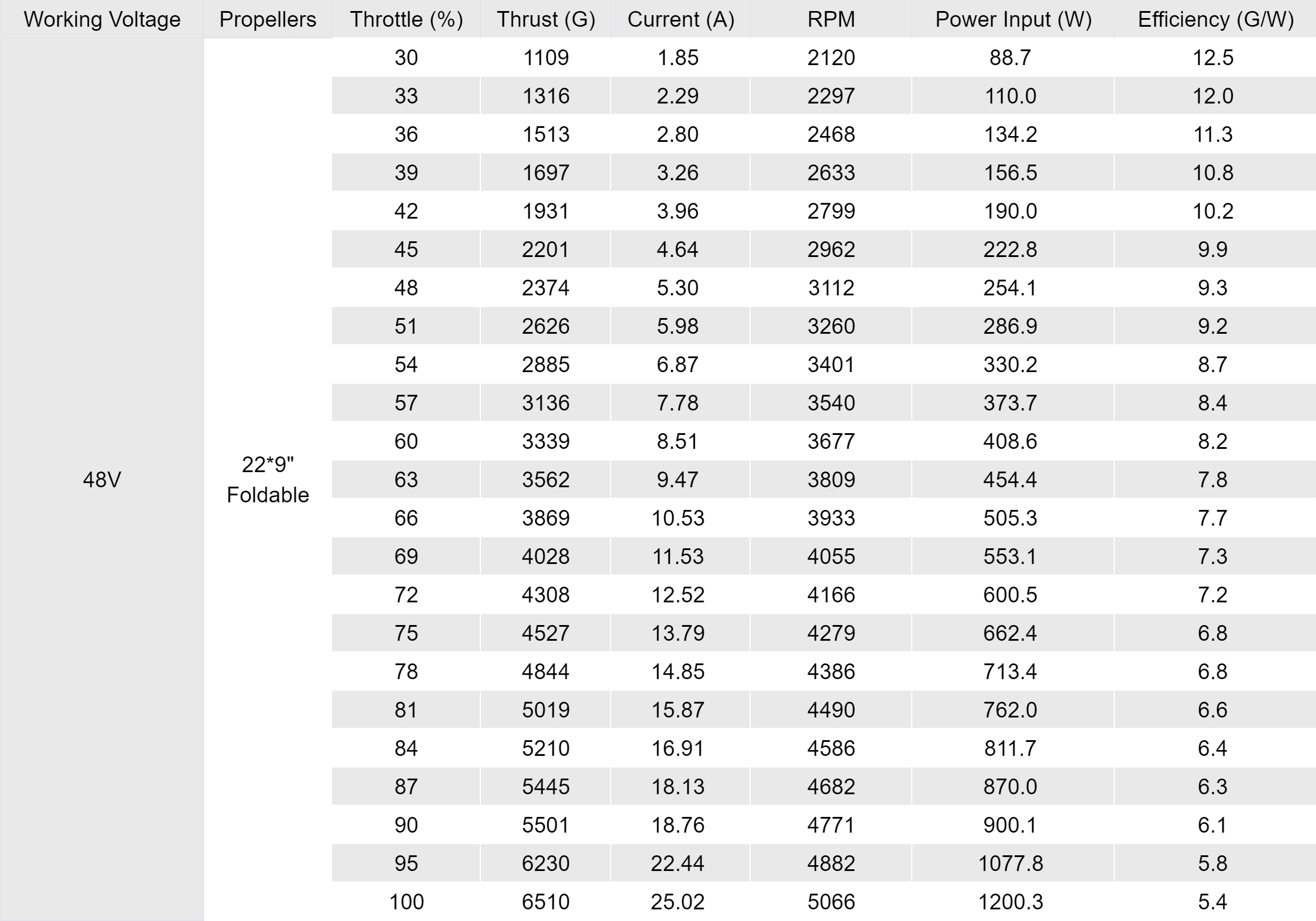

Foldable Propeller Performance
